Part1. 2D plots of RC factor[obj/born] vs. variables for single pi+ production on D2 target.

Calculate RC factor for each eg2 event(reconstructed as single pi+ event) and store it in output file for next step.
Plots are made from a single run #42043

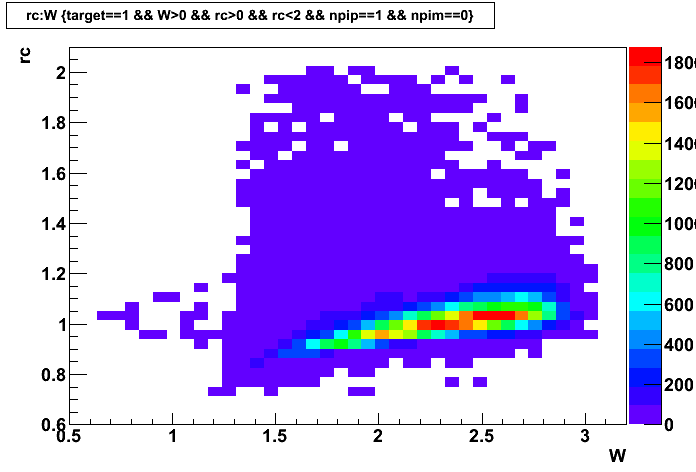

1. RC factor[obj/born] vs. W
1a. no y cut : 1b. y<0.872

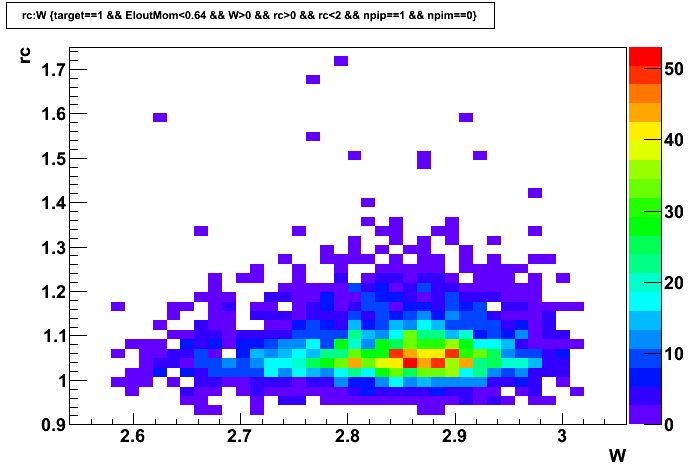

1c. y>0.872




2. RC factor[obj/born] vs. Q2

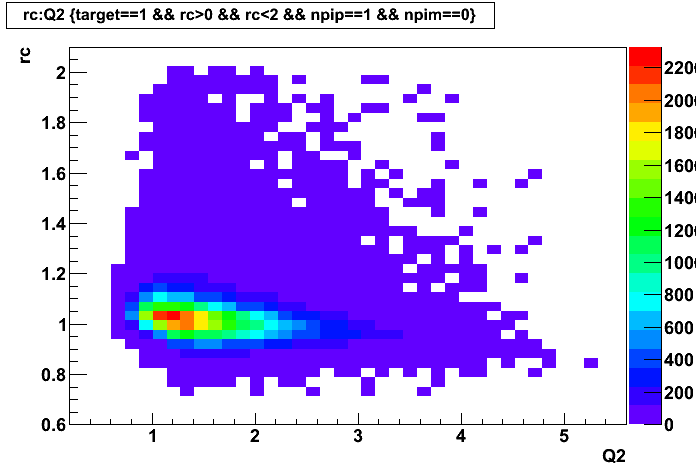

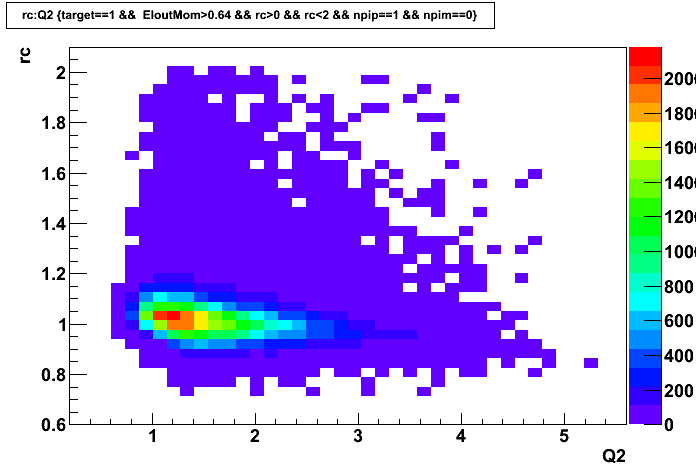

2a. no y cut : 2b. y<0.872

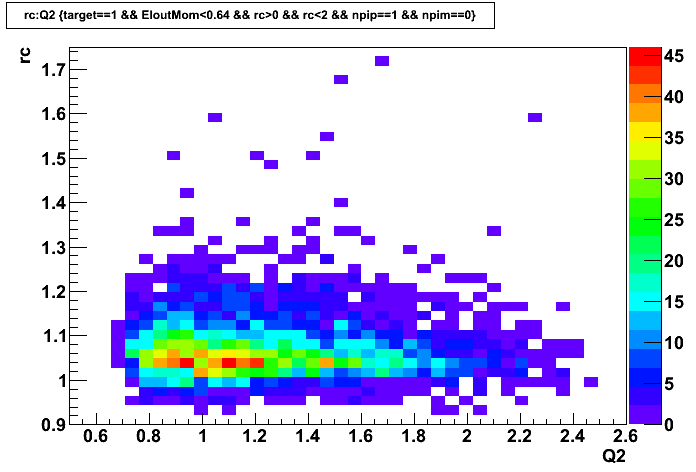

2c. y>0.872




3. RC factor[obj/born] vs. pi momentum

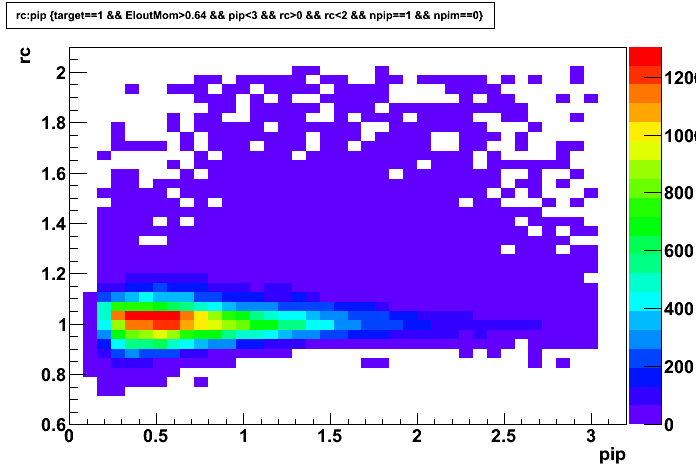

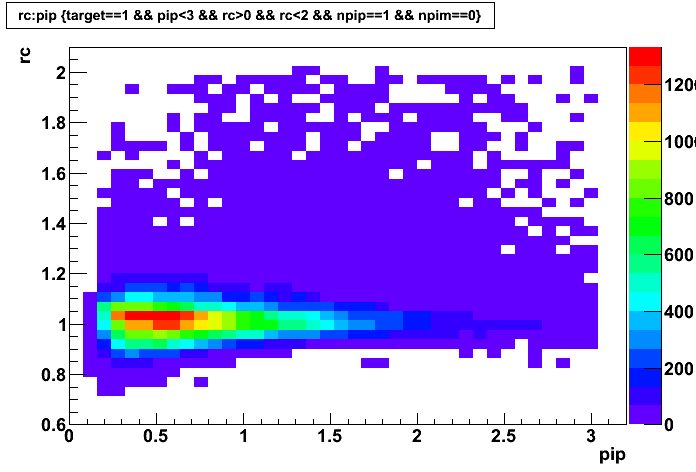

3a. no y cut : 3b. y<0.872
3c. y>0.872




4. RC factor[obj/born] vs. pi angle

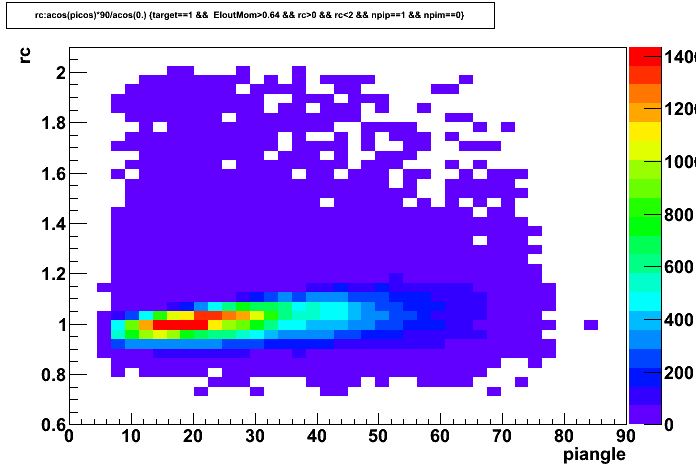

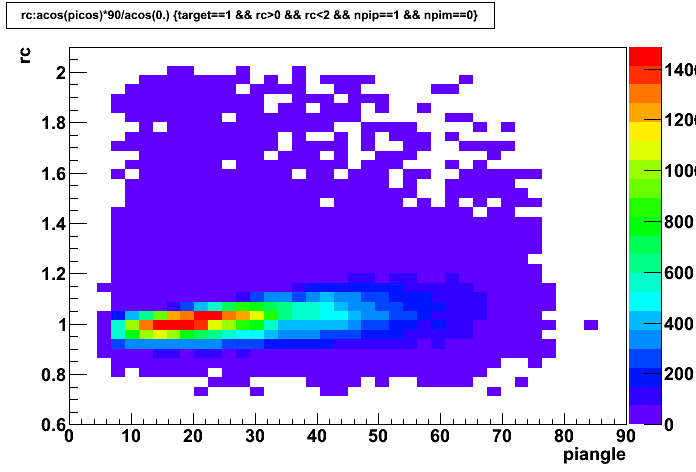

4a. no y cut : 4b. y<0.872
4c. y>0.872






Part2. Acc. corrected distributions for single pi+ with/without RC.

cf. Q2>1.0 and y<0.872 were applied

5. W
5a. C12 with RC : 5b. C12 without RC
5c. D2 with RC : 5d. D2 without RC




6. Q2
6a. C12 with RC : 6b. C12 without RC
6c. D2 with RC : 6d. D2 without RC




7. pi momentum
7a. C12 with RC : 7b. C12 without RC
7c. D2 with RC : 7d. D2 without RC




8. pi angle
8a. C12 with RC : 8b. C12 without RC
8c. D2 with RC : 8d. D2 without RC
