PHY 218: Electricity and Magnetism II
Prof. S. Teitel stte@pas.rochester.edu ---- Spring 2015

Problem Set 6

Due Tuesday, April 7, by 5pm in the homework locker

  • Problem 1 [15 points]

    The longitudinal oscillations of the electric field in a conductor at frequency ω = ωp can be viewed physically in terms of the following simple model:

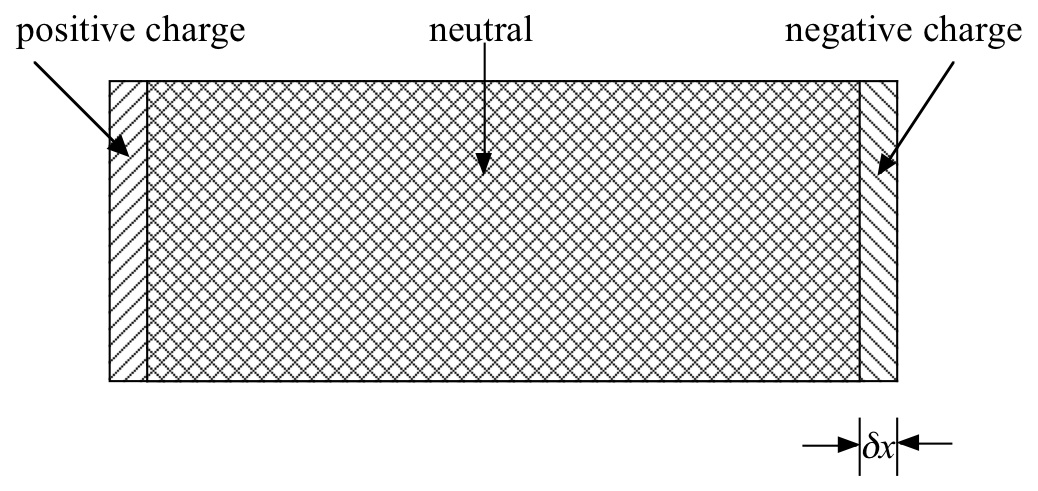

    Consider a slab of conductor in which the charges consist of a fixed uniform background density of positive ionic charge, +eN, and an equal, but moveable, uniform density of negative electonic charge, −eN. When the negative charge density sits exactly on top of the positive charge density the system is neutral everywhere and the electric field inside the conductor is E = 0. Now displace the center of mass of the negative charge density by an amount δx, as shown in the sketch below.

    a) What surface charge density σ builds up on the ends of the conductor?

    b) What is the E field created inside the conductor by this σ? (hint: it is just like a parallel plate capacitor) Express E as a function of δx and the density of electrons N.

    c) Assuming that the electrons move together as a rigid body, what is the total force on the electrons due to the electric field E of part (b)? Write Newton's equation of motion for the center of mass of the electrons and show that the solution is an oscillation of δx with frequency ωp, where ωp is the plasma frequency discussed in lecture.

    This oscillation in δx results in an oscillation in the uniform E of part (b), as well an an oscillation in the surface charge σ. This is called the plasma oscillation.

  • Problem 2 [15 points]

    Using our results from lecture for the reflection coefficients:

    R = | μbkIz−μakTz
    |2,   R|| = | εbkIz−εakTz

    and the transmitted amplitudes

    ET⊥ = bkIz
    EI⊥,   HT|| = bkIz

    and defining the transmission coefficients by

    T = |<ST>⋅n|

    where <S> = (1/μ)<E×B> = <E×H> is the time averaged Poynting vector in the corresponding material, and n is the unit normal to the interface, show that

    T + R = 1 and T|| + R|| = 1.
