Jan 04 2004
Square lattices with
E
= (0.1, 0) at T = 0.004
The square lattices with the sizes of 200*75, 400*75, 400*150 and 500*60 have gone through Albert's algorithm with
E
=(0.1, 0) at T=0.004. The frustration values are all 1/25. The initial configurations are randomly given by the program.
3D plots of structure function
2D intensity plot of structure function

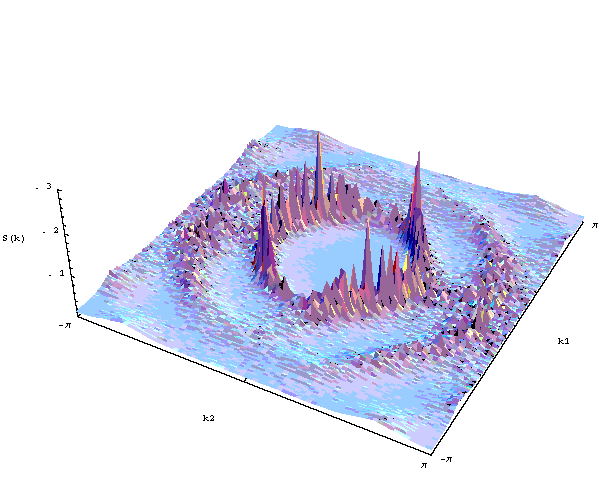

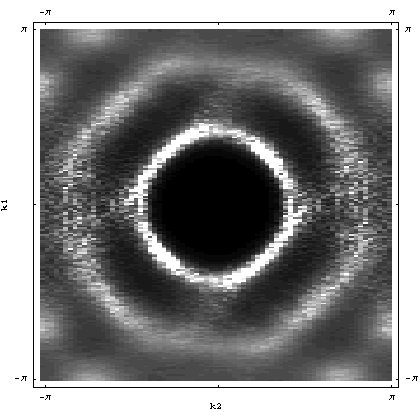

200*75 with 10000 passes

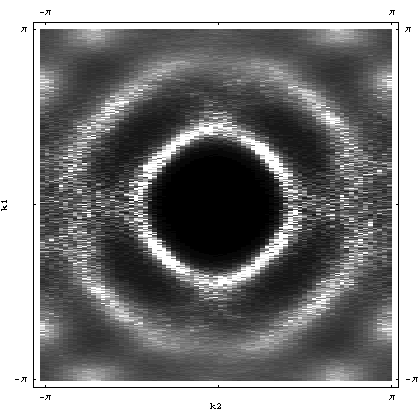

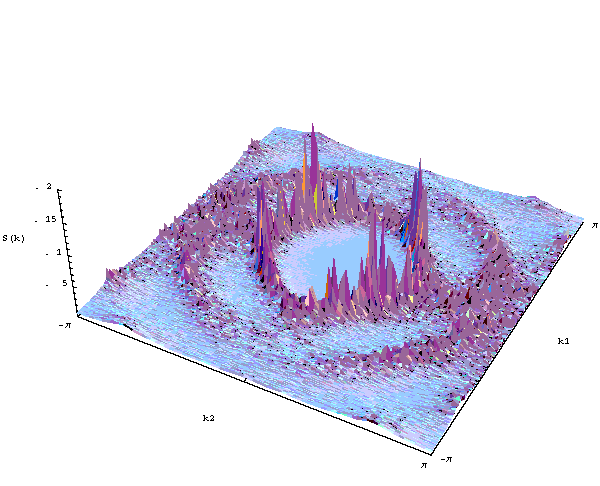

400*75 with 6000 passes

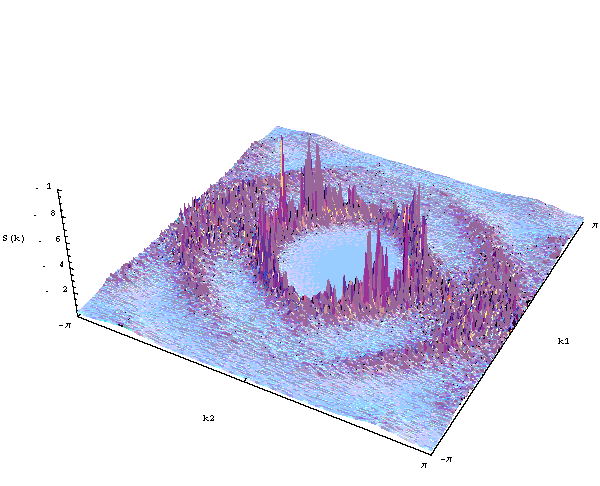

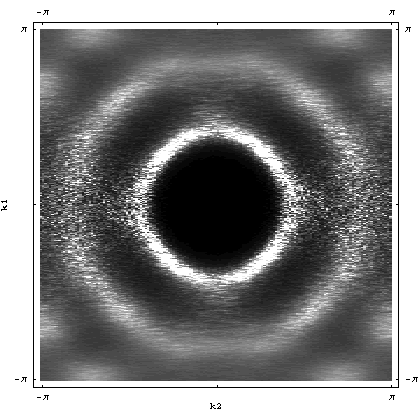

400*150 with 2000 passes

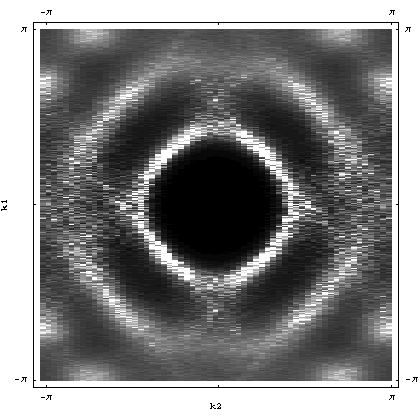

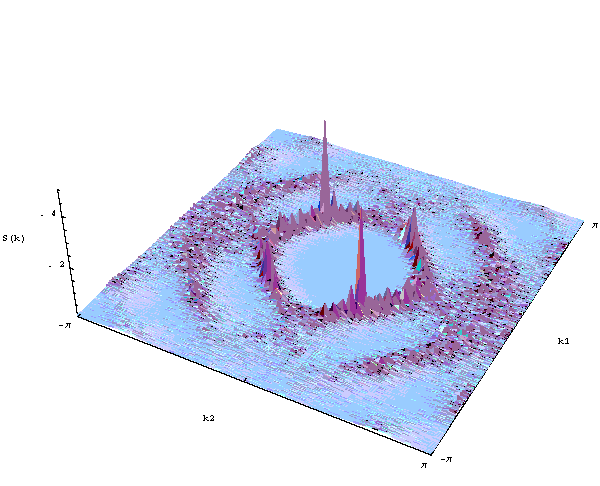

500*60 with 6000 passes
