Jan 15 2004
S_100_75_300 E=(0.1,0) at T=0.001,0.002 and 0.003
Two ground states
Two possible grounds states are with the same energy barrier to move
one particle one step along x or y direction, both with
E(dx=1) = 0.06271, E(dy=1) = 0.06252.

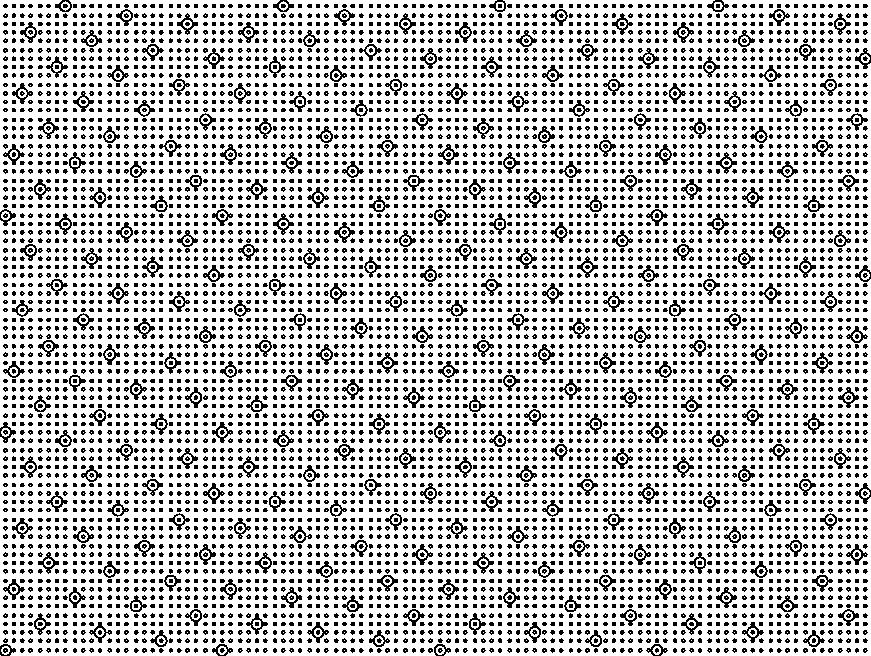

| Ground state 1 |

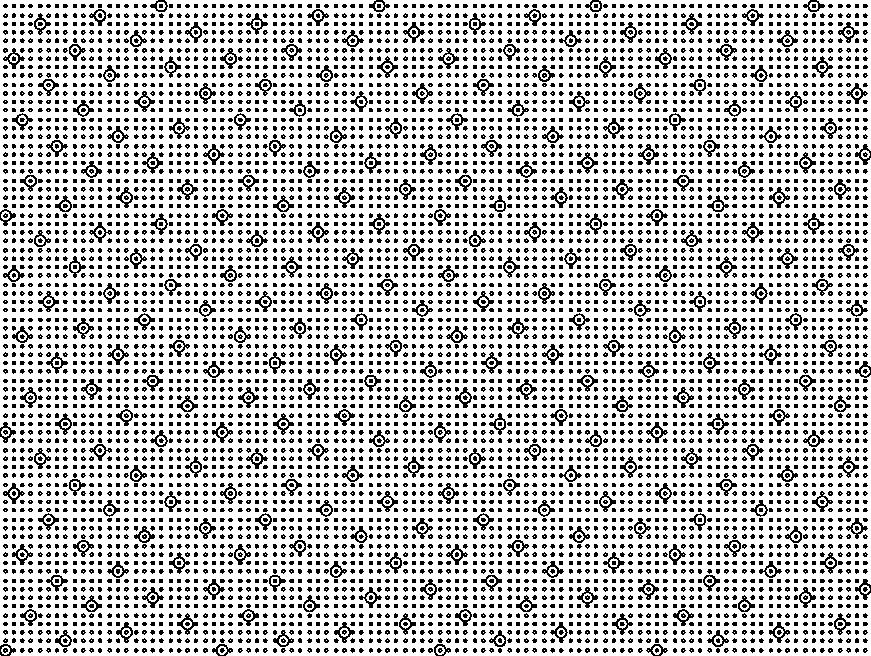

Ground state 2 |
 |
 |
The same calculations are performed on S_50_50_100 and we got
E(dx=1) = E(dy=1) = 0.06218.
Structure function at T=0.001, 0.002 and 0.003
The ground state 1 with external field E=0.1 has been run at
T=0.001, 0.002 and 0.003 respectively. There were 10100 passes with
the first 100 discarded. Below are their structure functions. The
peak values are normalized so that the autocorrelation peak (not
shown) is Nc.
| T |
Max peak height |
3D structure funciton |
2D density plot of structure funciton |

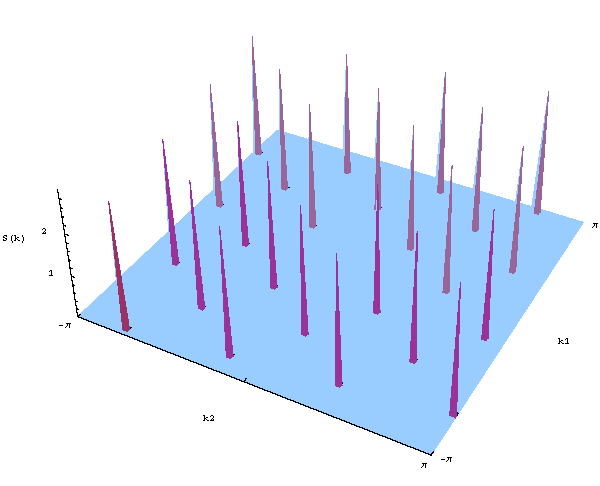

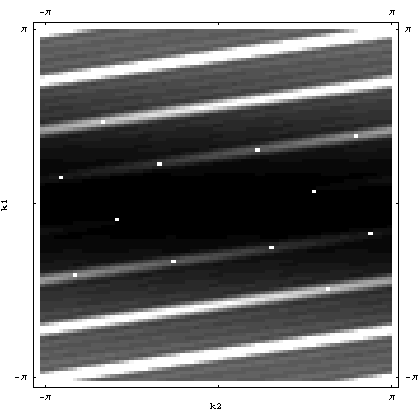

| 0.001 |
299.999 |
 |
 |
| 0.002 |
299.921 |
 |
 |

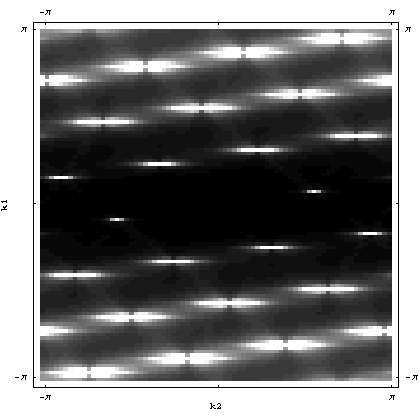

| 0.003 |
299.246 |
 |
 |

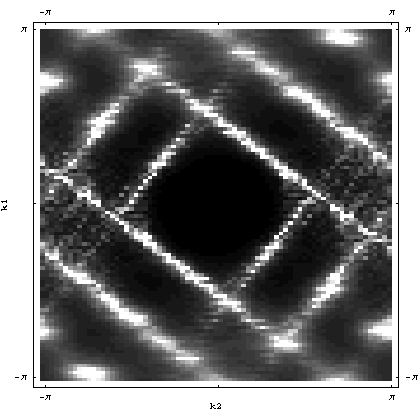

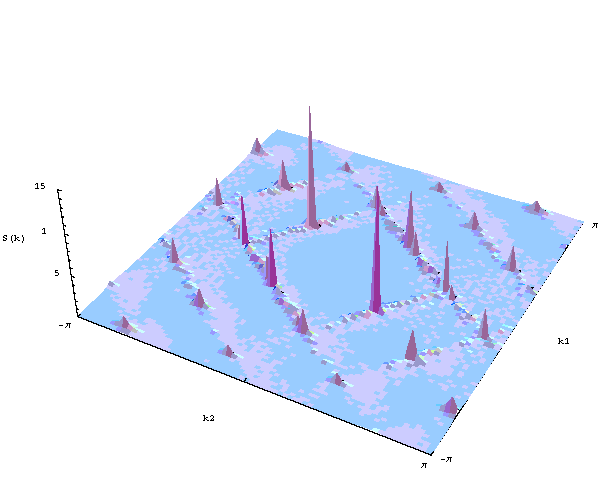

| 0.004 |
148.093 |
 |
 |

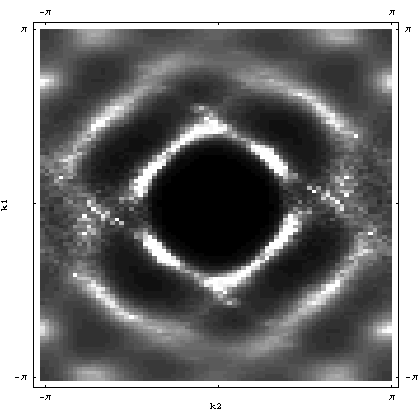

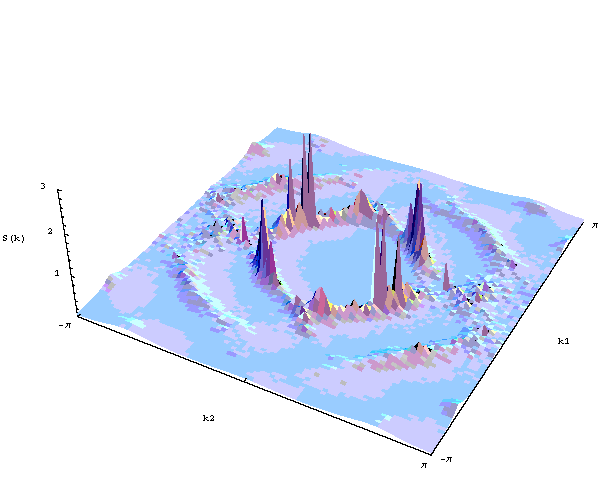

| 0.005 |
23.2657 |
 |
 |
