Succesive runs of S_100_75_300 at T=0.004 from a random state
The simulation started from a random state with E=(0.1,0)
at T=0.004. There were totally 10100 passes for the first run, and 50100
for the second run, and 100100 passes for the third run,
all with the first
100 passes discarded. The later runs used the last configuration of the
previous run as initial configuration.
Run
Passes
Max peak height

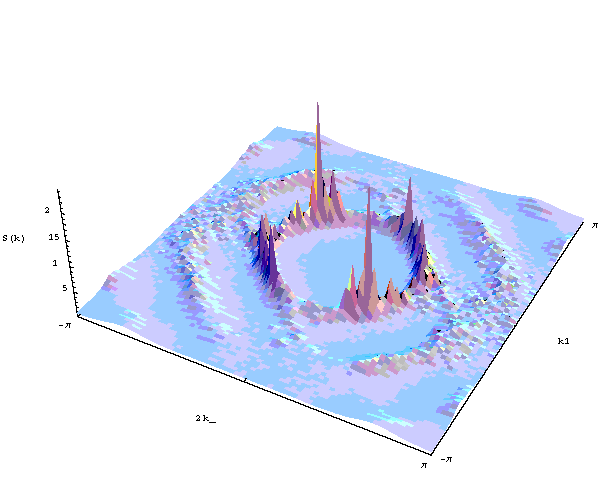

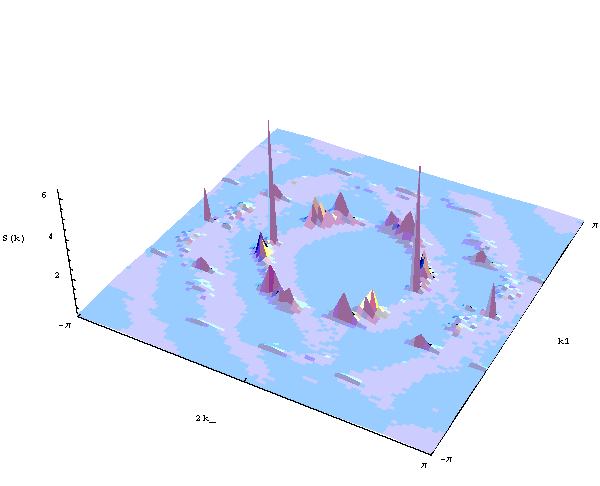

3D structure function

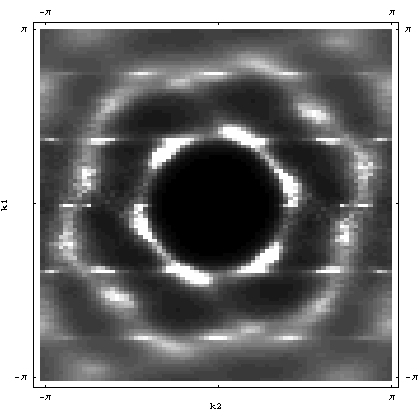

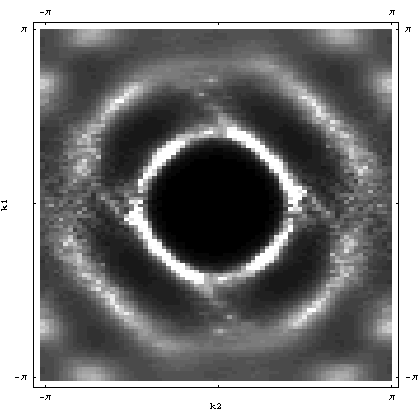

Intensity structure function

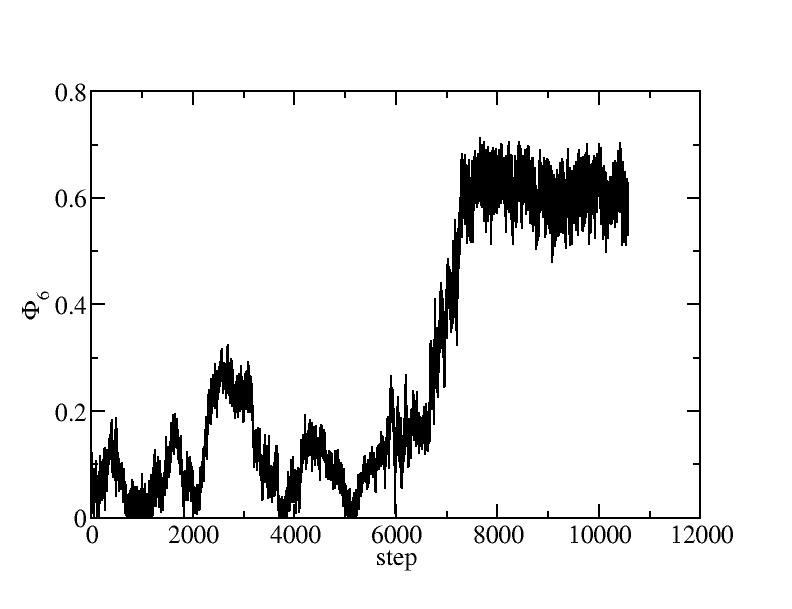

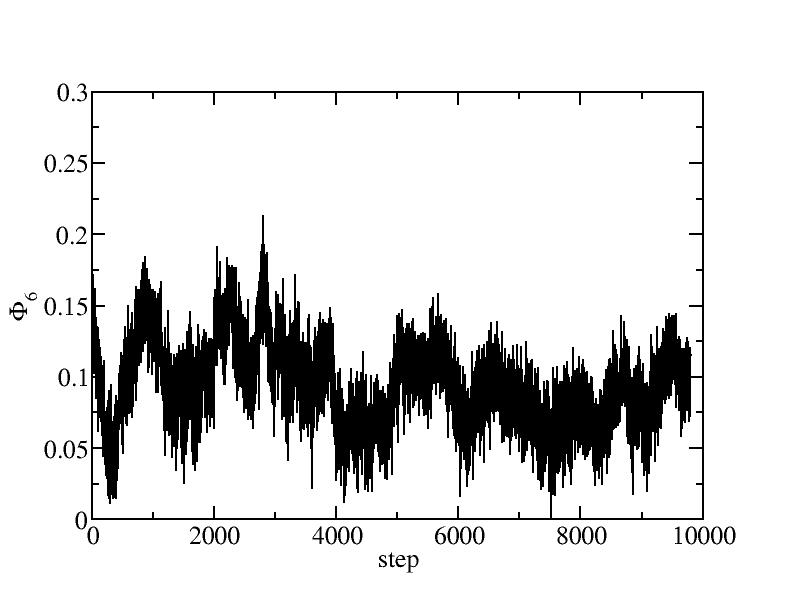

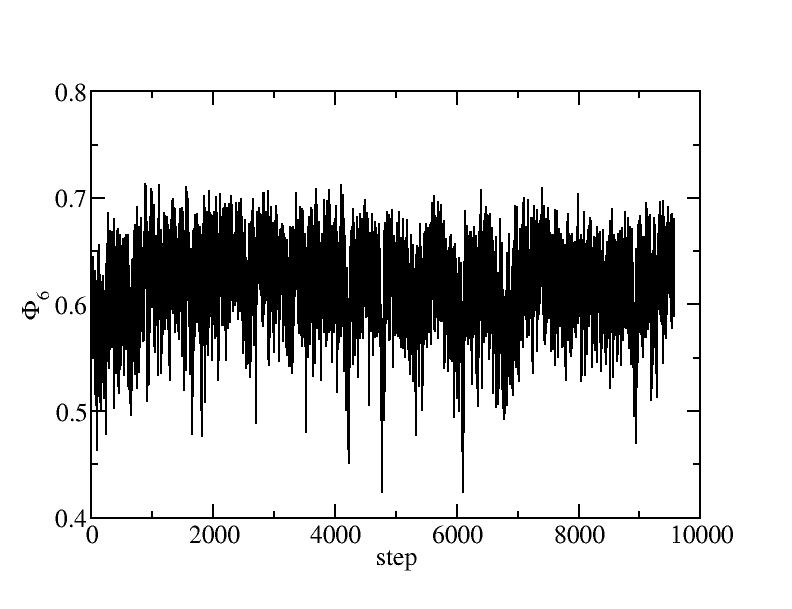

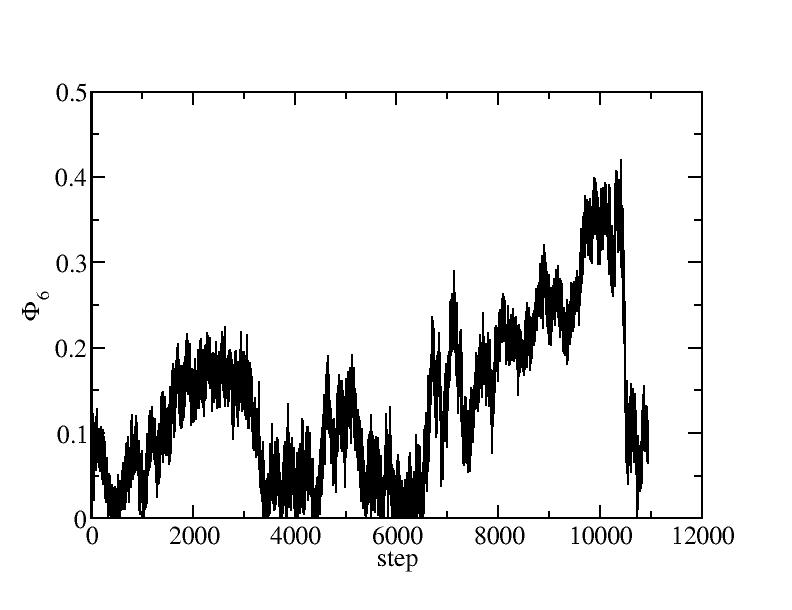

Phi6

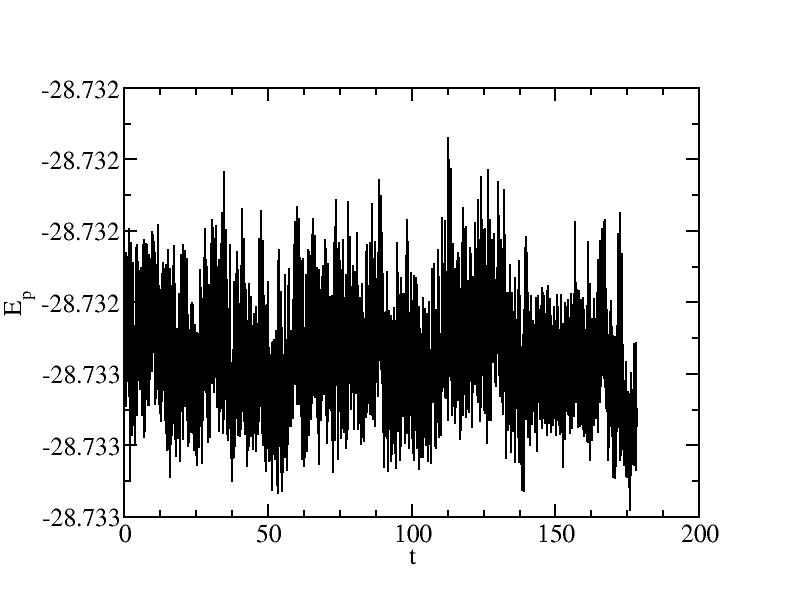

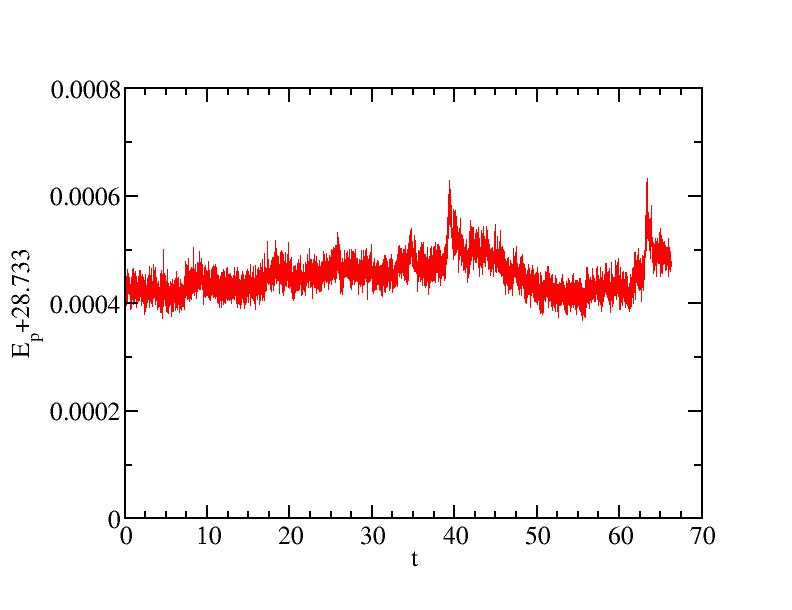

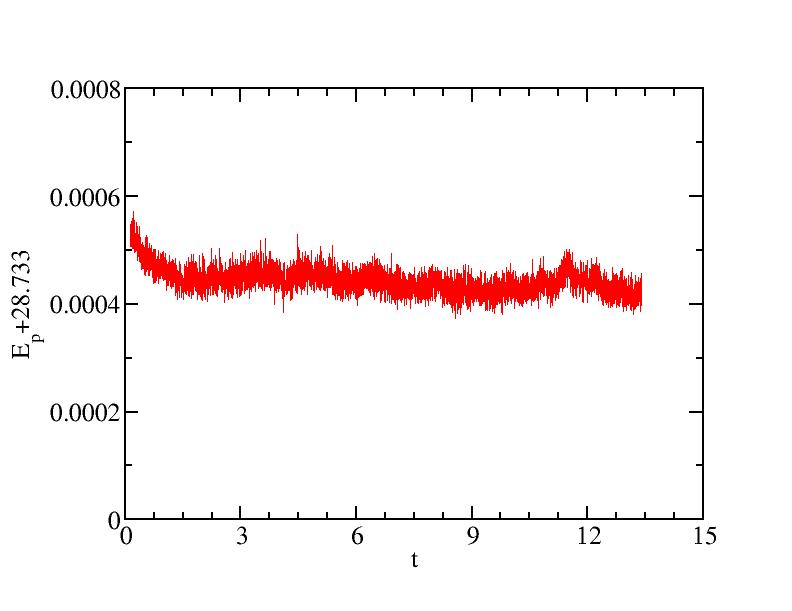

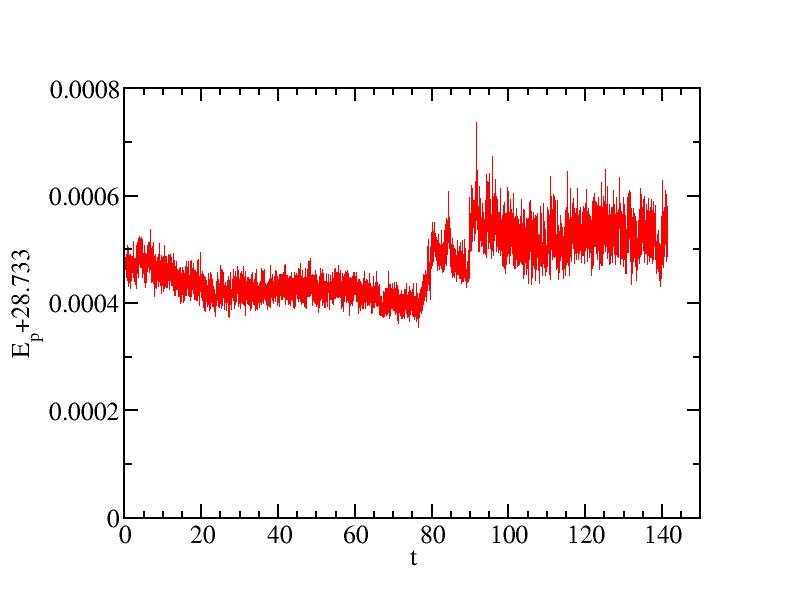

Potential energy
First
10^4
20.9207
Second
5*10^4
24.284
Third
10^5
64.1418
Fourth
10^5
190.18

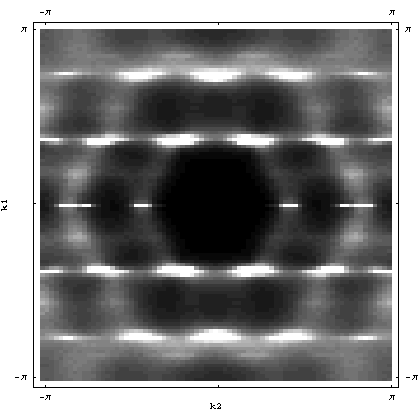

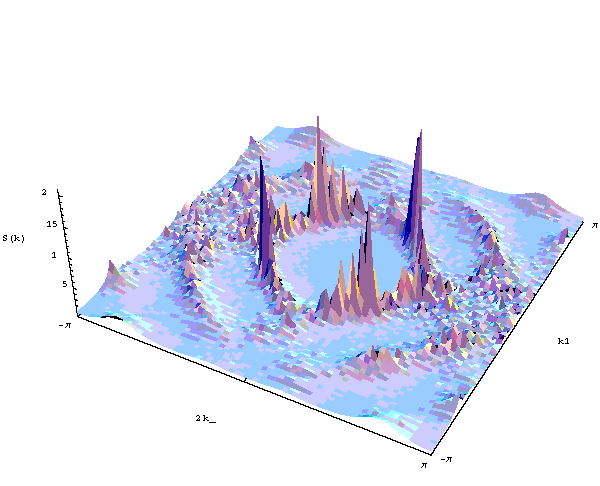

The stable state at the end of the third run
The configurations from 8001st step to the end of third run was extracted out
to calculation the structure function of this stable state. The
structure function is shown below. The max peak height is 193.904.
