Feb 21 2004
Equilibration of S_100_100_400, S_150_150_900, and S_200_200_1600
at T=0.006 with E=(0.1,0)
initialized from the duplication of S_50_50_100
One of the equilibrated configurations of S_50_50_100 has been duplicated
to fill the lattices of S_100_100_400, S_150_150_900, and S_200_200_1600.
This initial configurations then ran by Albert's algorithm to see if it
equilibrates.
The results of S_50_50_100 are on
Feb. 19 2004.
Size |
Run |
Passes |
Max peak height |

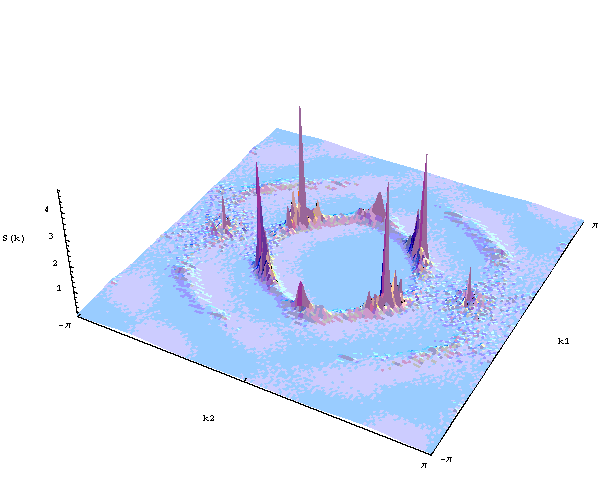

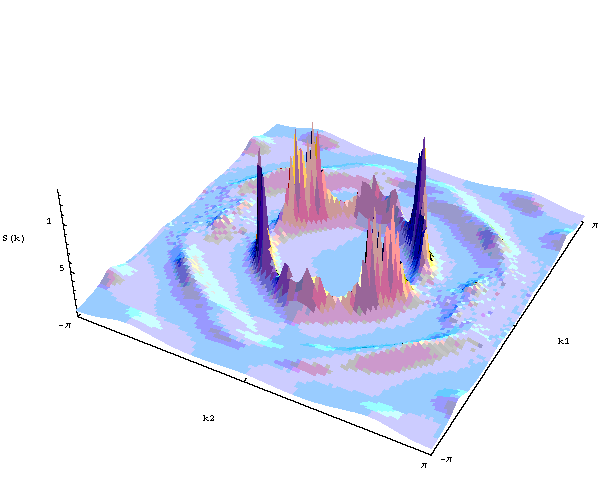

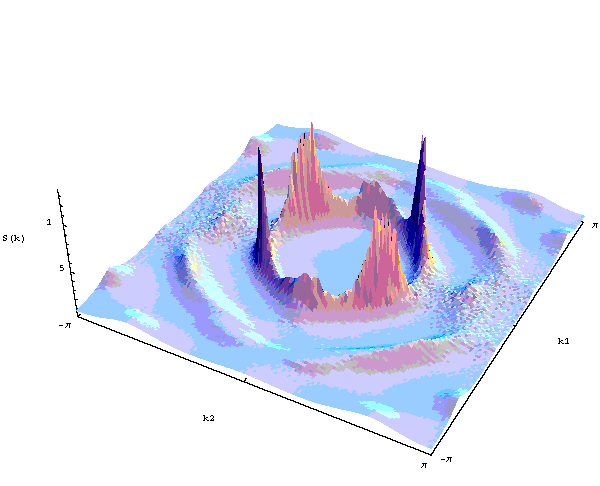

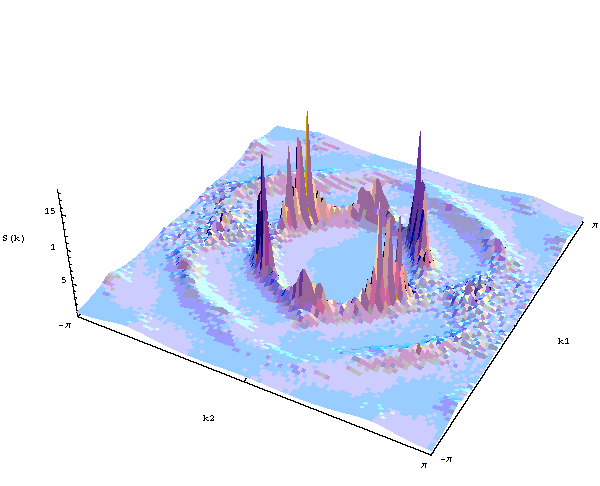

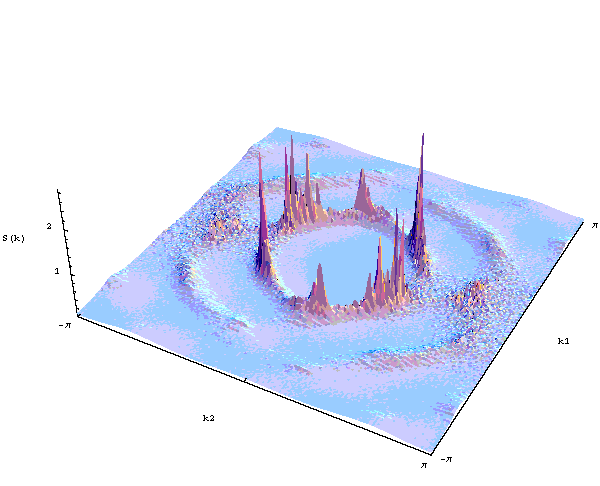

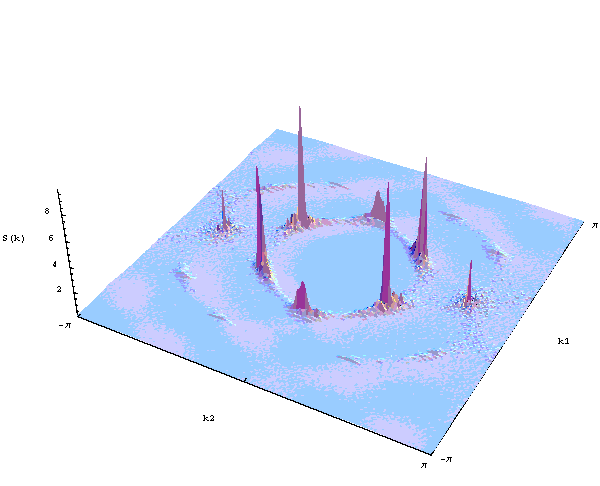

3D structure function |

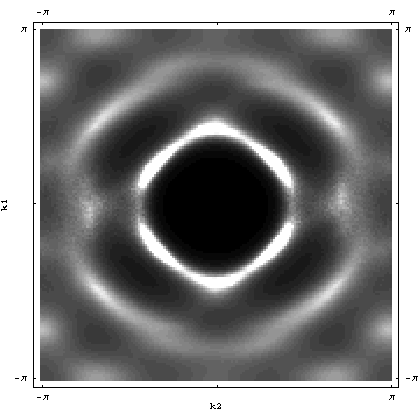

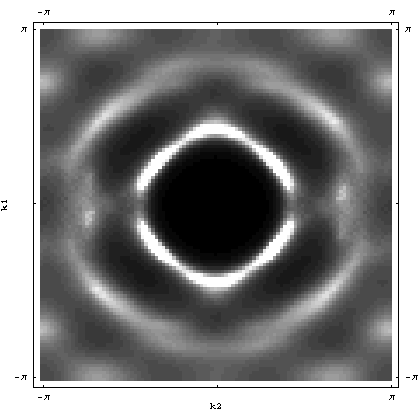

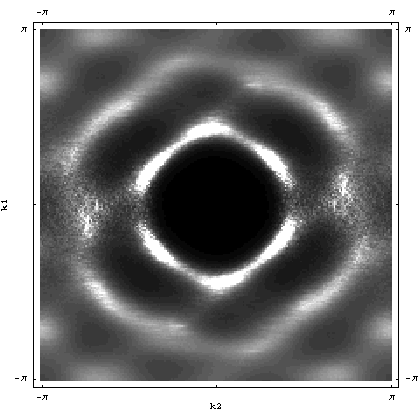

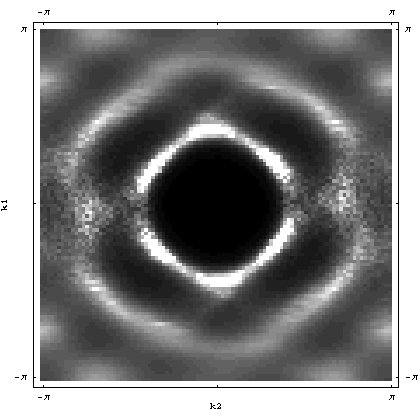

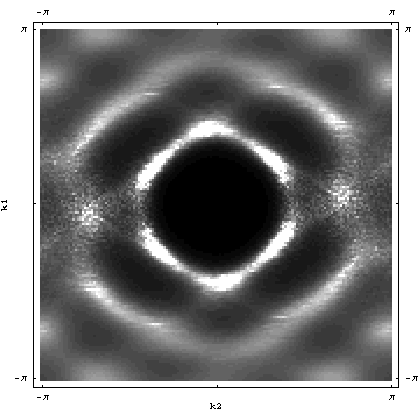

Intensity structure function |

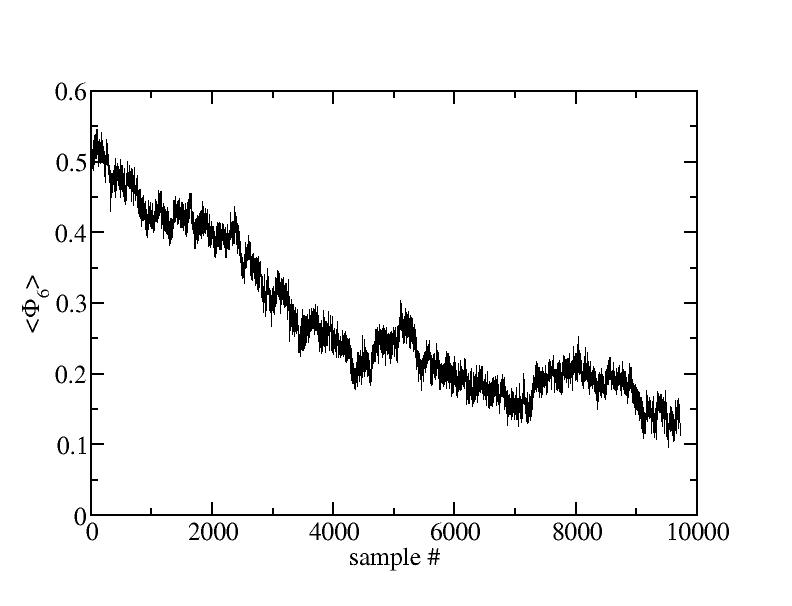

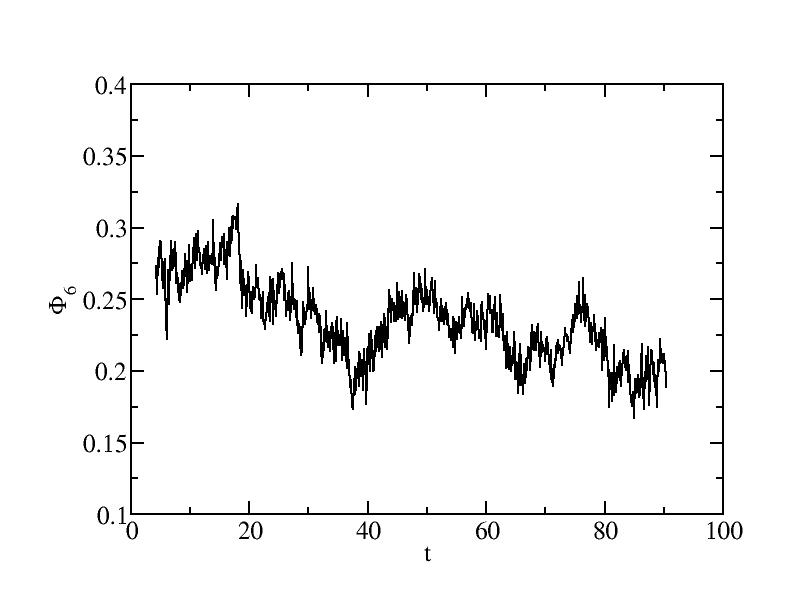

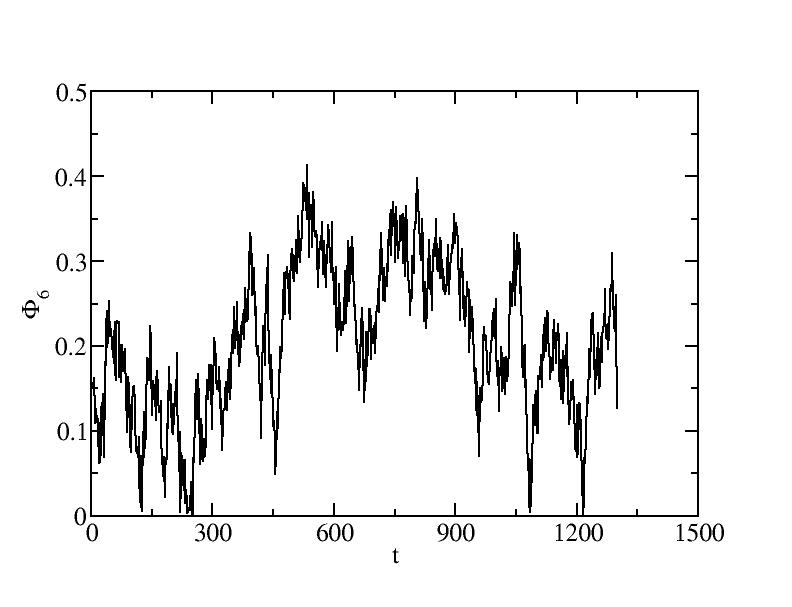

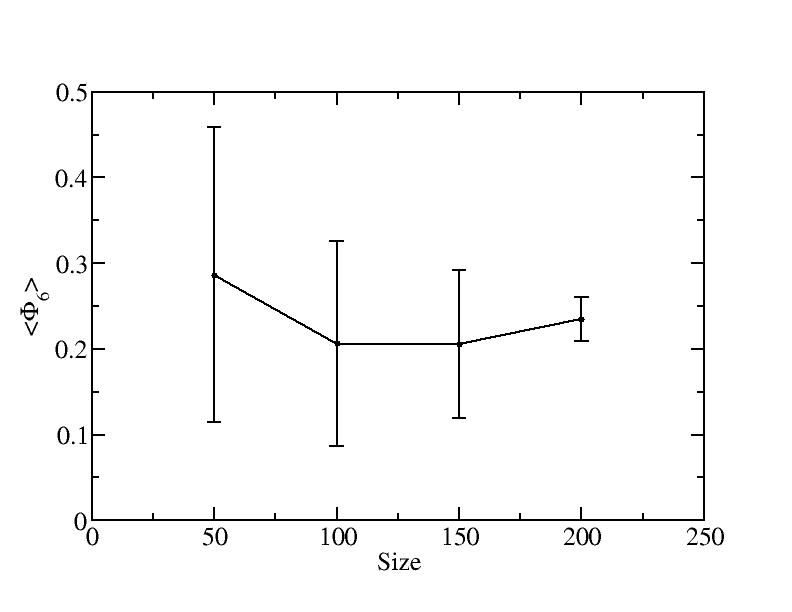

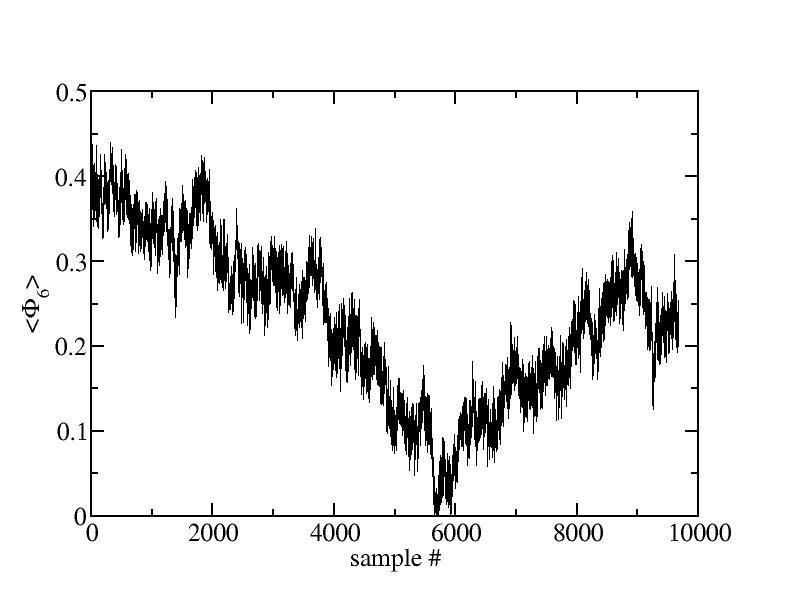

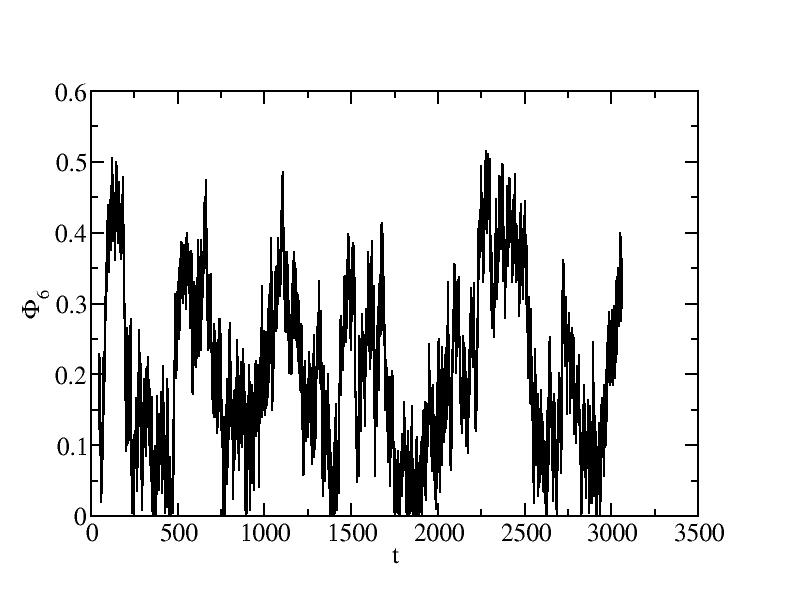

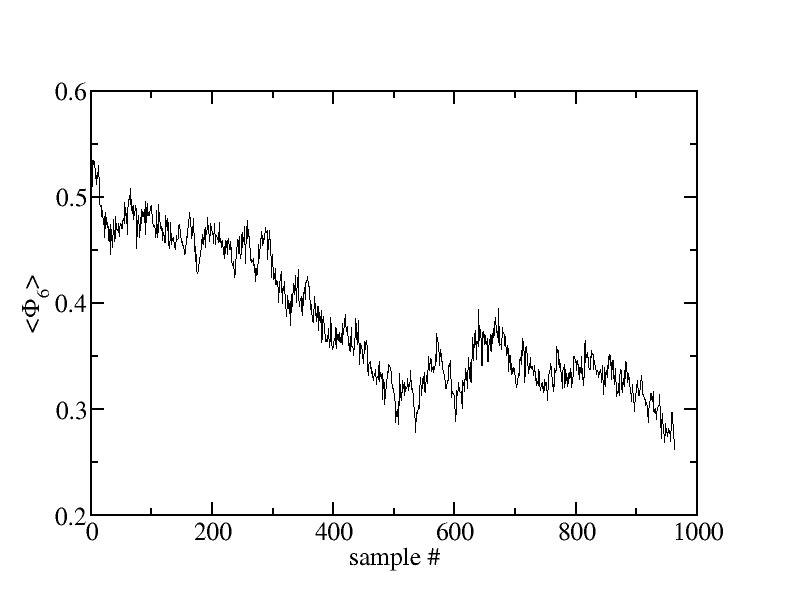

Phi6 |

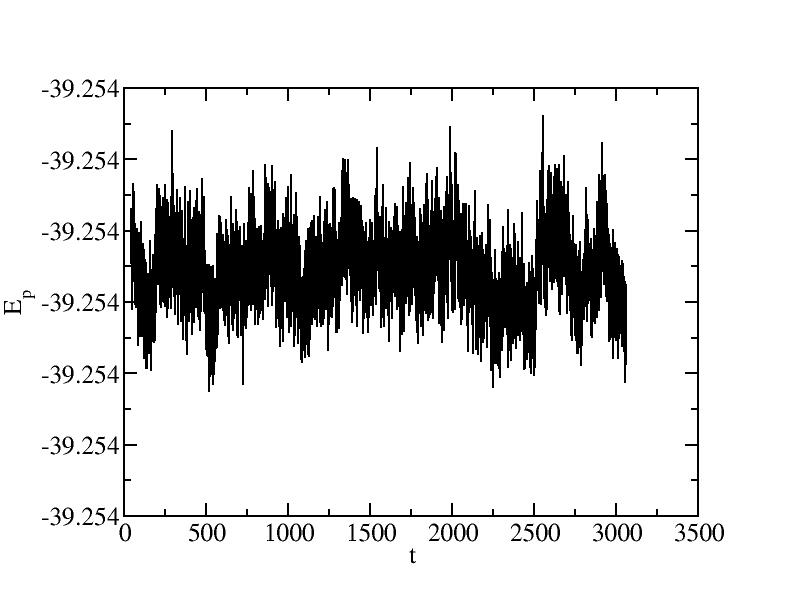

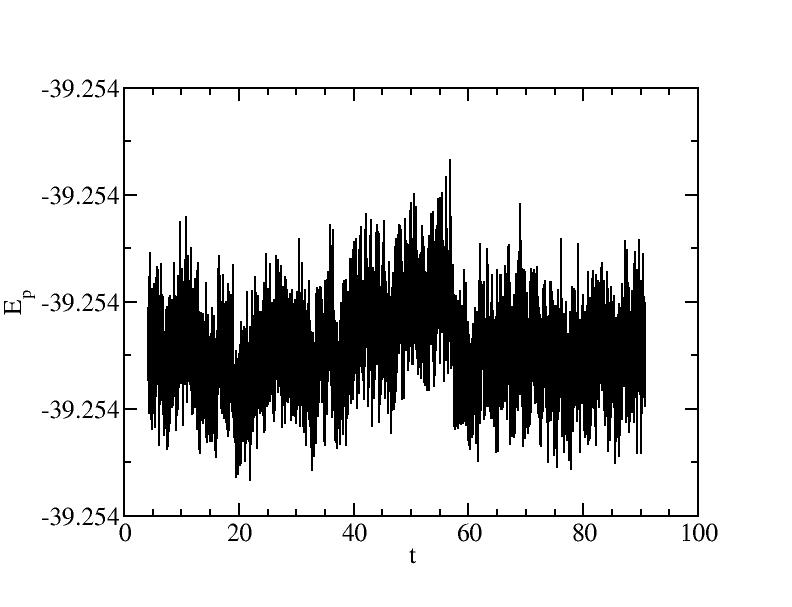

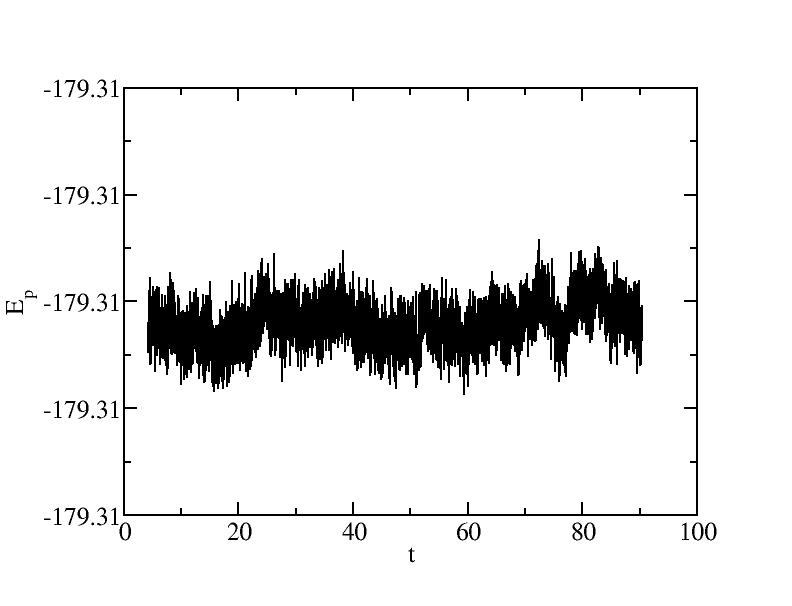

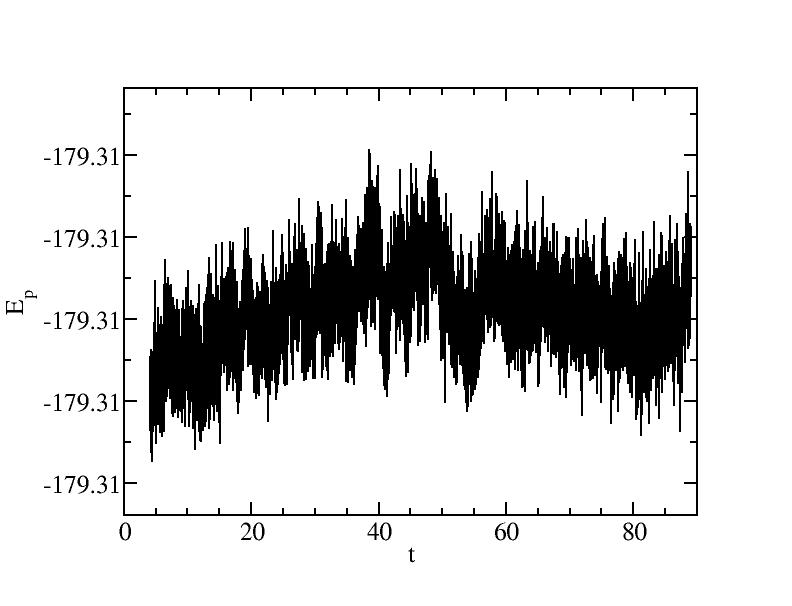

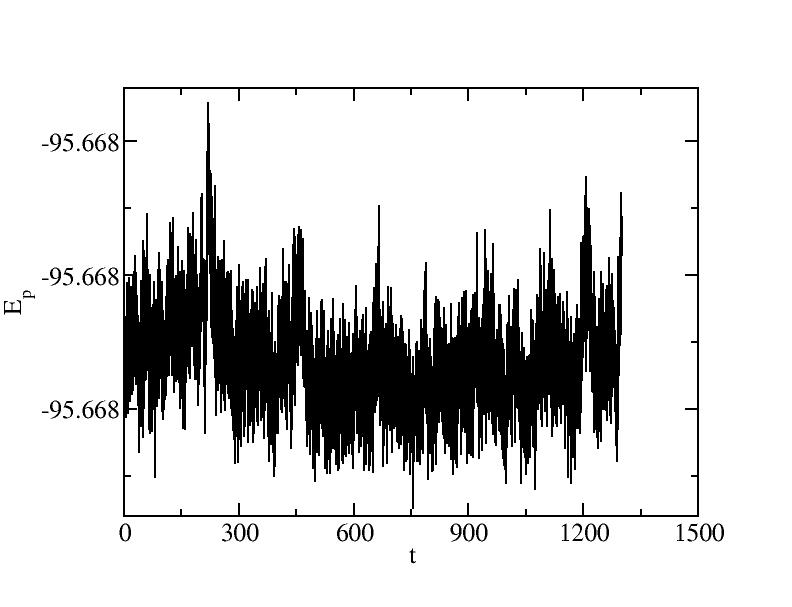

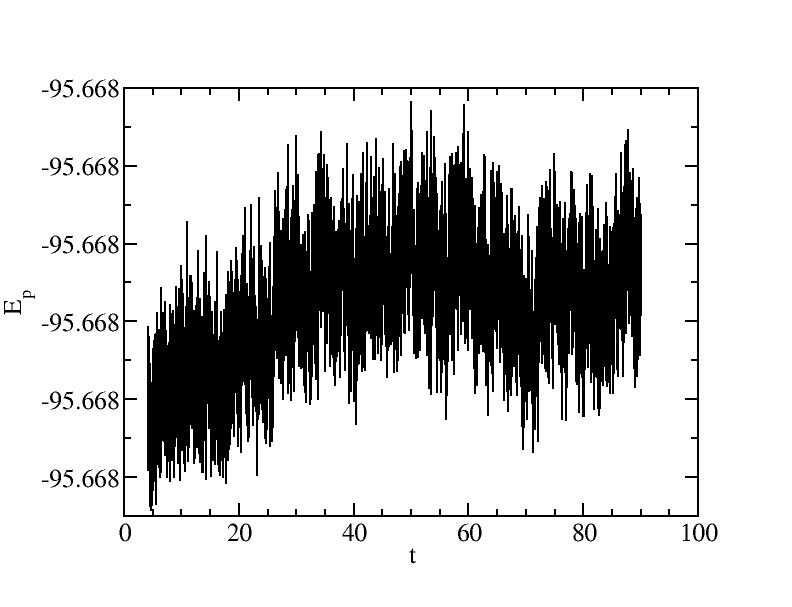

Potential energy |
100x100 |
First |
2000 |
18.4514 |
|
|
| |
100x100 |
Second |
70000 |
13.5315 |
|
|
| |
======= |
150x150 |
First |
2000 |
48.2927 |
|
|
| |
150x150 |
Second |
30000 |
13.5993 |
|
|
| |
======= |
200x200 |
First |
2000 |
98.3888 |
|
|
| |
200x200 |
Second |
2000 |
28.5954 |
|
|
| |

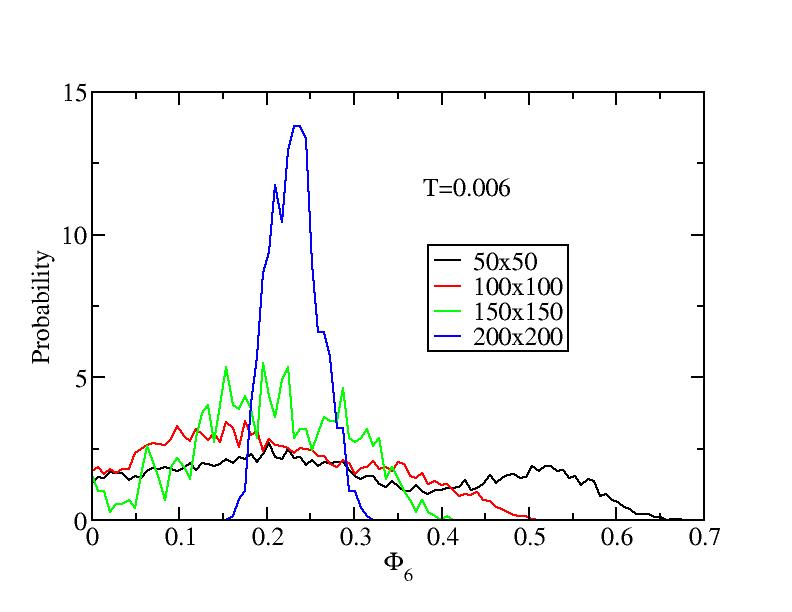

Histograms of Phi6 at T=0.006
