April 01 2004

T_56_56_64 at T=0.005 with different external driven force E

The ground state and a random state of T_56_56_64 went through Albert's alogrithm for 1.01*10^5 passes (first 1000 passes were discarded) with different driven force E at T=0.005. The results for E=0.1 are at March 16 2004.

The driven energy of the ground state of T_56_56_64 along +x is 3.1297560638e-02.

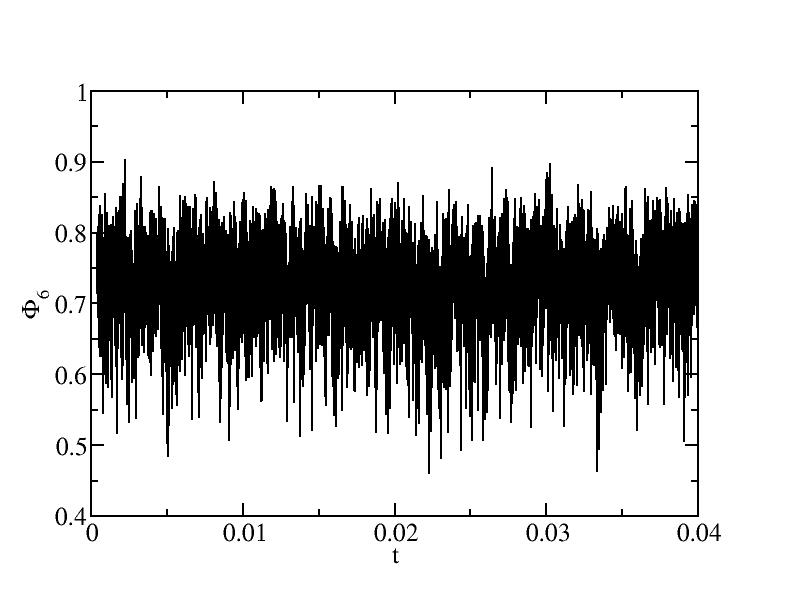

E=(0.2,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

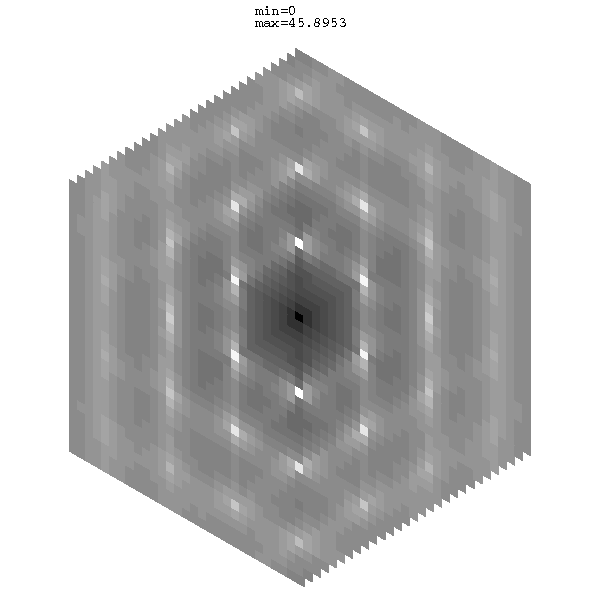

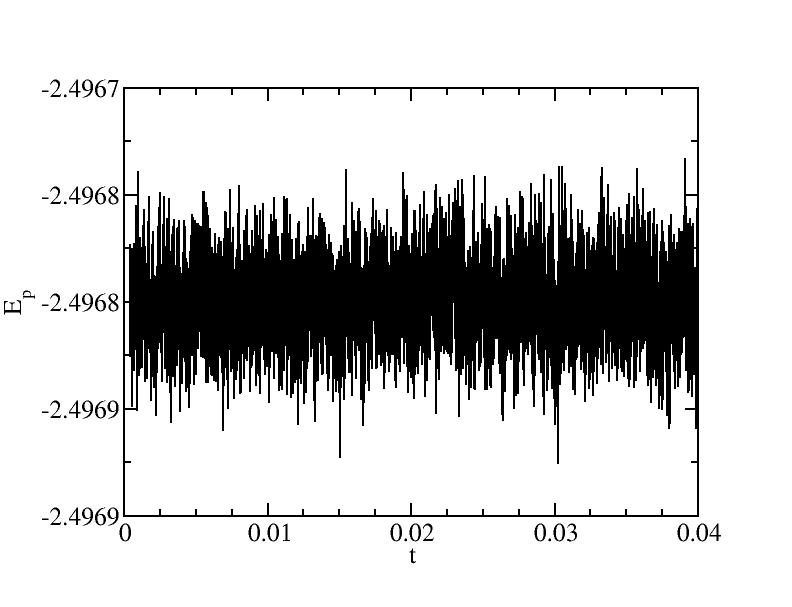

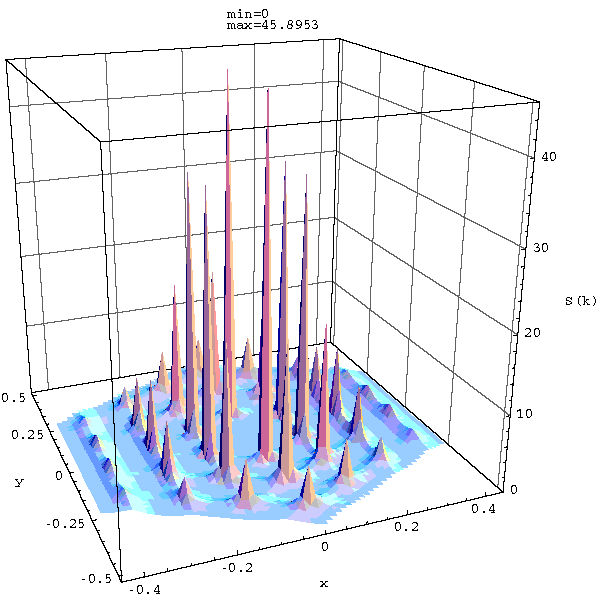

Ground First 45.8953

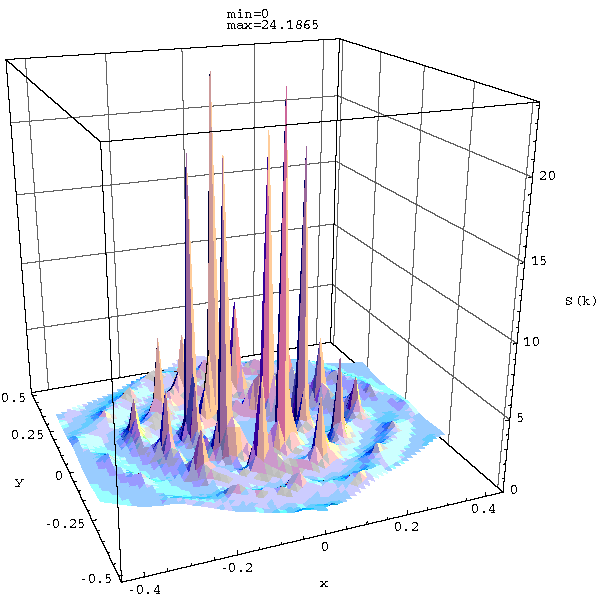

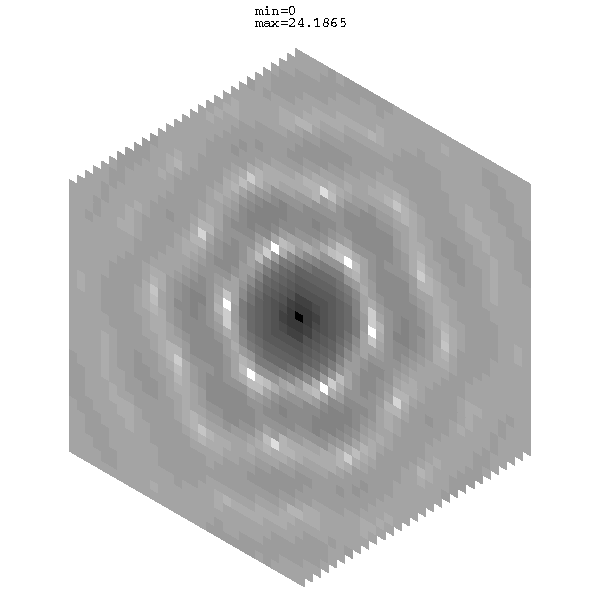

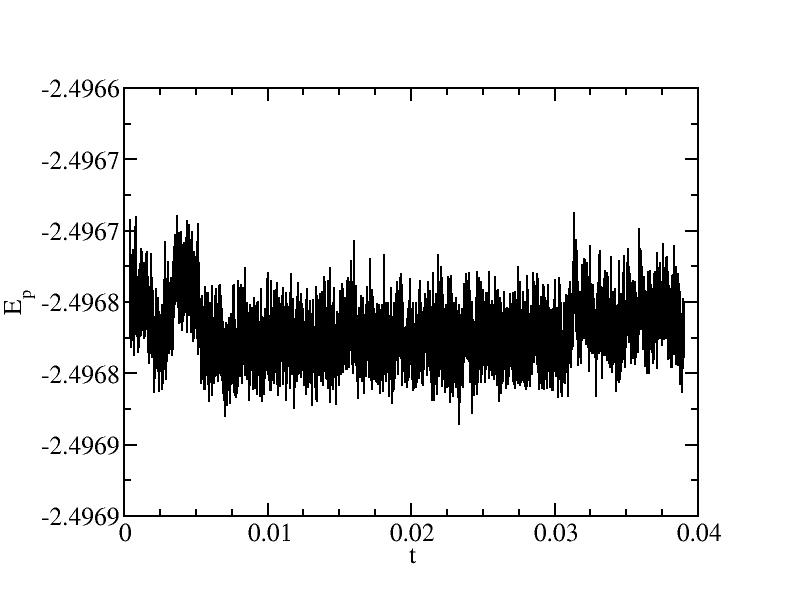

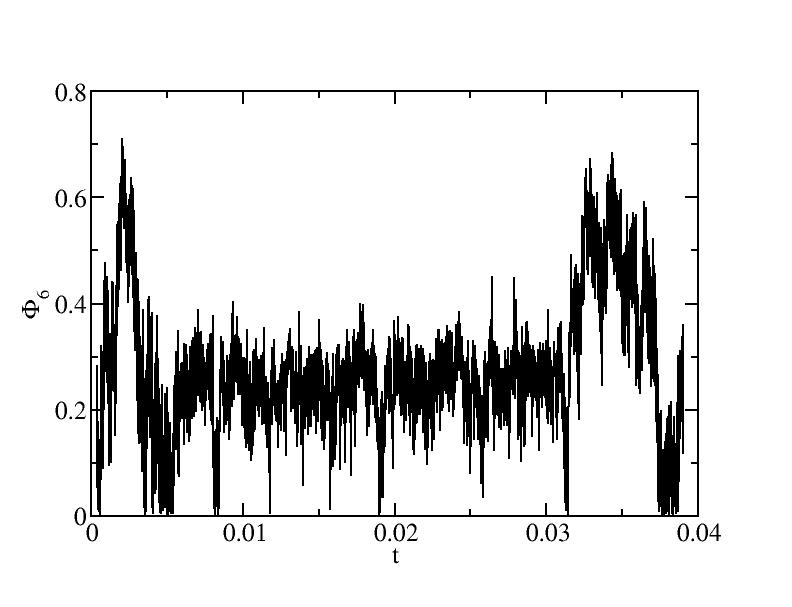

Random First 24.1865

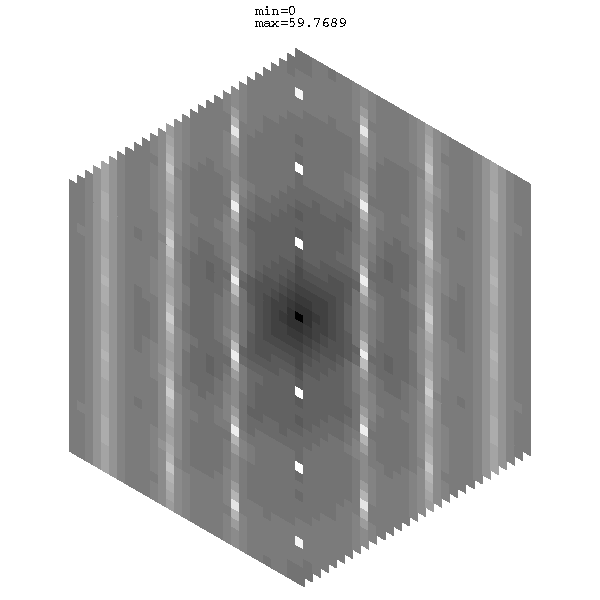

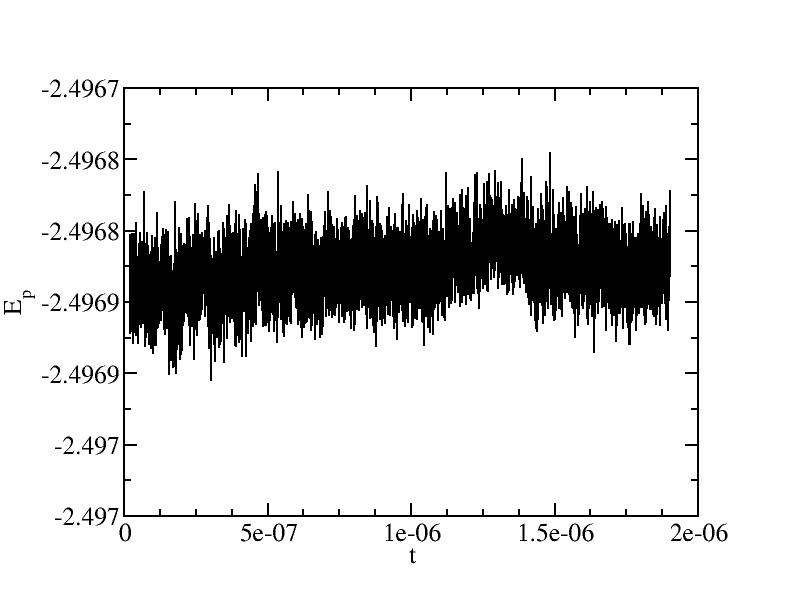

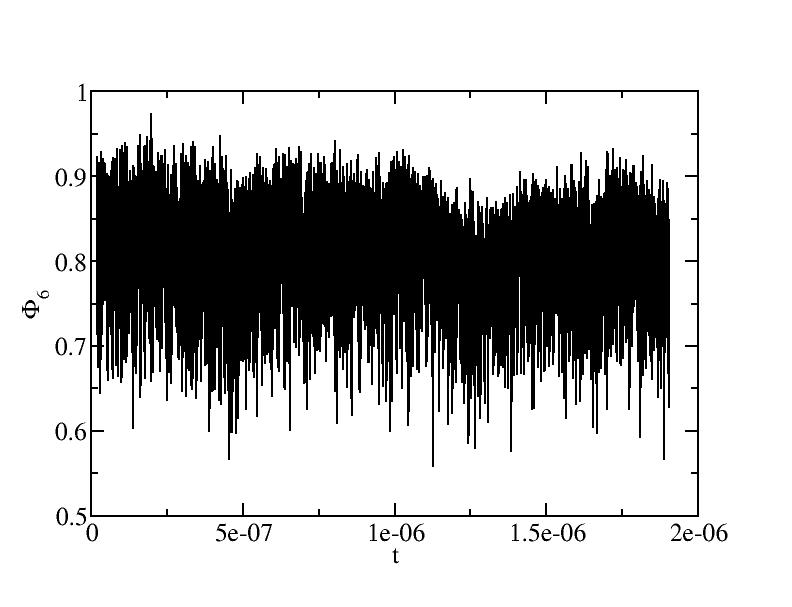

E=(0.3,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

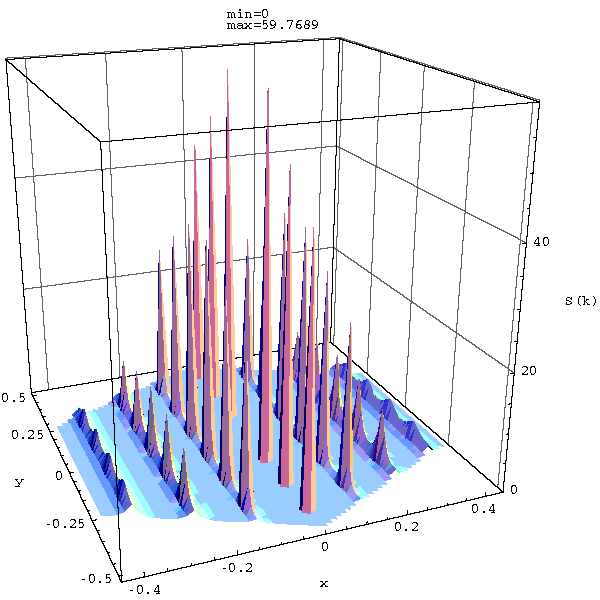

Ground First 59.7689

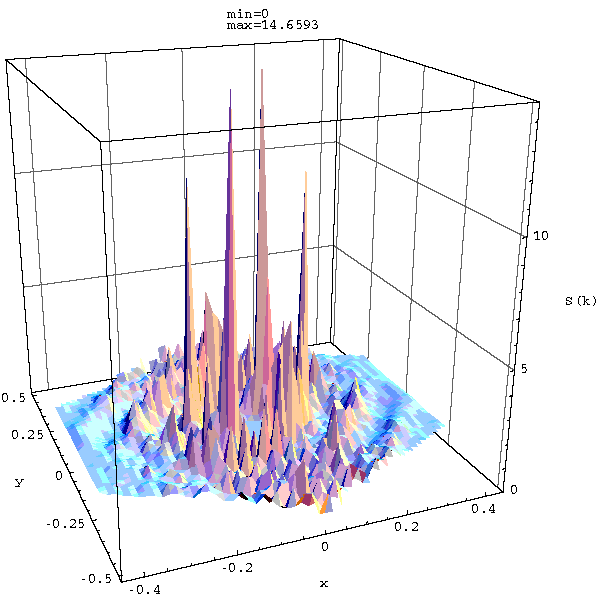

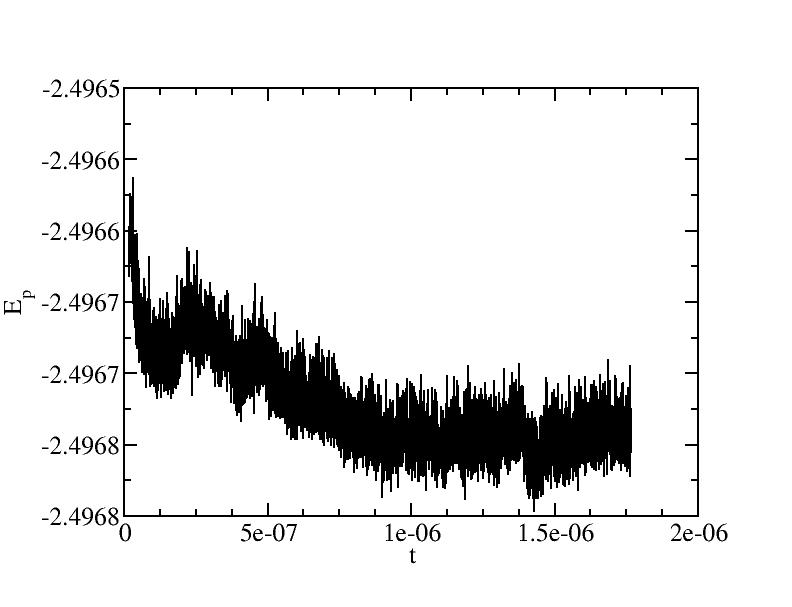

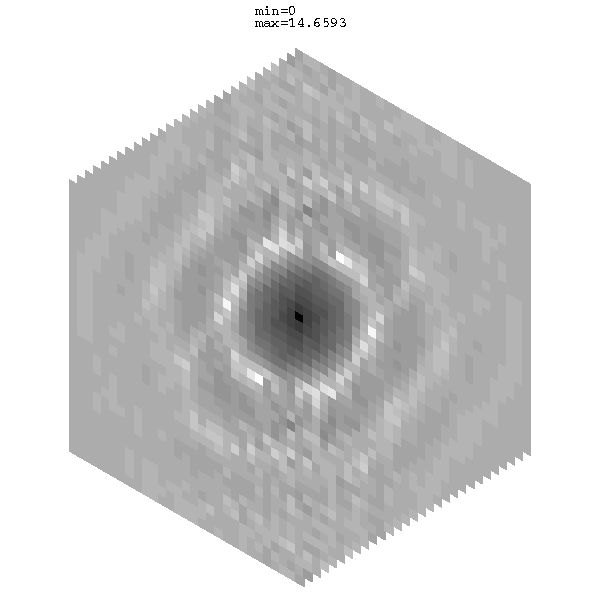

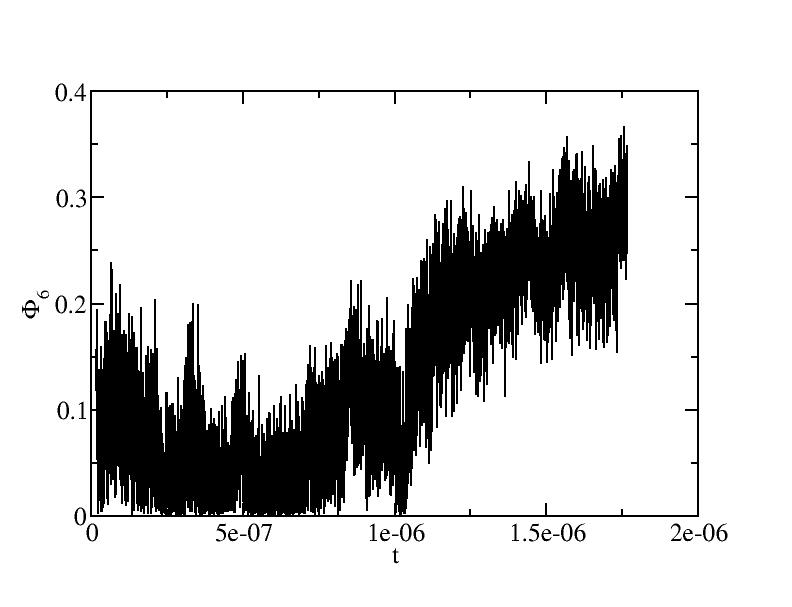

Random First 14.6593

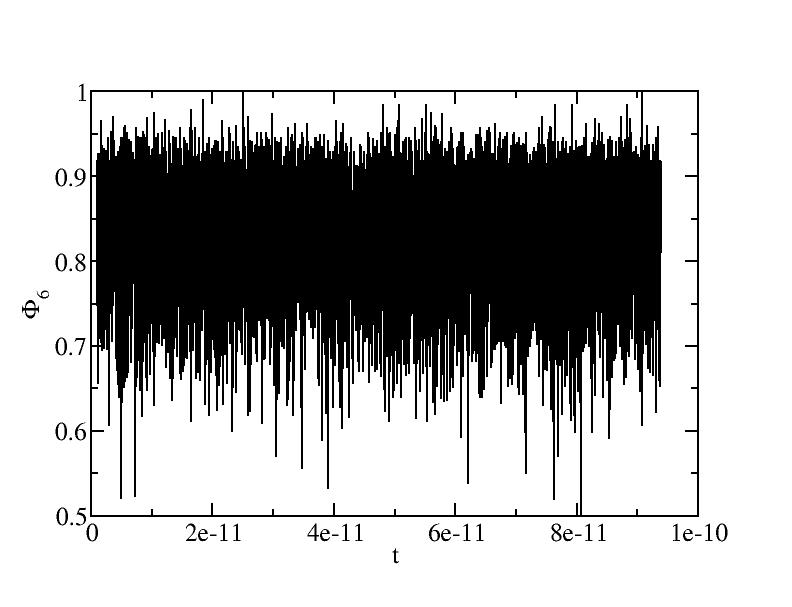

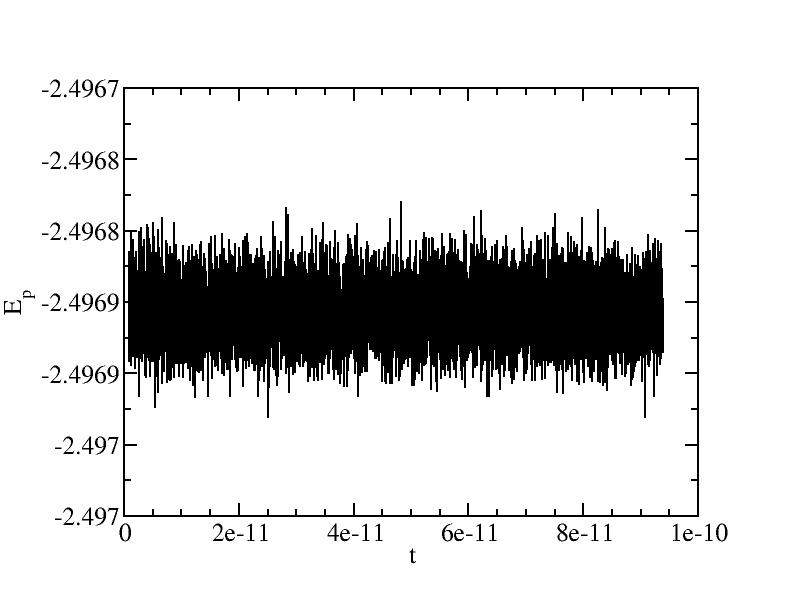

E=(0.4,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

Ground First 64

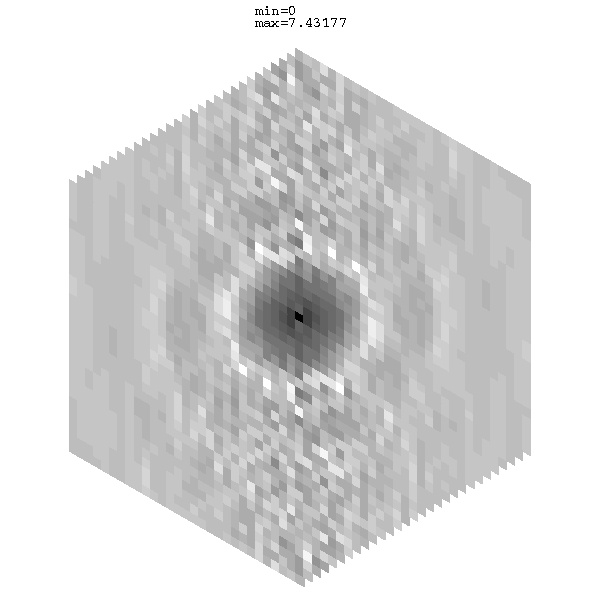

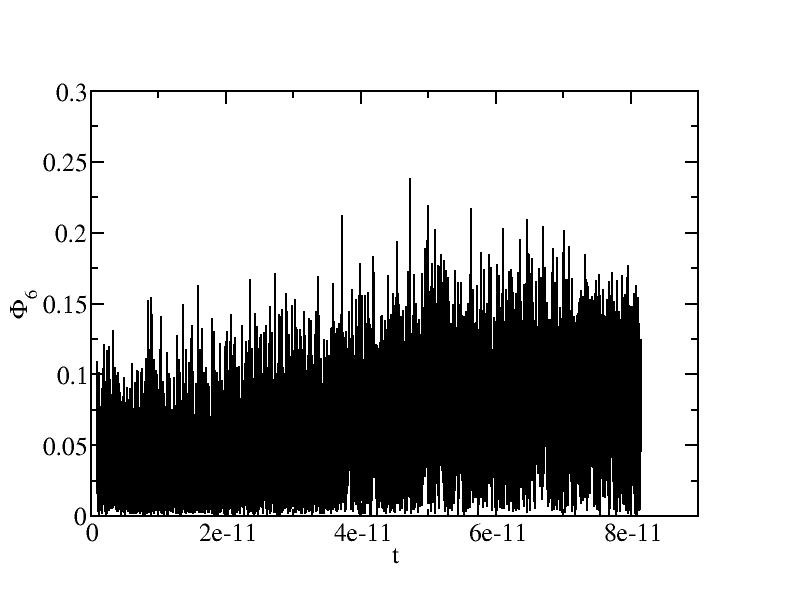

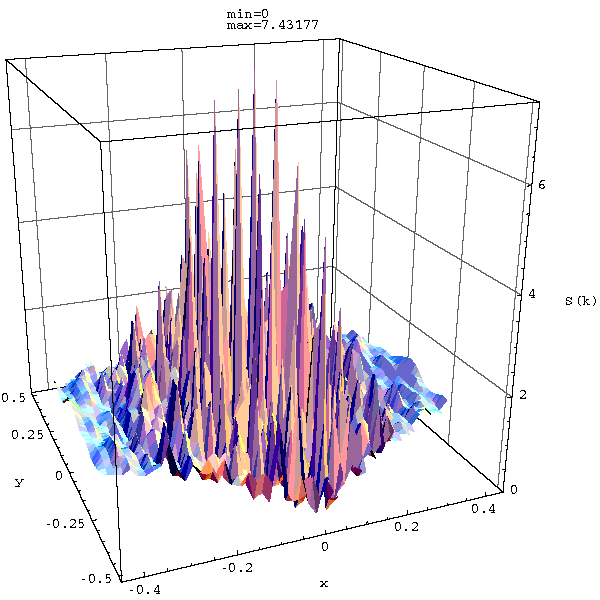

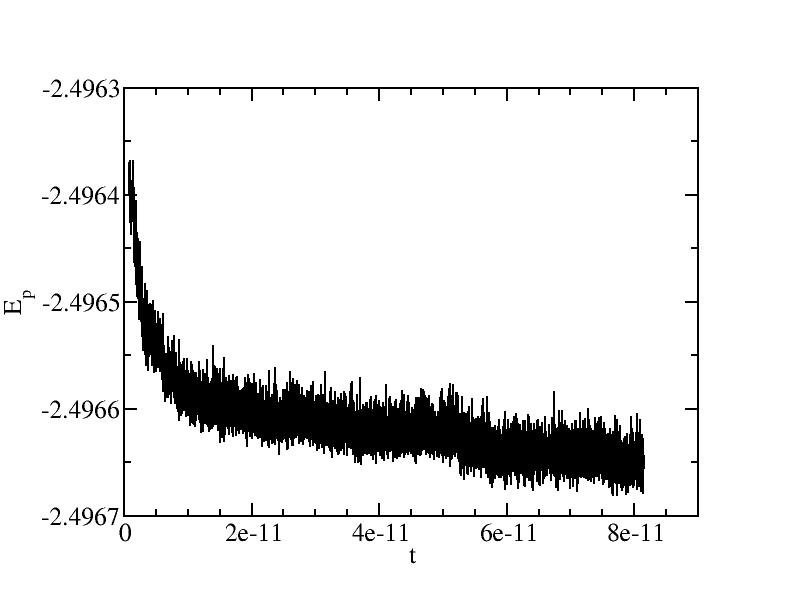

Random First 7.43177

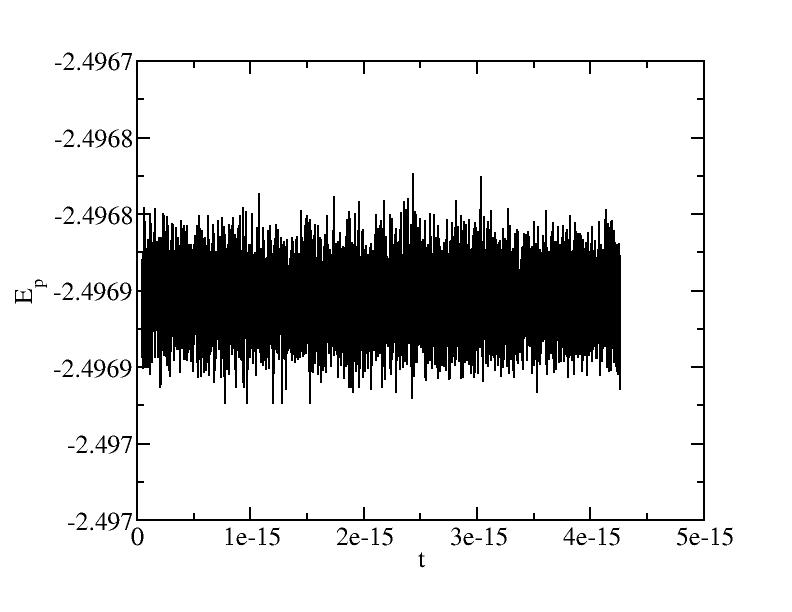

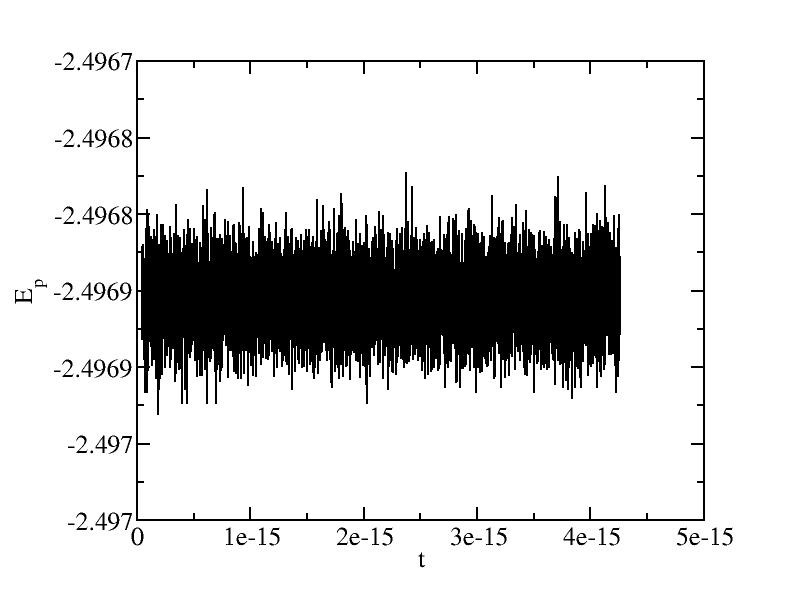

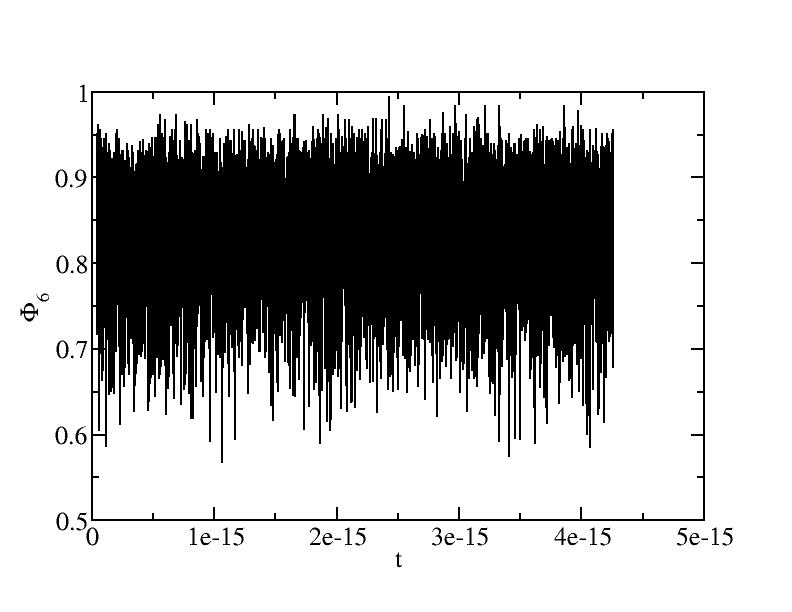

E=(0.5,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

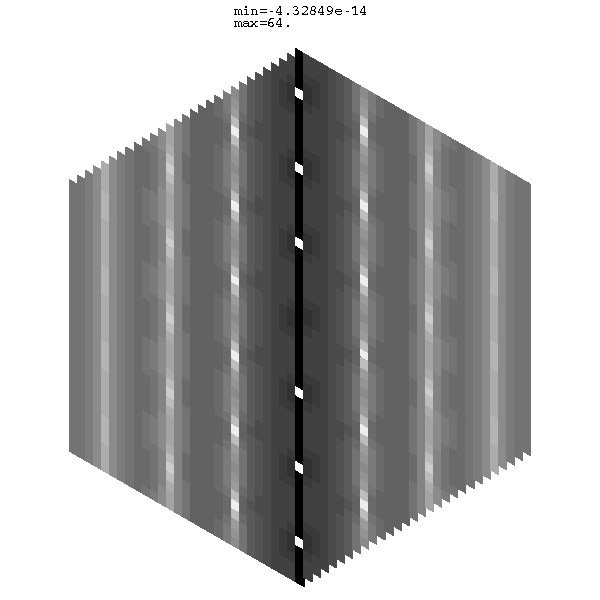

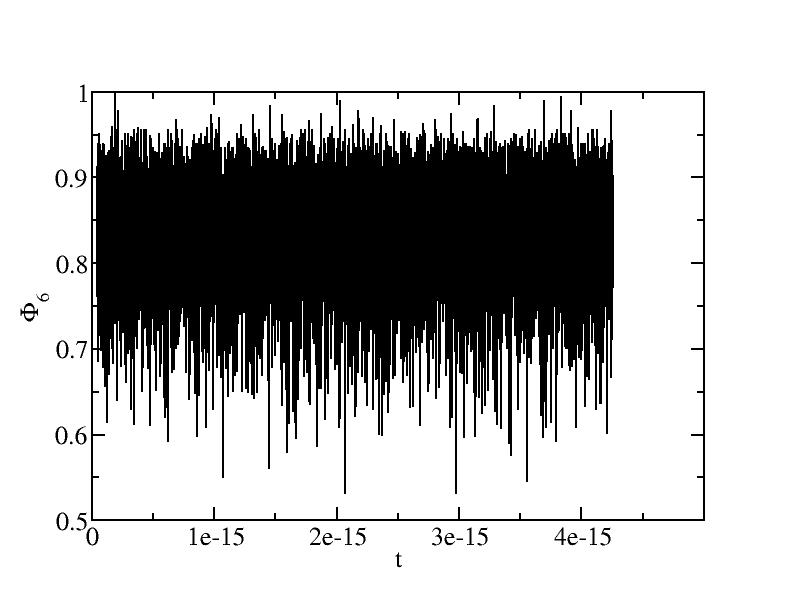

Ground First 64

Ground Second 64

======

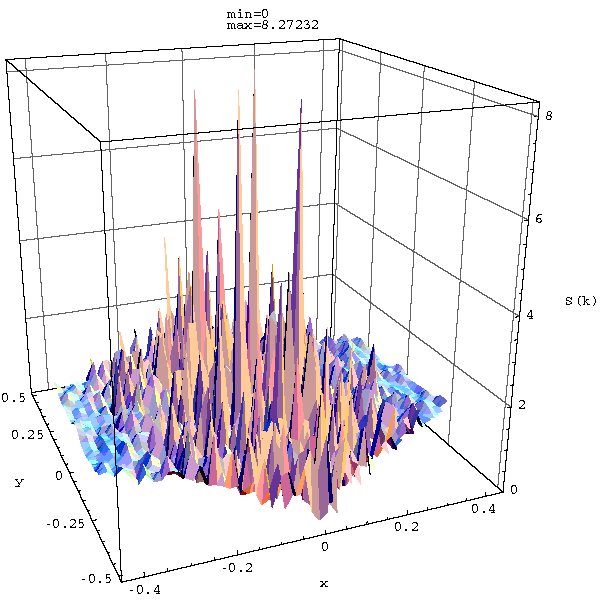

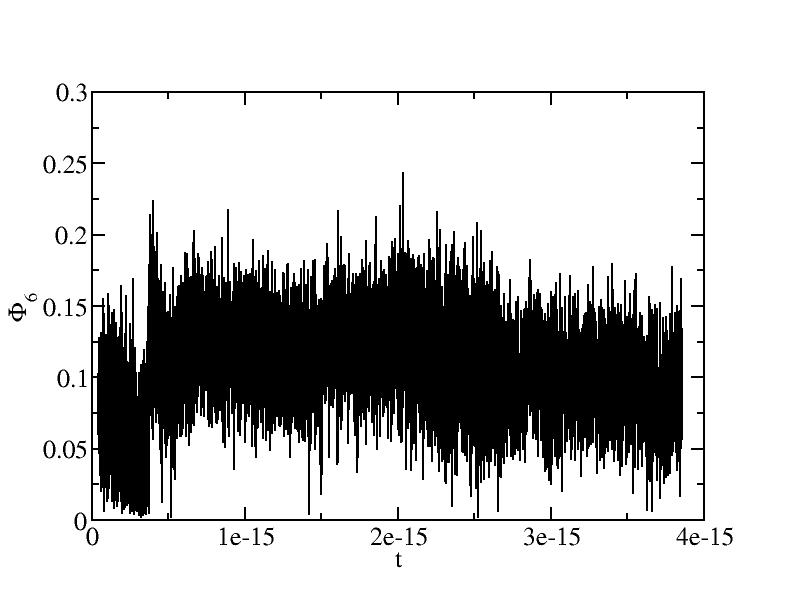

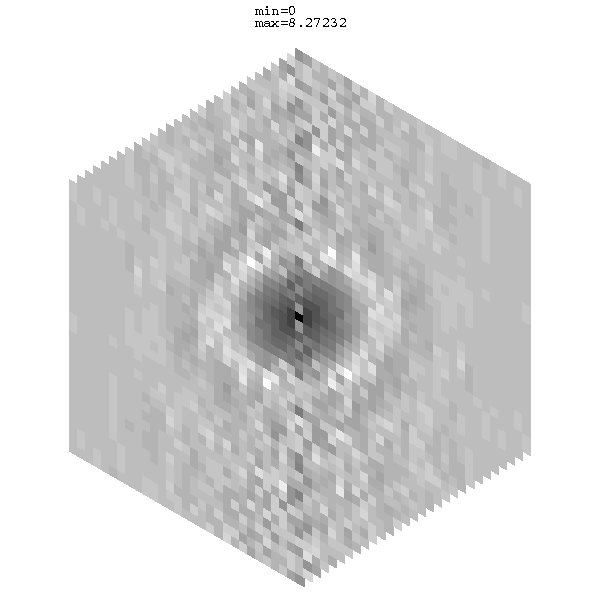

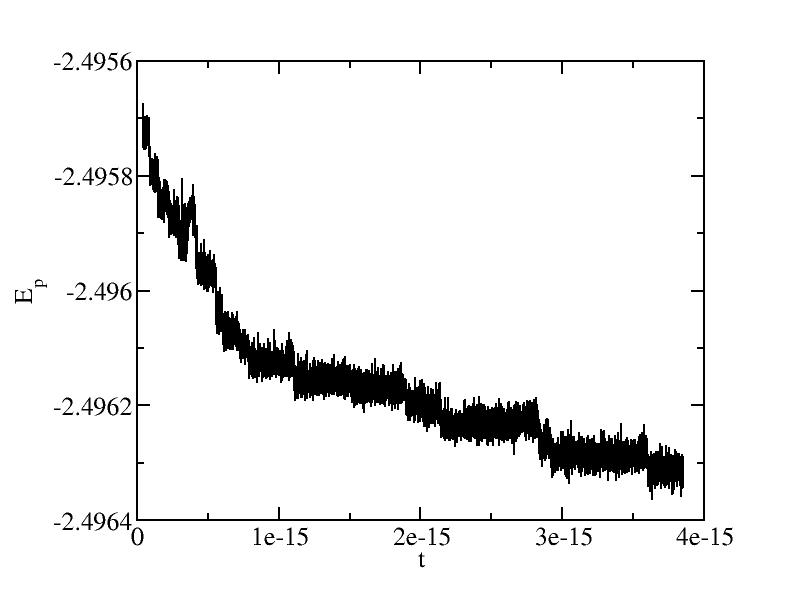

Random First 8.27232

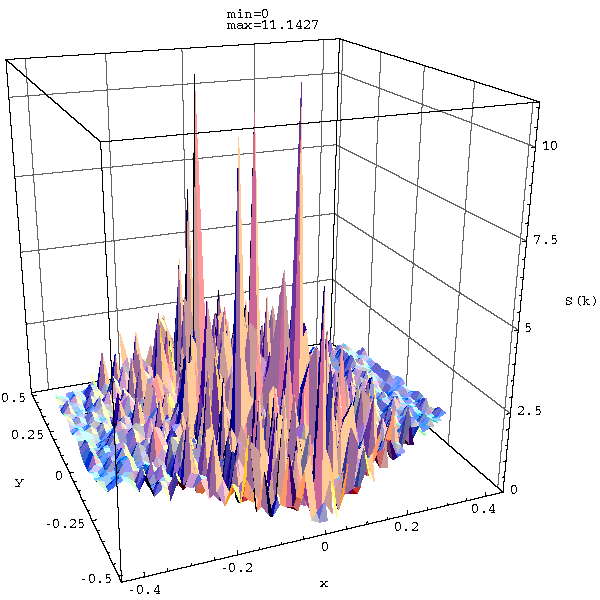

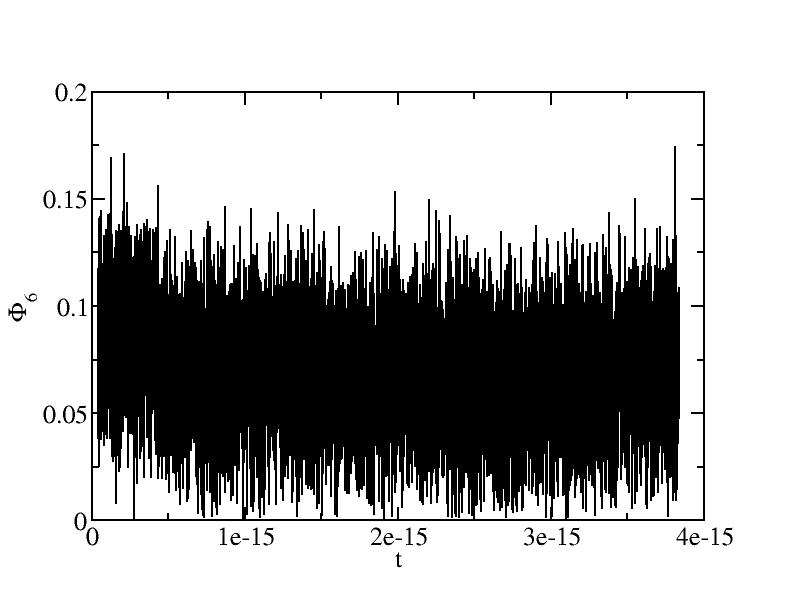

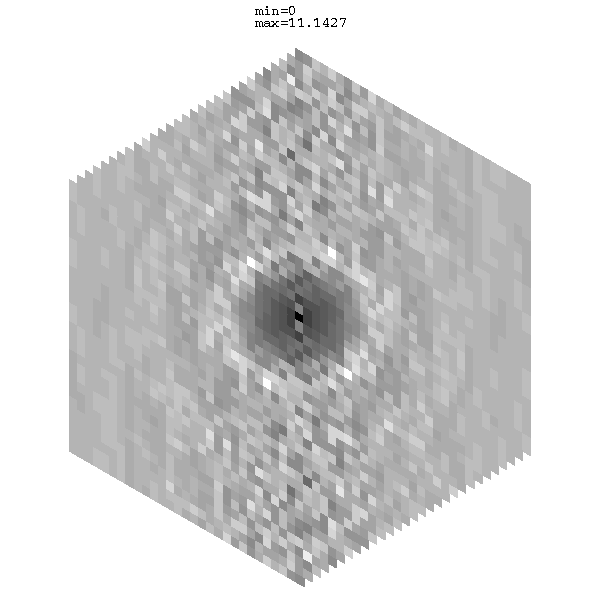

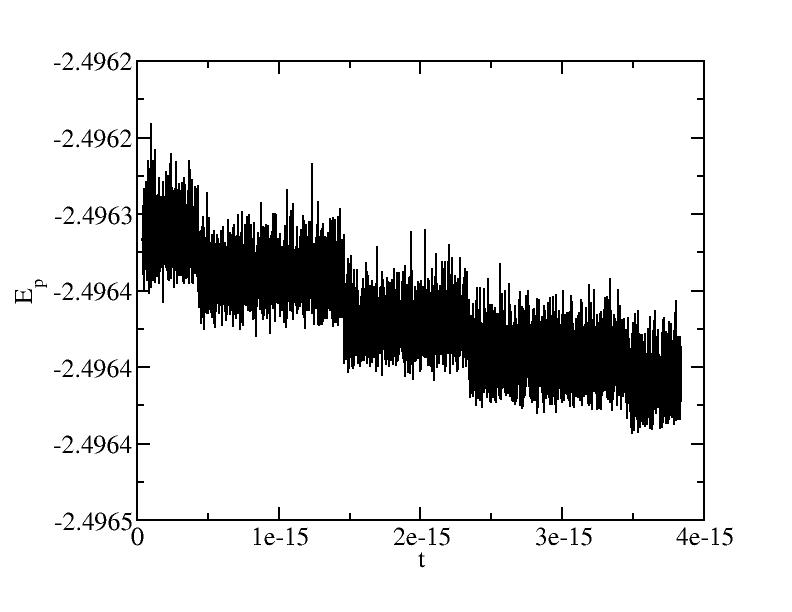

Random Second 11.1427

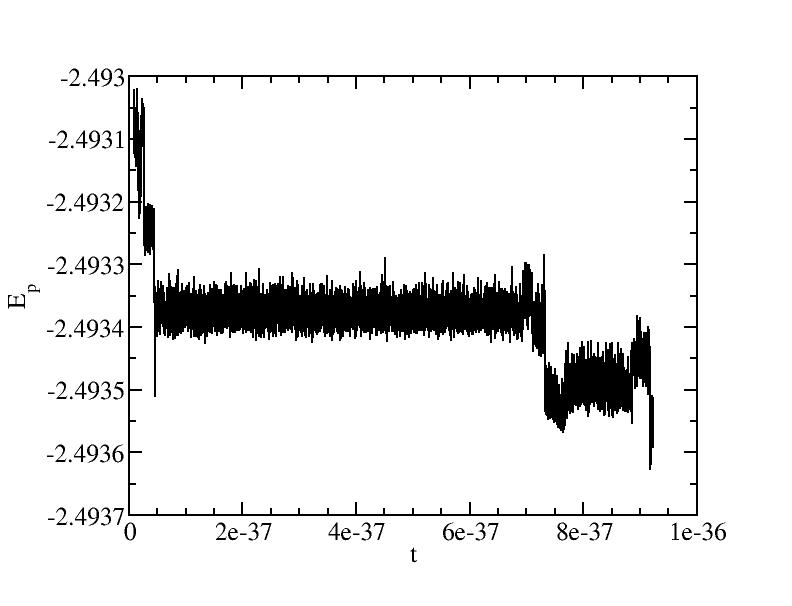

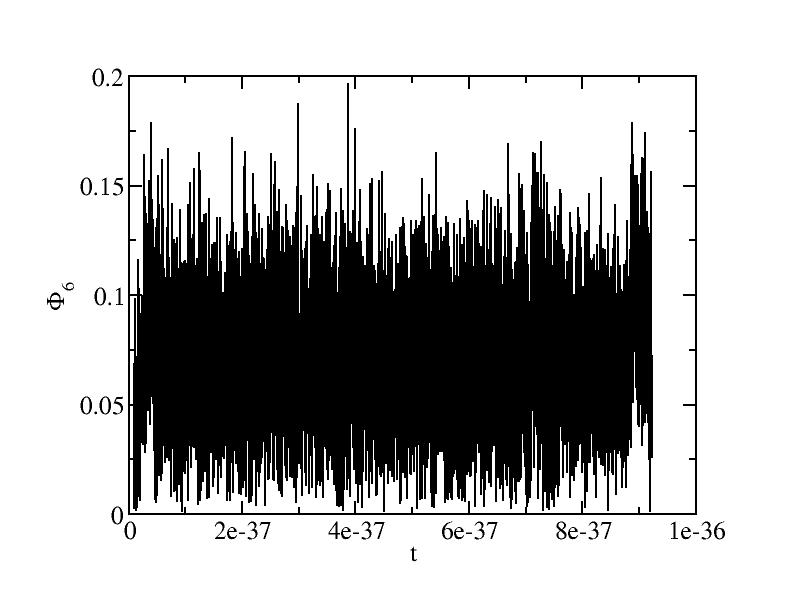

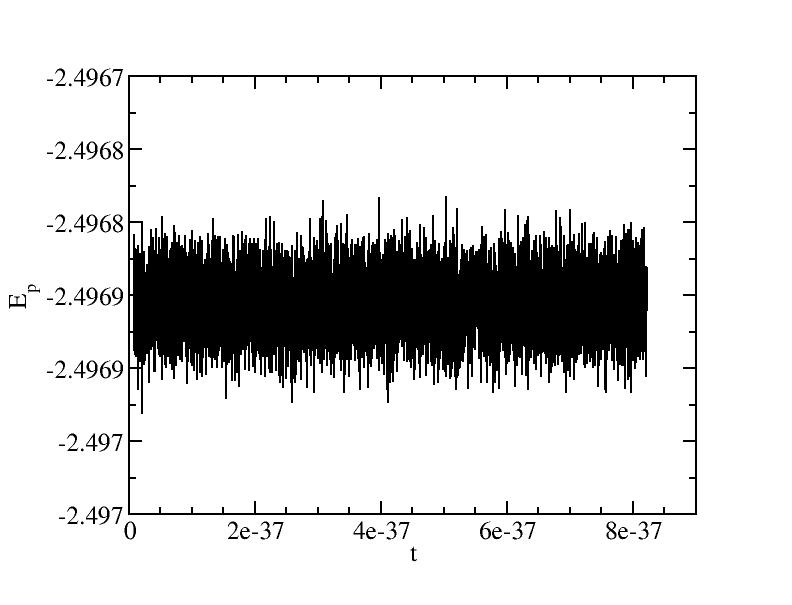

E=(1.0,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

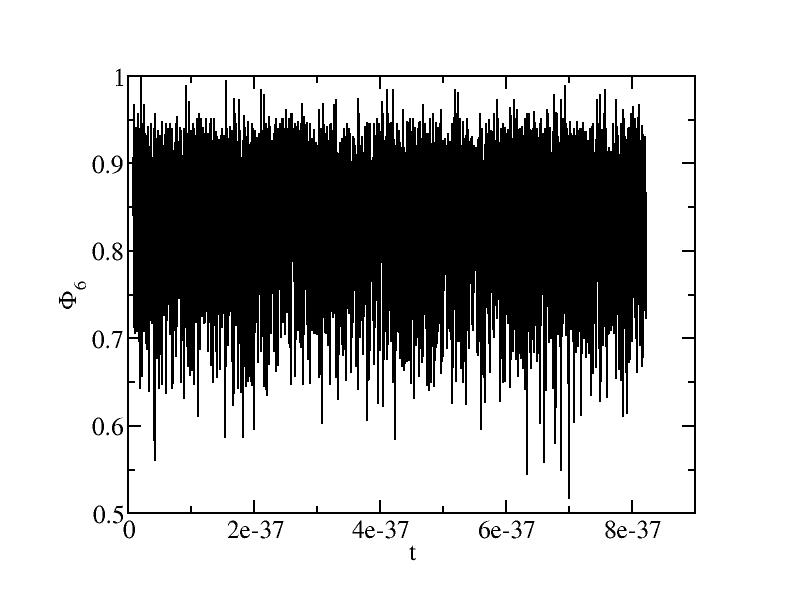

Ground First 64

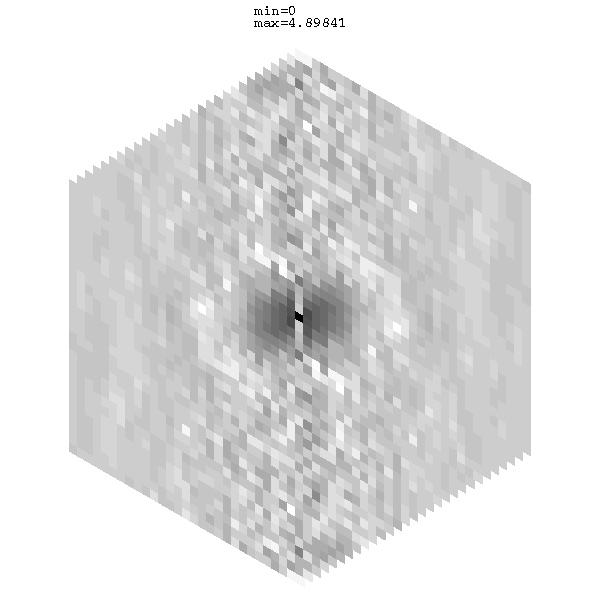

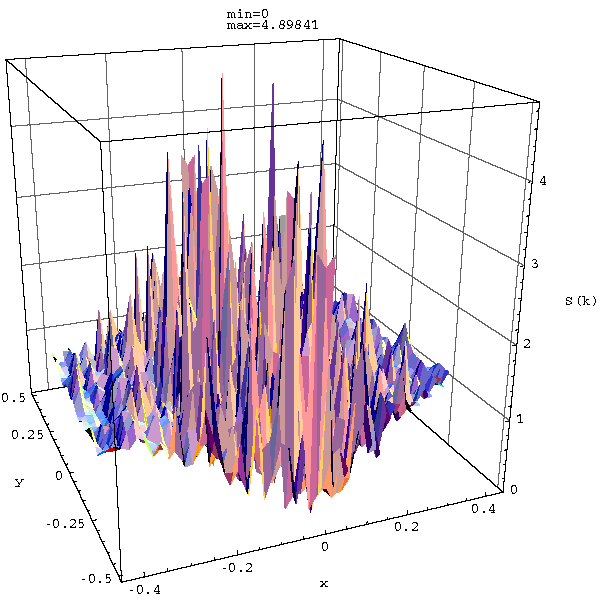

Random First 4.89841

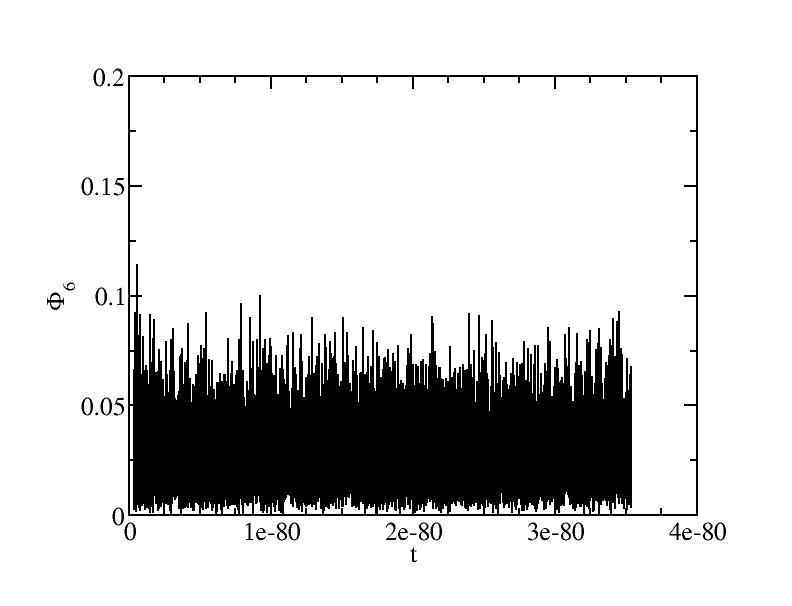

E=(2.0,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

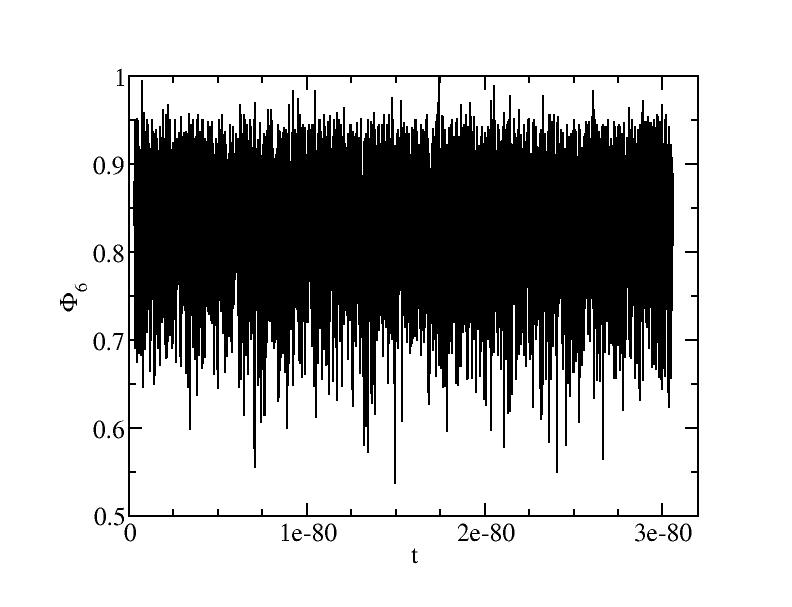

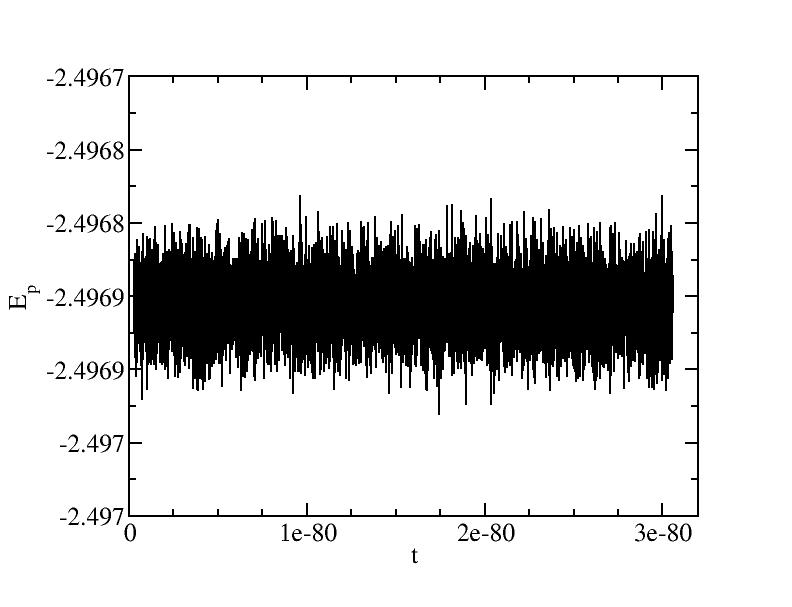

Ground First 64

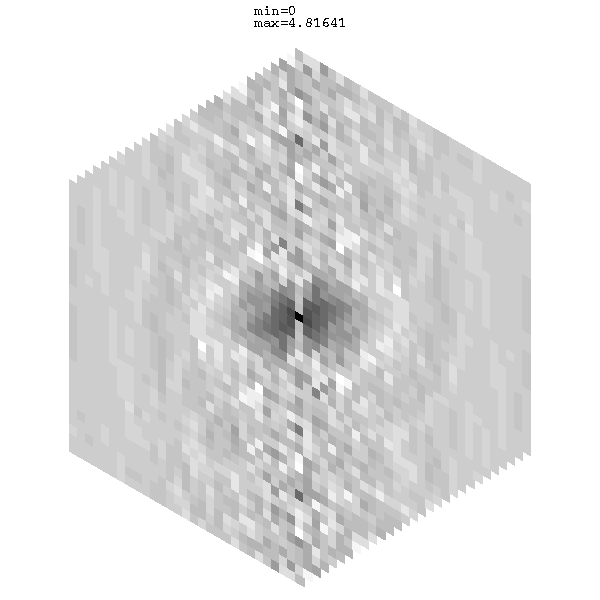

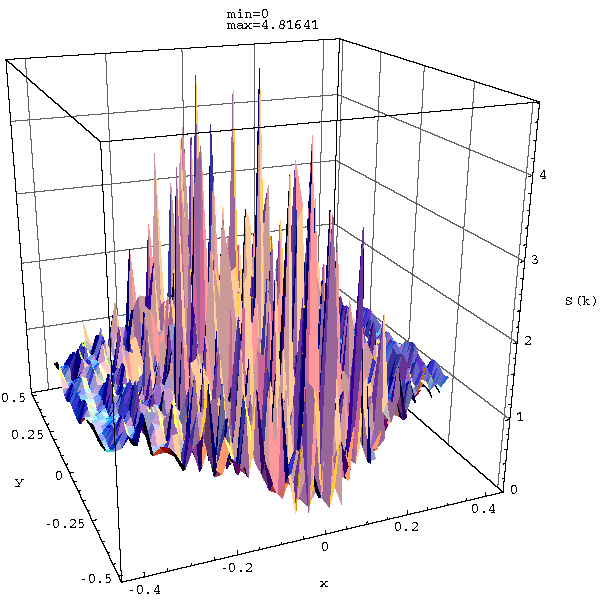

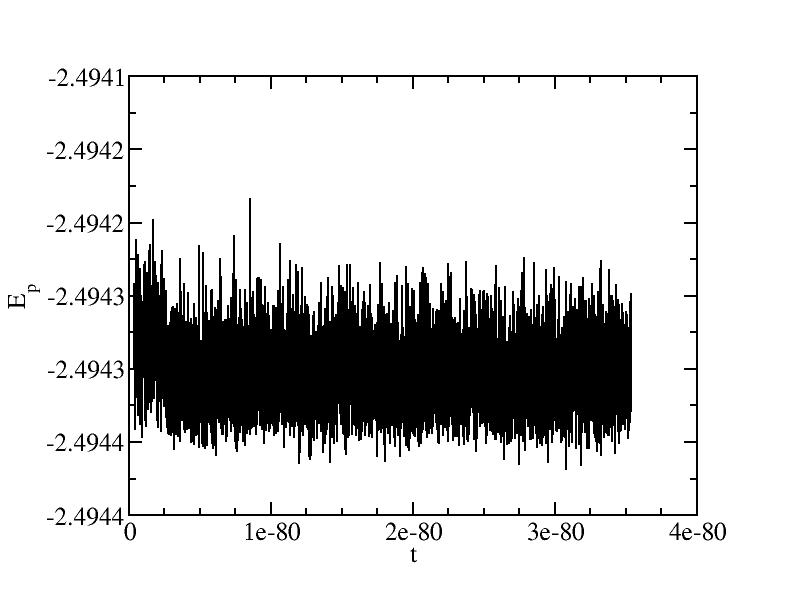

Random First 4.81641

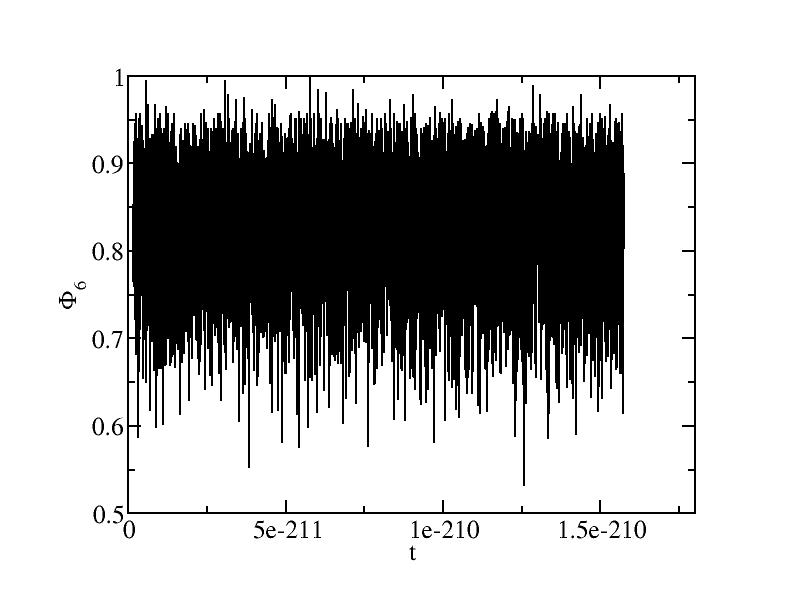

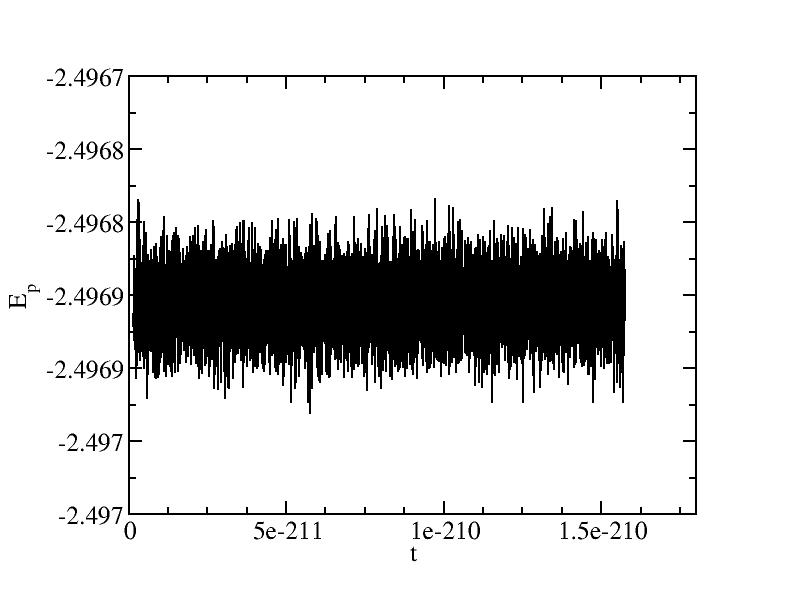

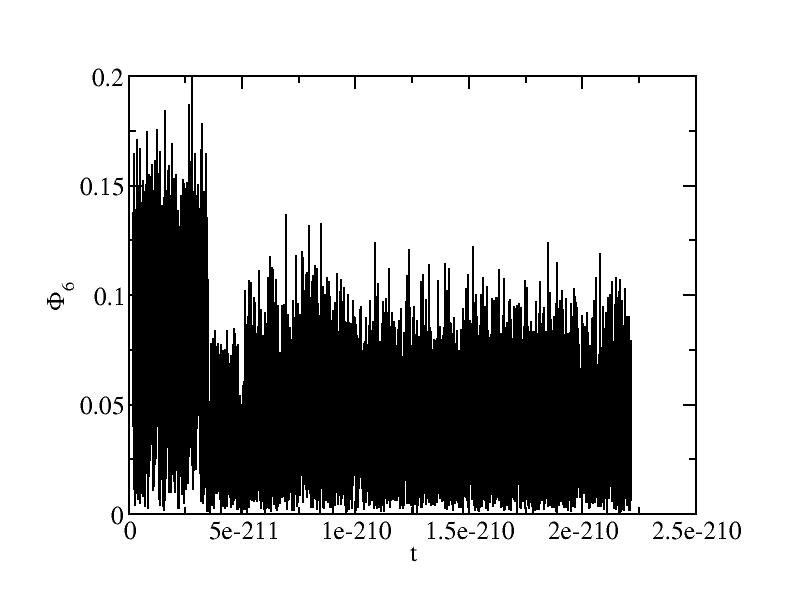

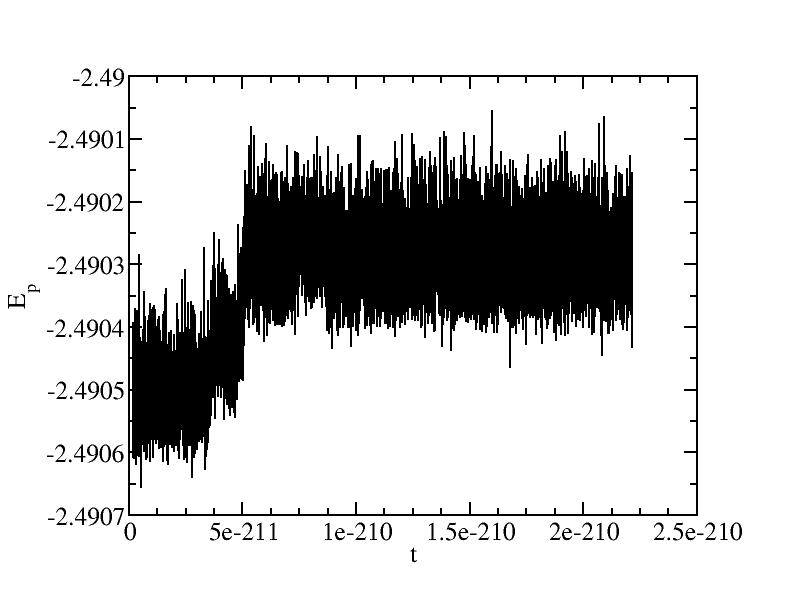

E=(5.0,0)

Initial configuration Run Max peak height 3D structure function 2D Intensity plot of structure function Phi6 Potential energy

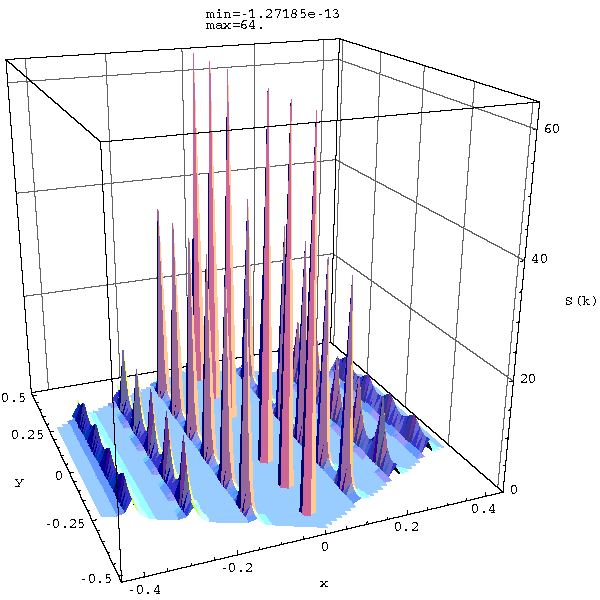

Ground First 64

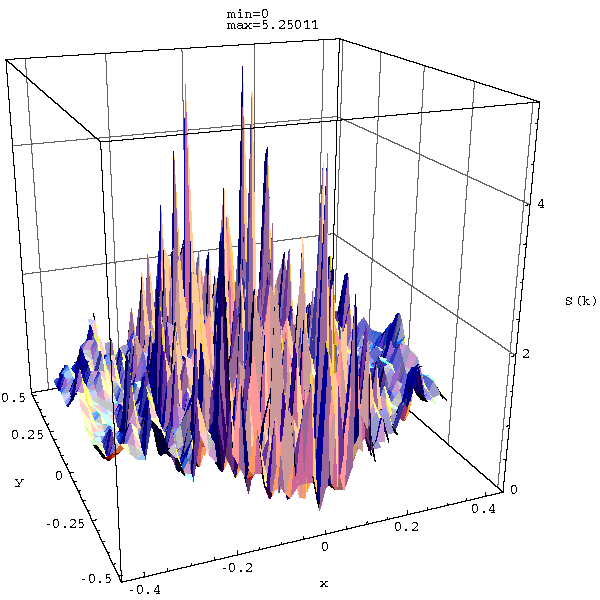

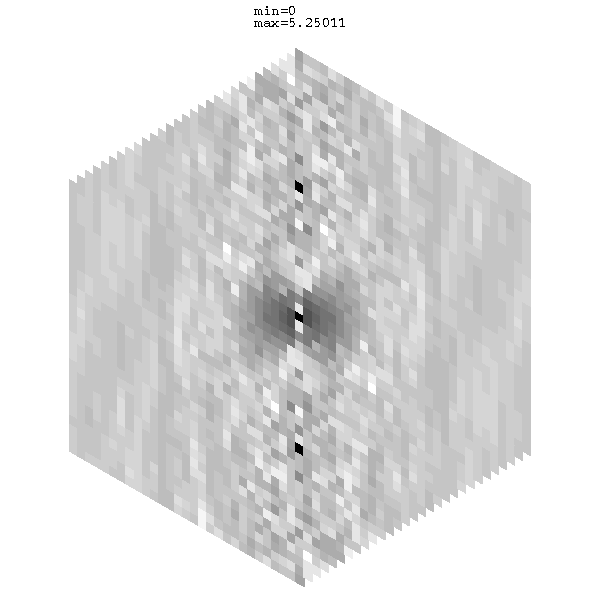

Random First 5.25011
