April 28 2004
Equilibration of Square lattices at T=0.05 with
E
=(0.1,0)
The initial random configurations have been equilibrated at T=0.05 for different sizes of square lattices.
Size
Passes
Max peak height

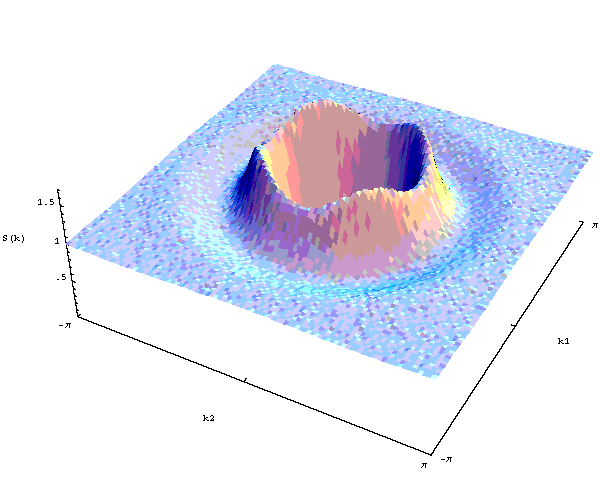

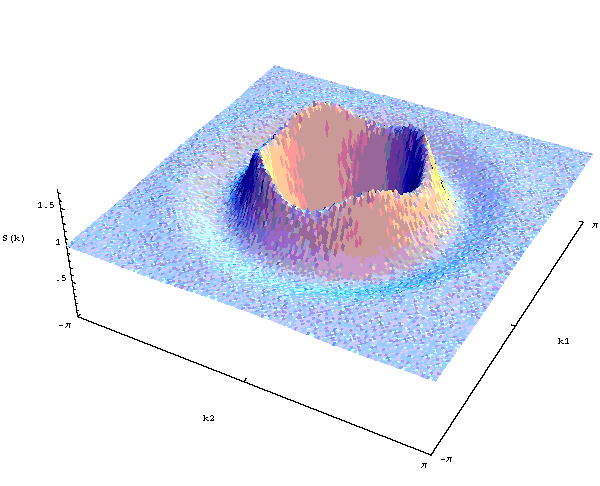

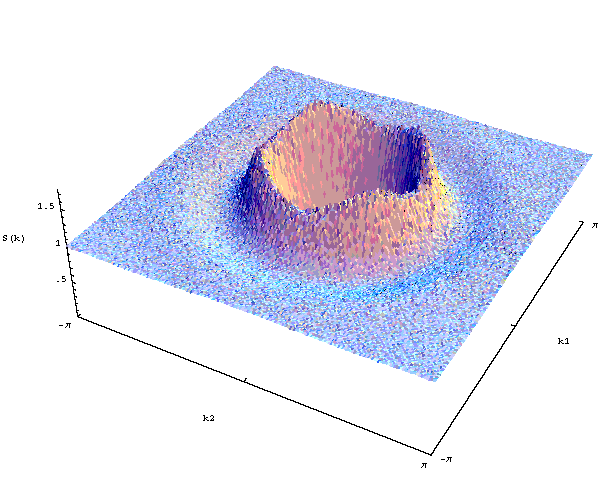

3D structure function

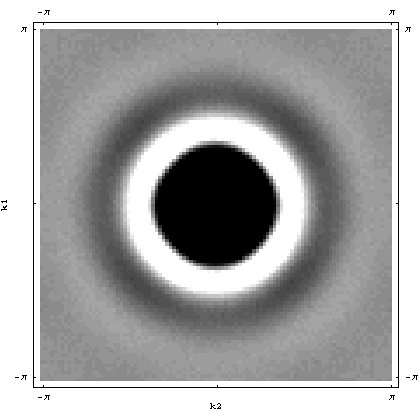

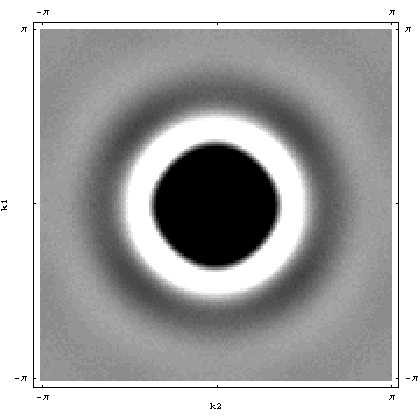

Intensity structure function

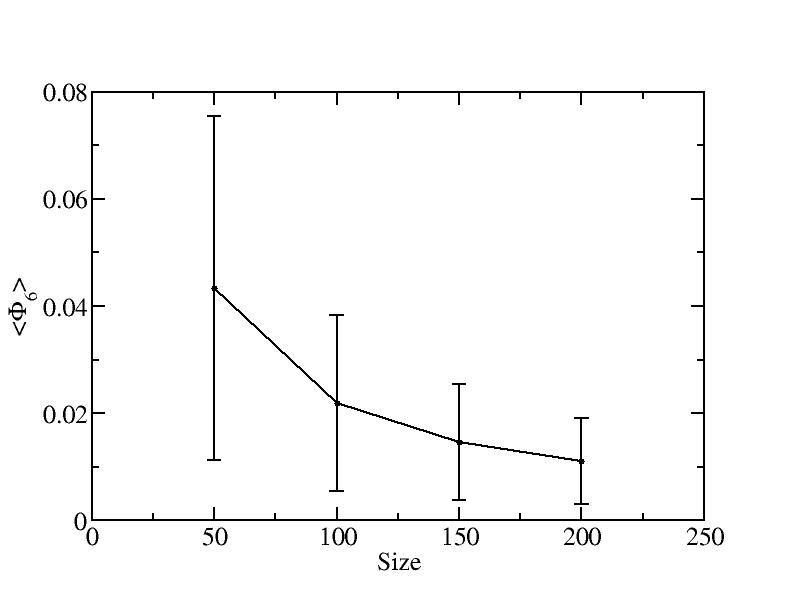

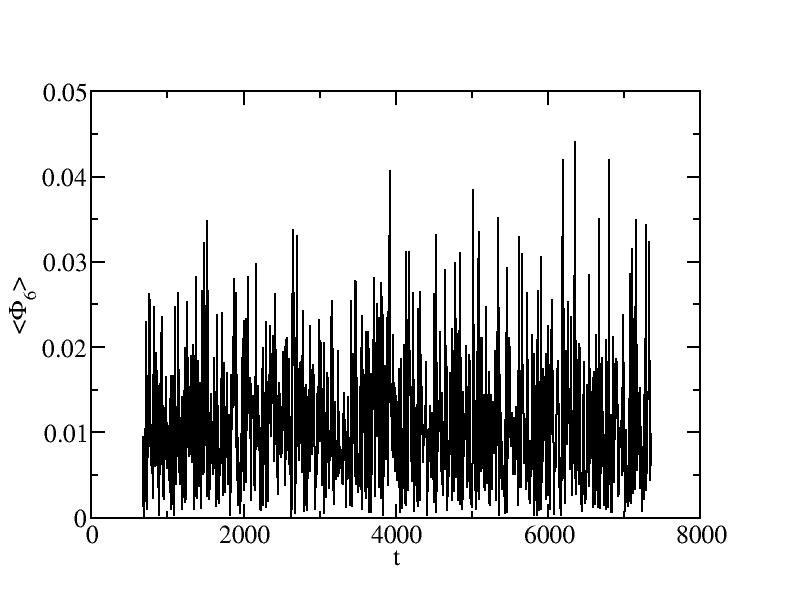

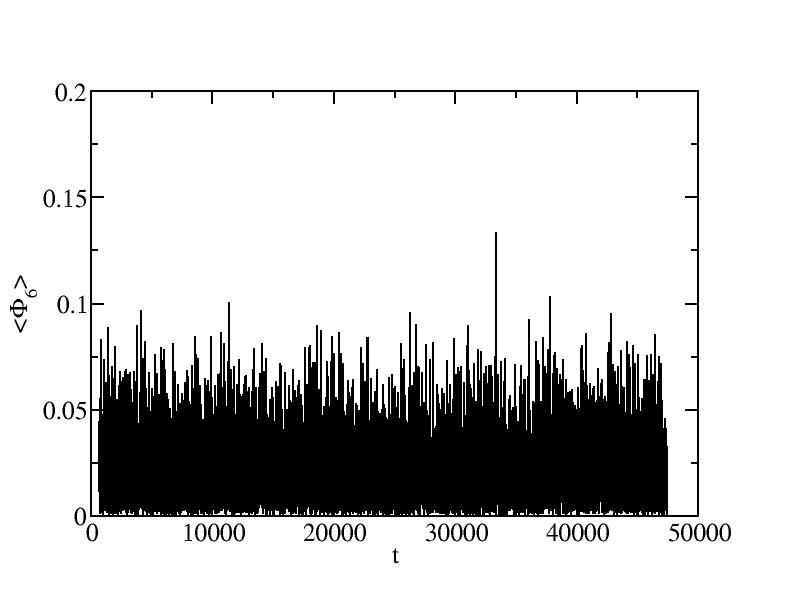

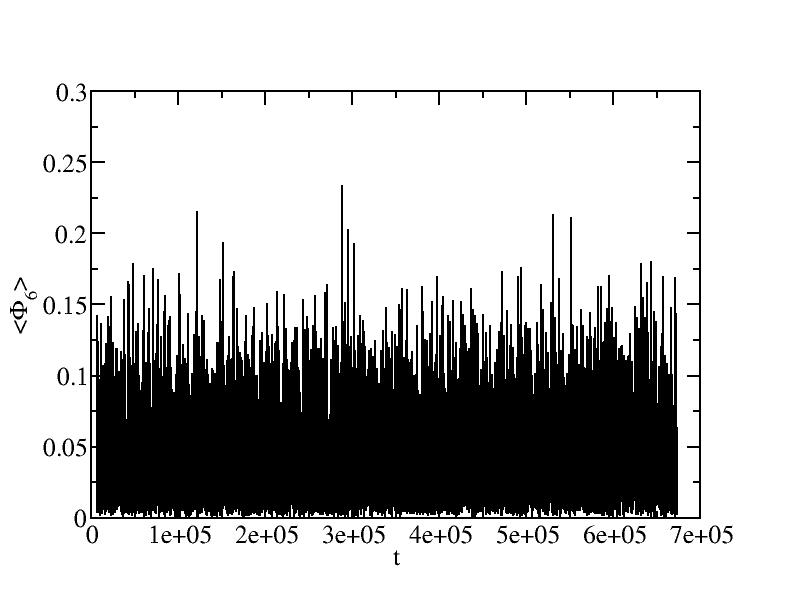

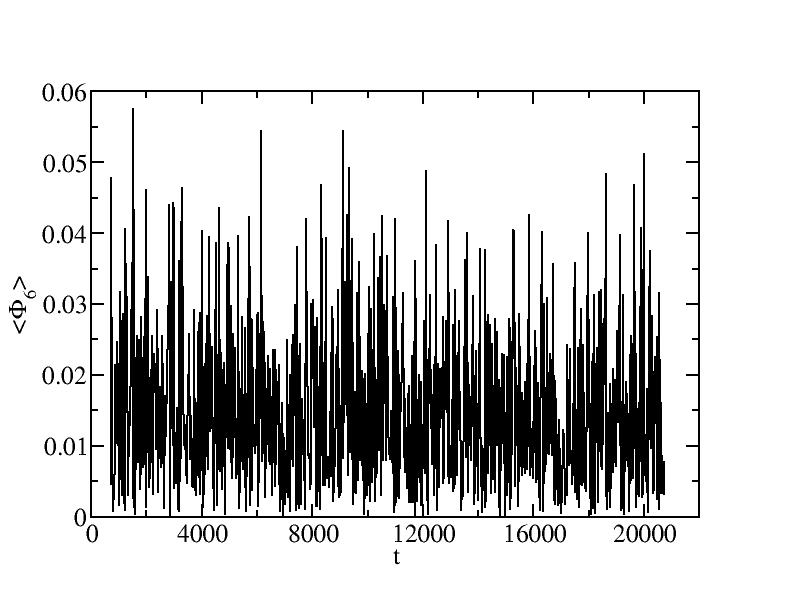

Phi6

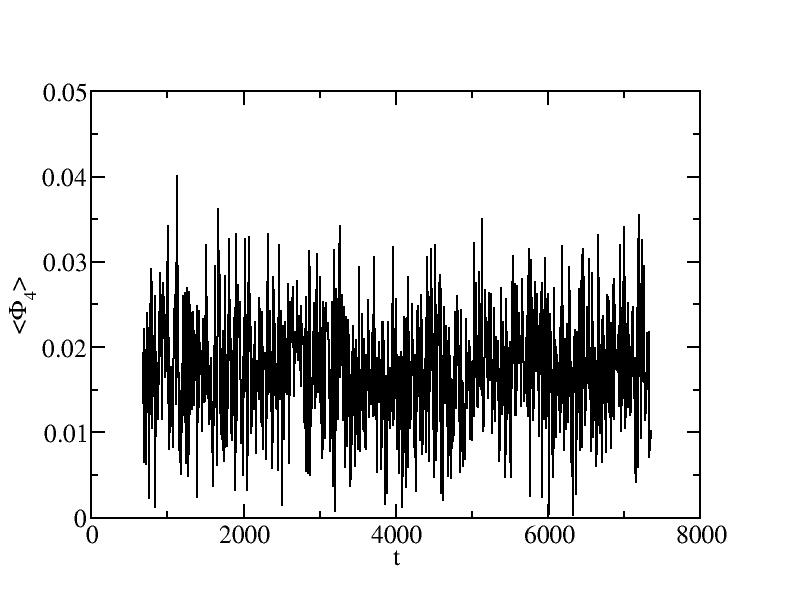

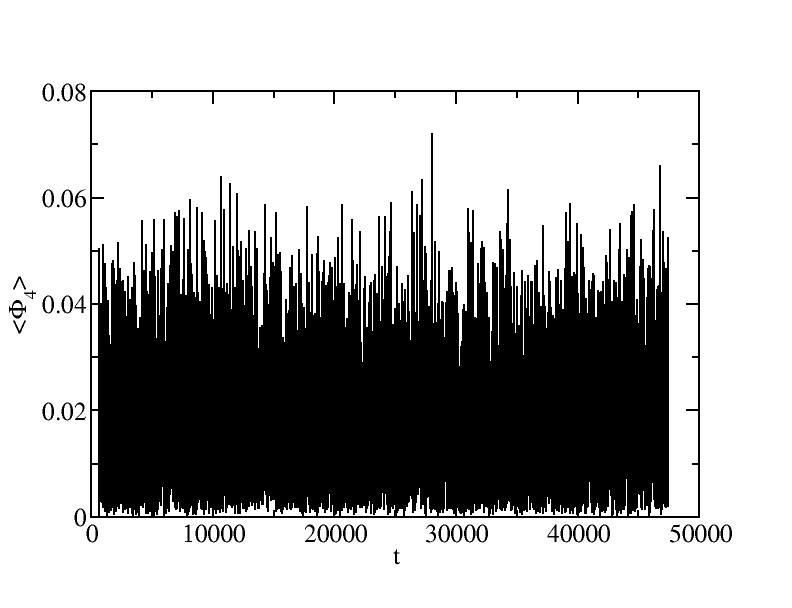

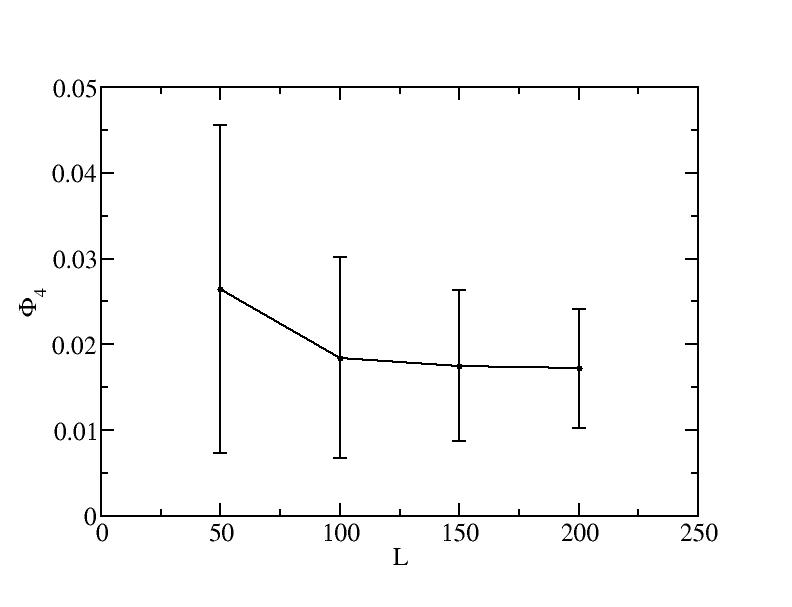

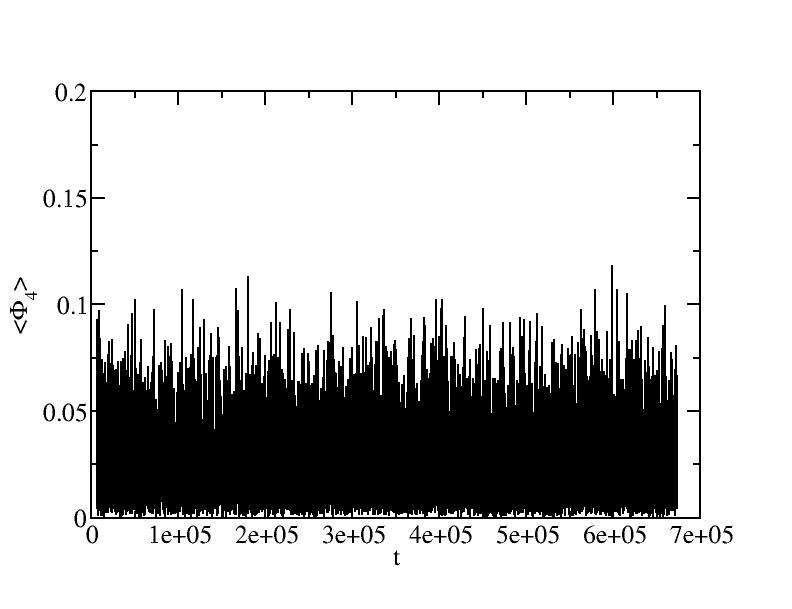

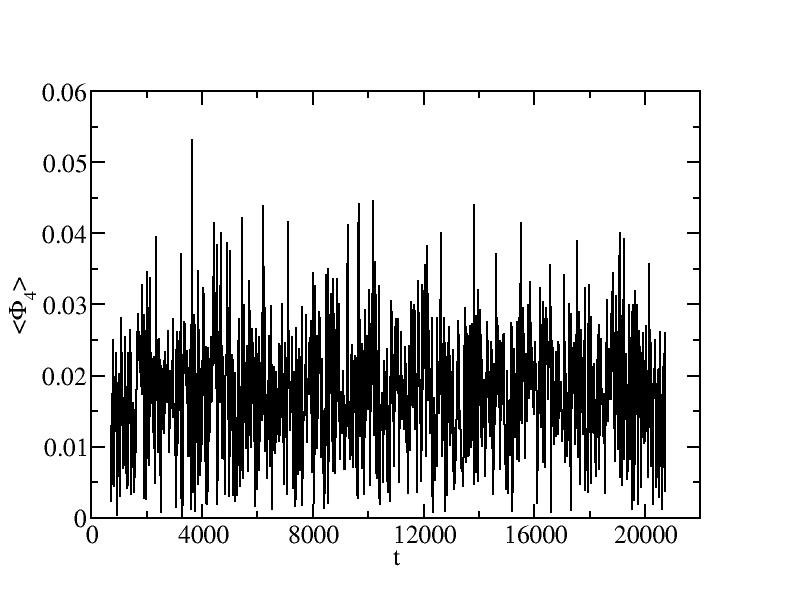

Phi4

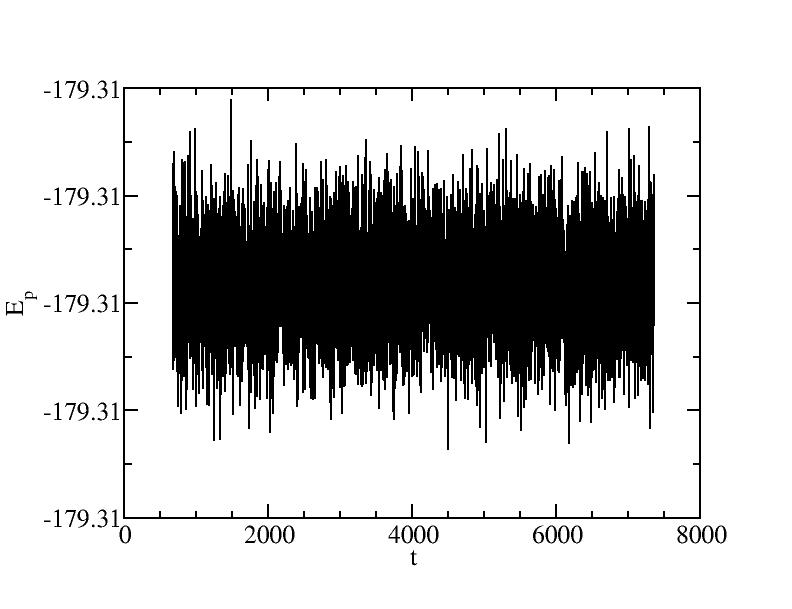

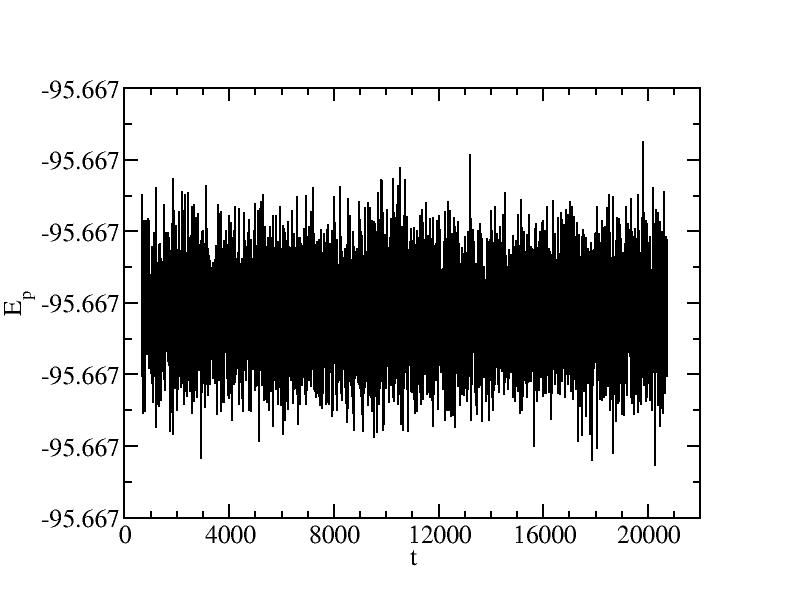

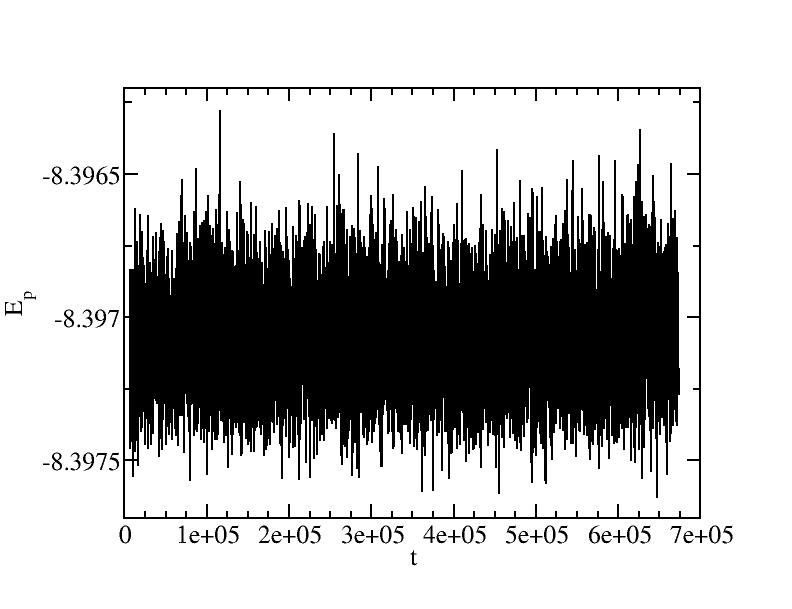

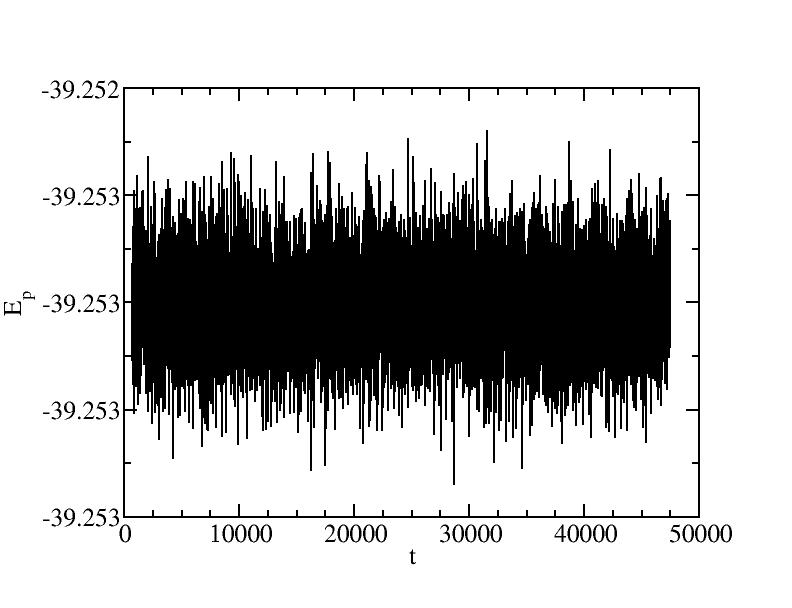

Potential energy
50x50
10^5
1.70947
100x100
7000
1.70191
150x150
3000
1.74201
200x200
1000
1.75534

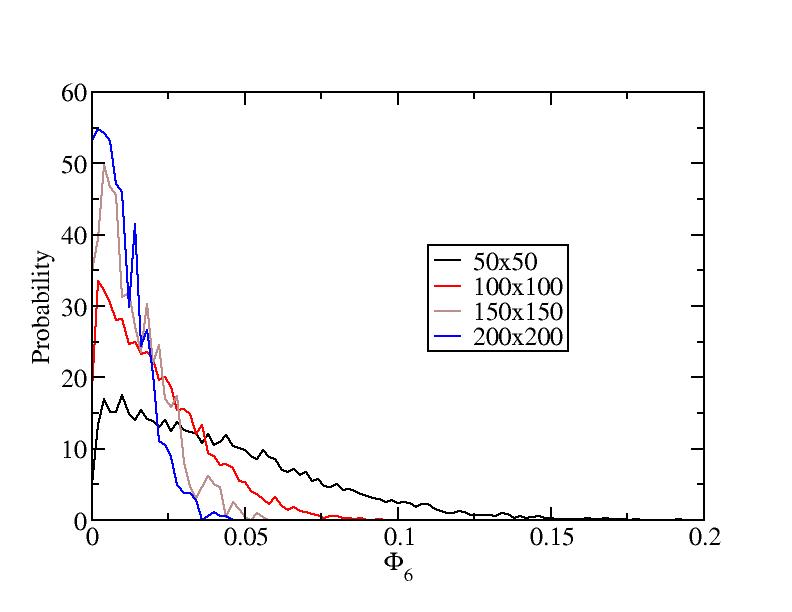

Histograms of Phi6 at T=0.05

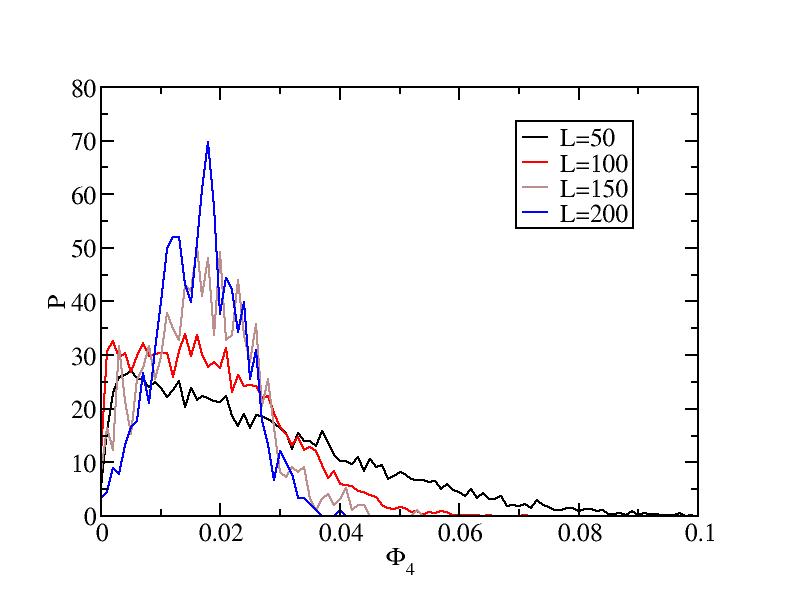

Histograms of Phi4 at T=0.05
