July 12 2004
Dense triangular system (f=1/25) with E=0.02-0.05 at T=0.003
Four sizes of L=60, 80, 100, 120 have been started from the ground state.
The systems are driven serially through E=0.02, 0.03, 0.04, and 0.05 with
equal passes for each size. The passes for different sizes are in the
following table.
| Size |
Passes |
| 60 |
60000 |
| 80 |
60000 |
| 100 |
26000 |
| 120 |
8000 |

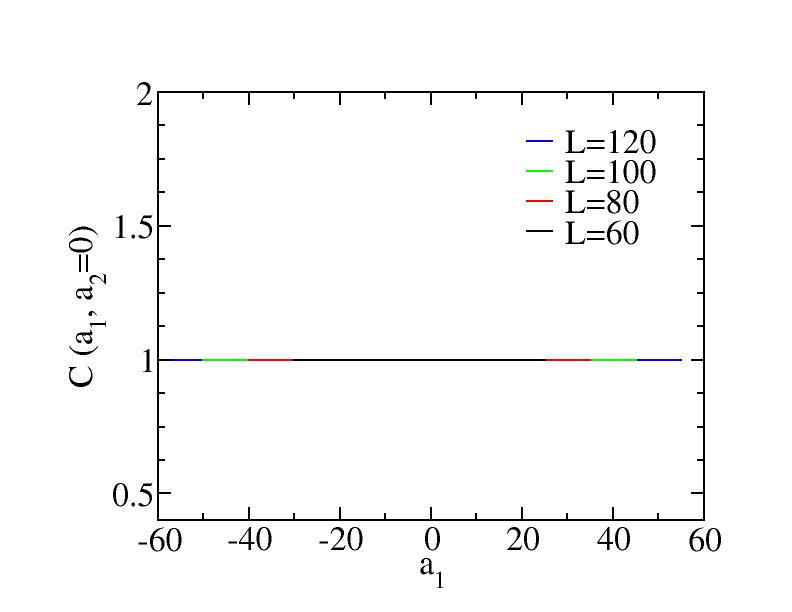

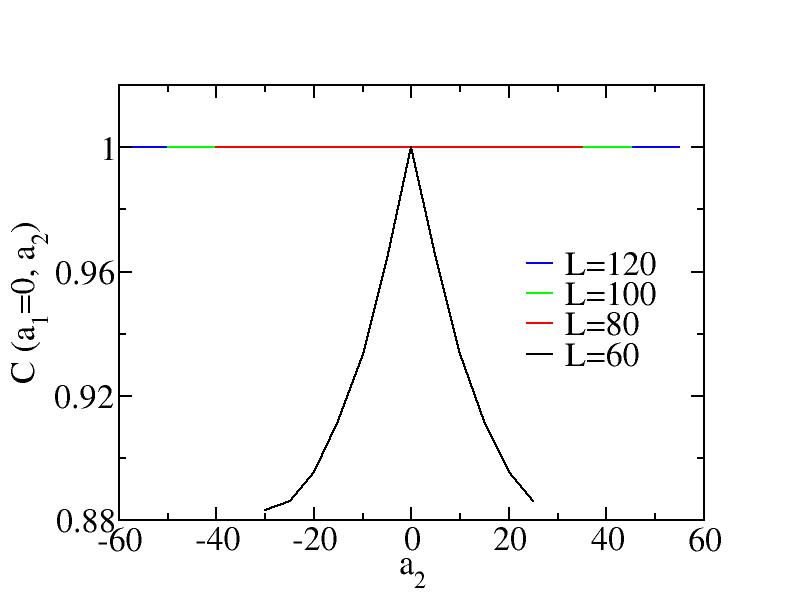

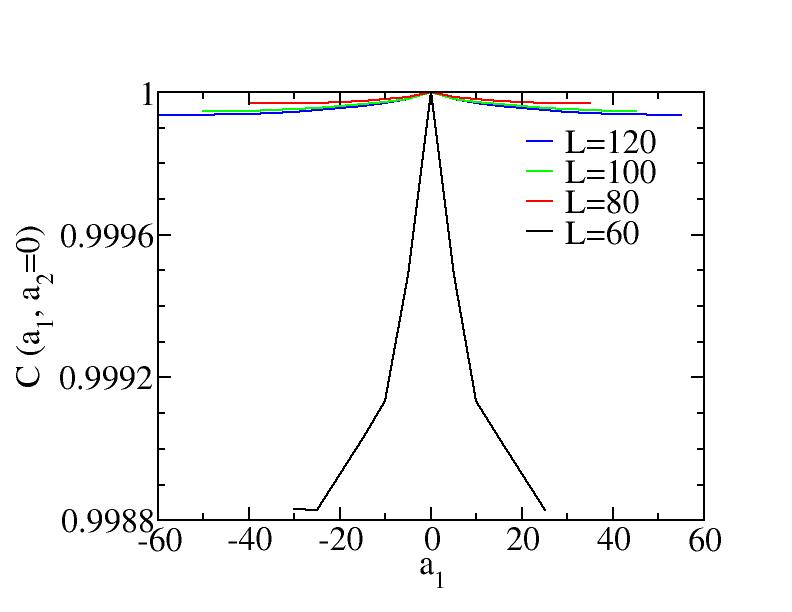

Real space correlation function
The structure functions of runs with E=0.01 are not shown below, but
the profiles of the real space corrleation functions are shown here.
E=0.01
E=0.02

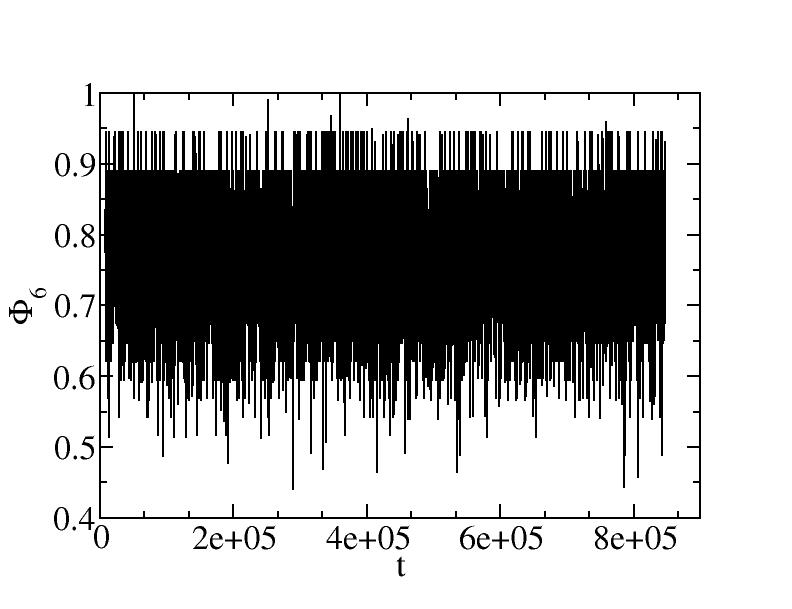

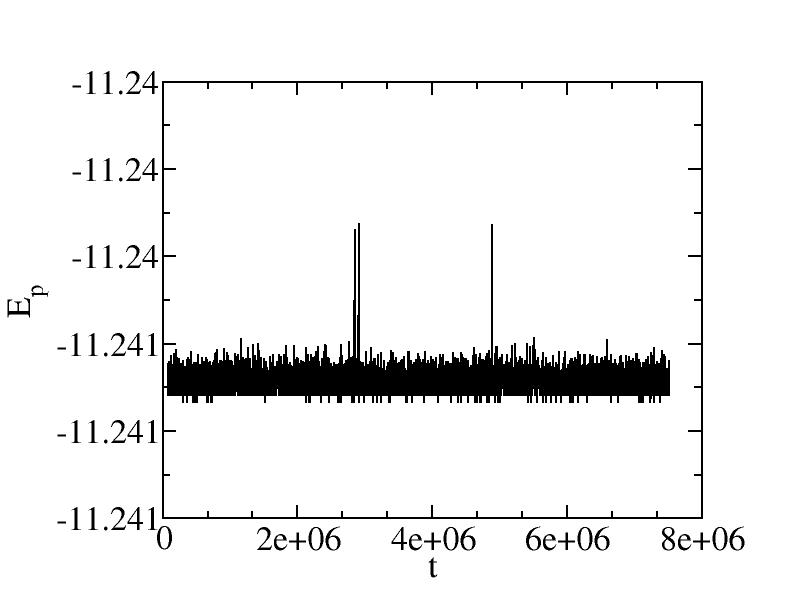

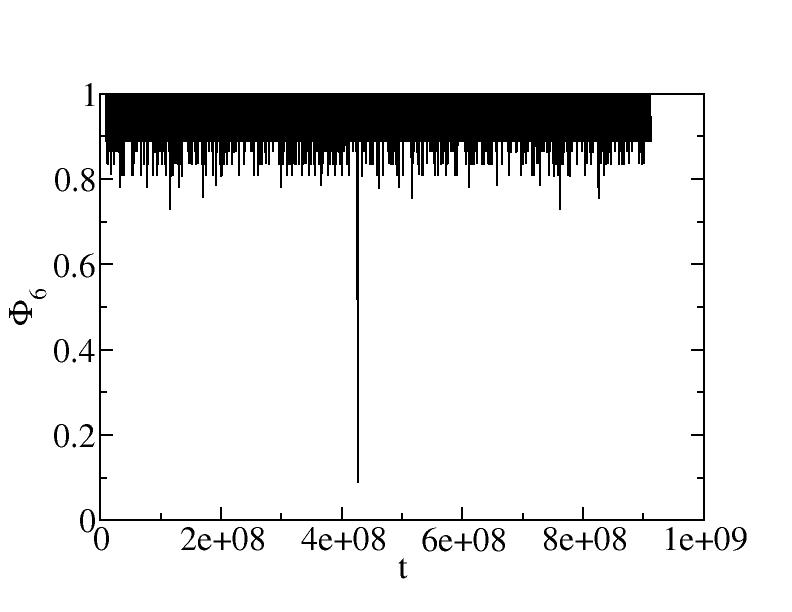

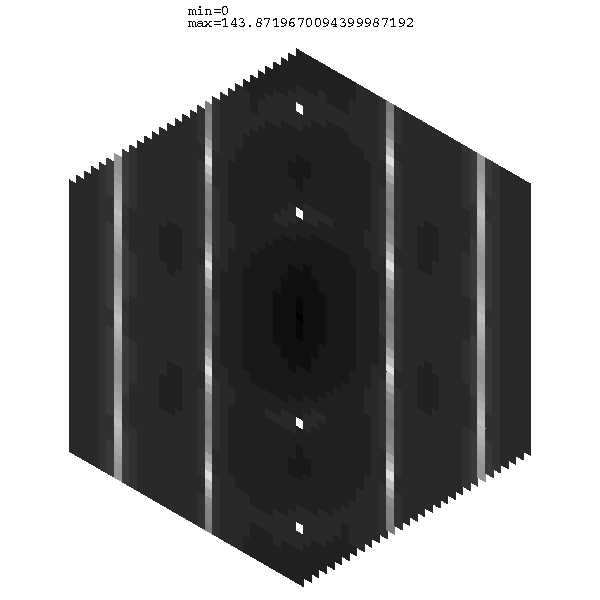

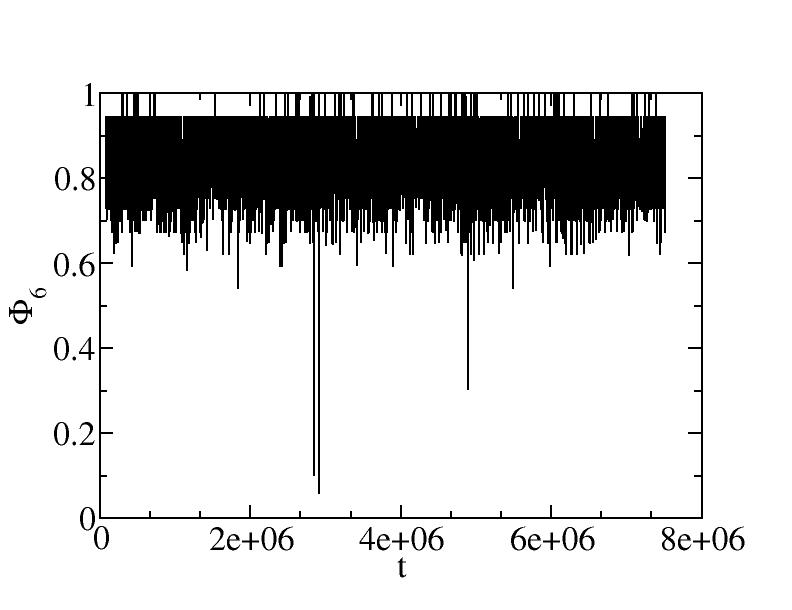

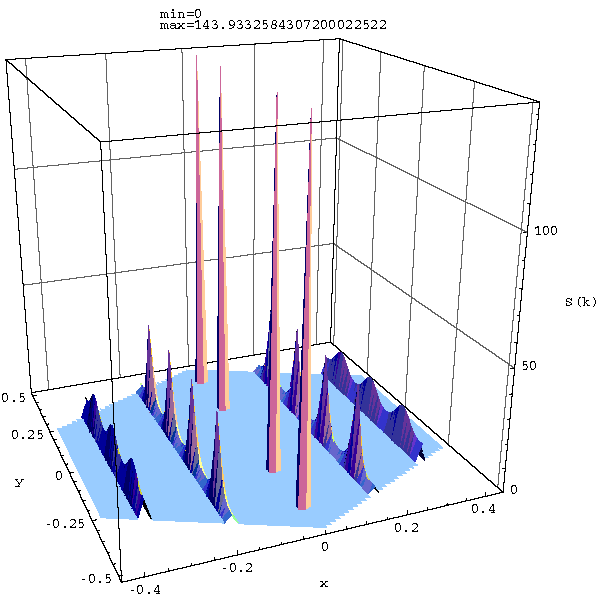

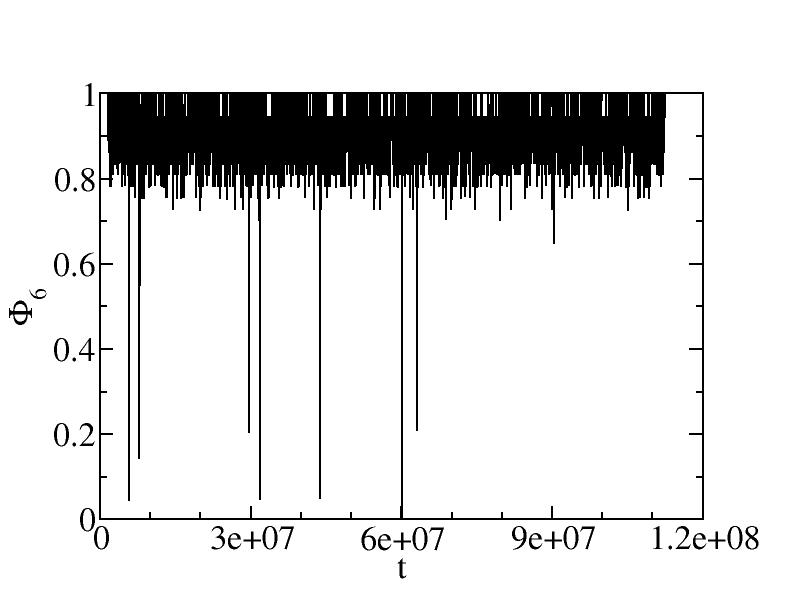

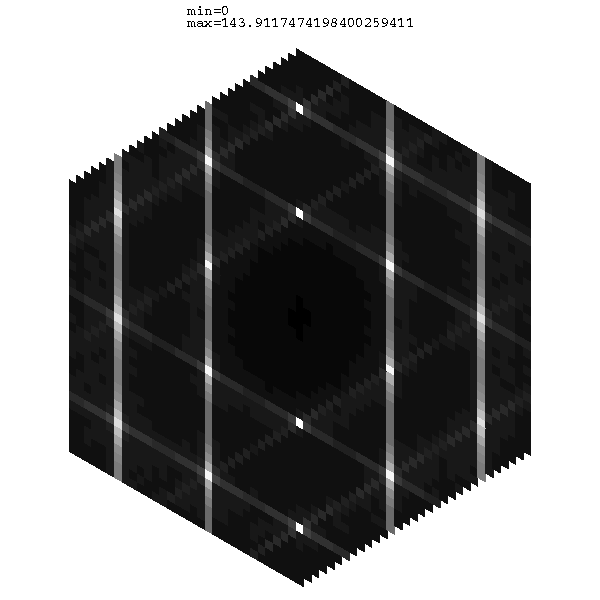

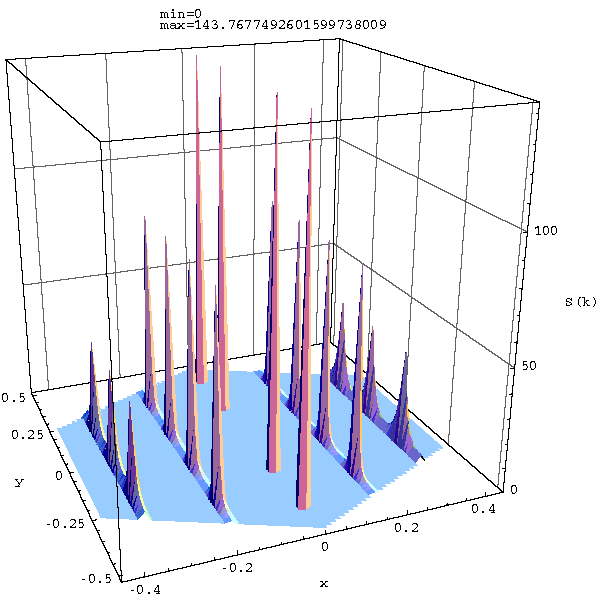

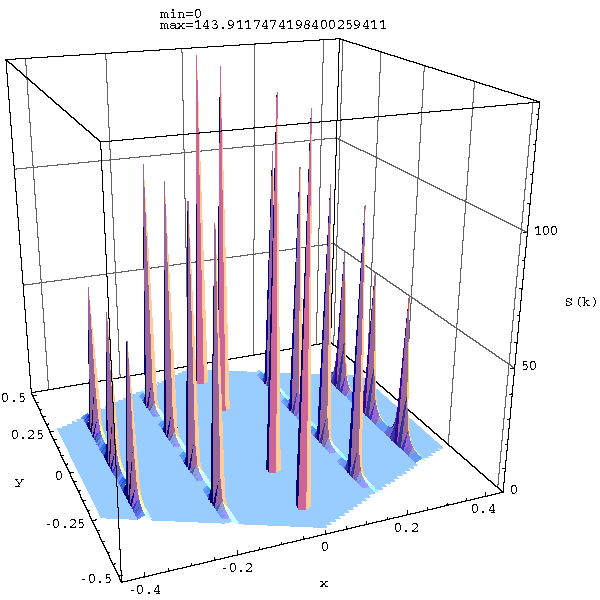

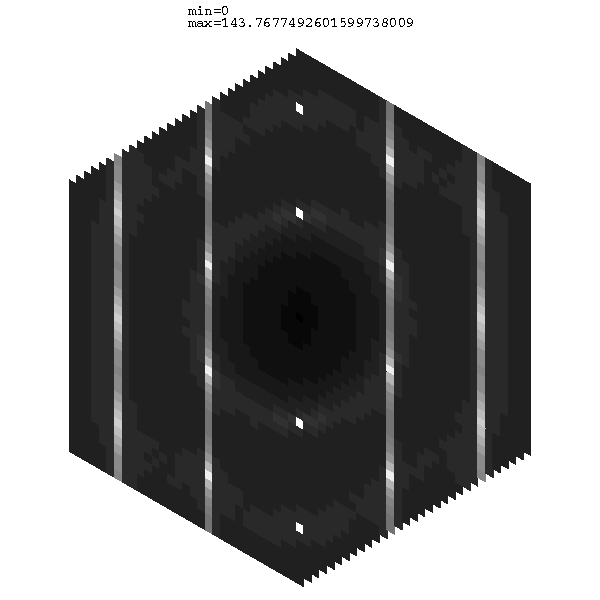

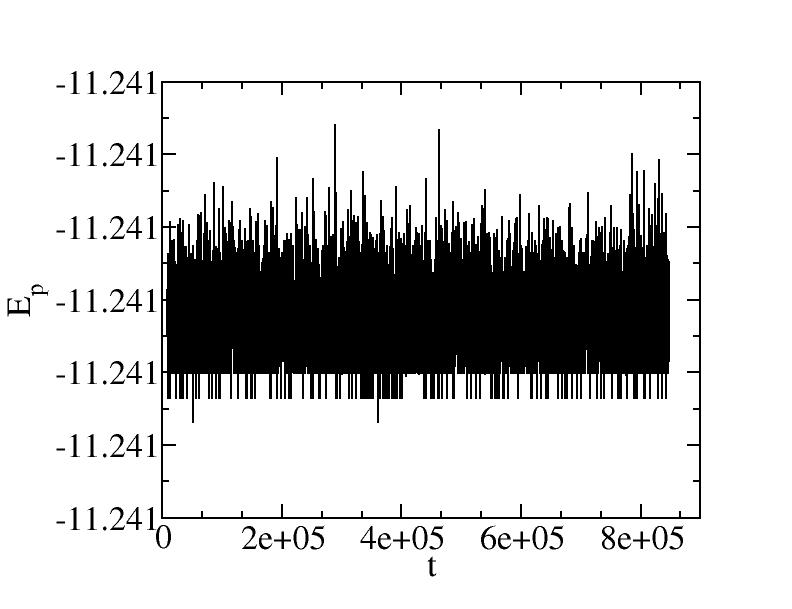

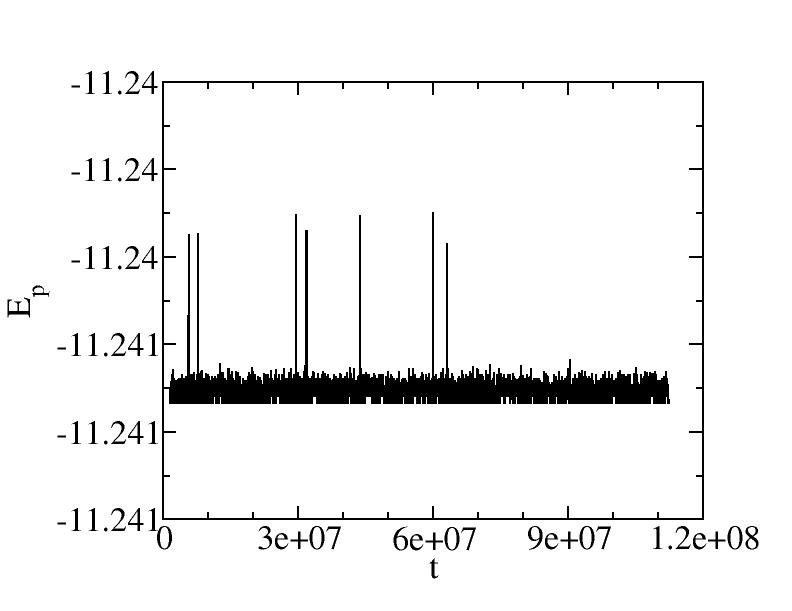

L=60
| E |
Max height |
Structure function |
Intensity plot |
Phi6 |
Potential energy |

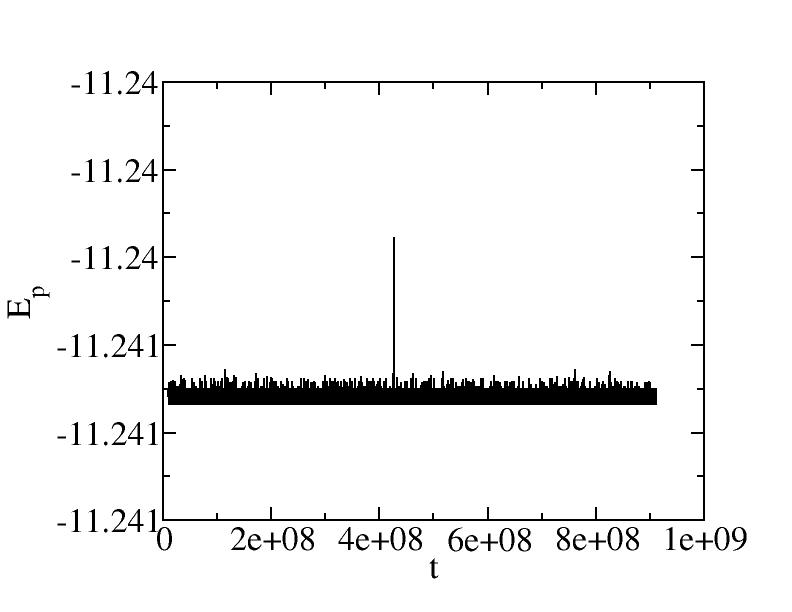

| 0.02 |
143.912 |
 |
 |
 |
 |
| 0.03 |
143.768 |
 |
 |
 |
 |

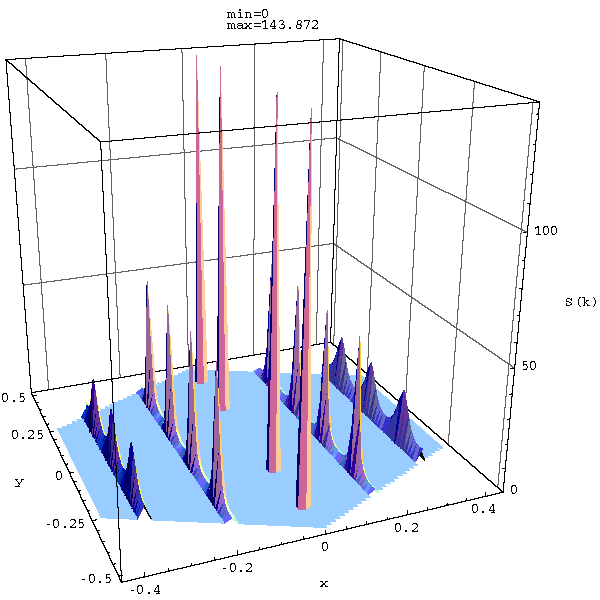

| 0.04 |
143.872 |
 |
 |
 |
 |

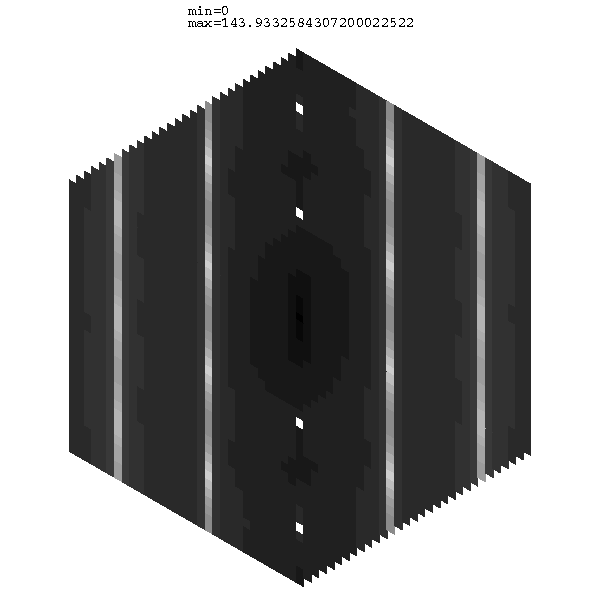

| 0.05 |
143.933 |
 |
 |
 |
 |

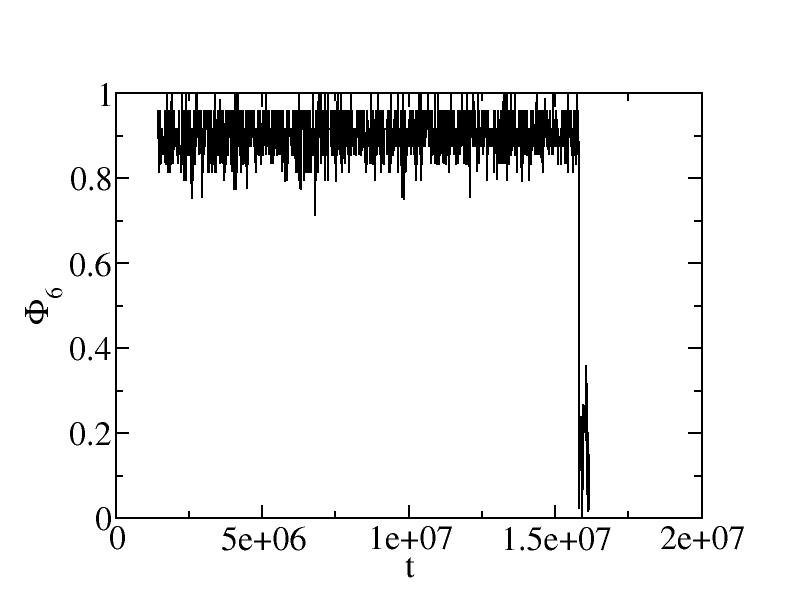

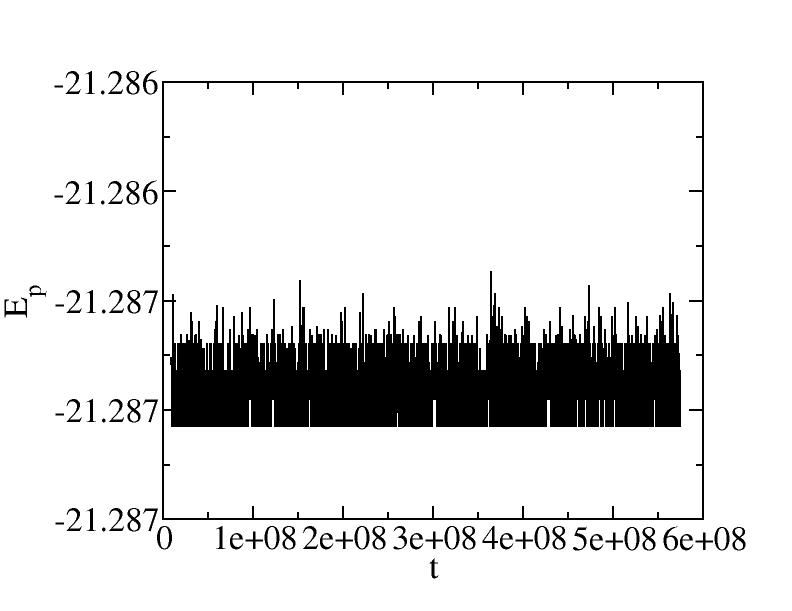

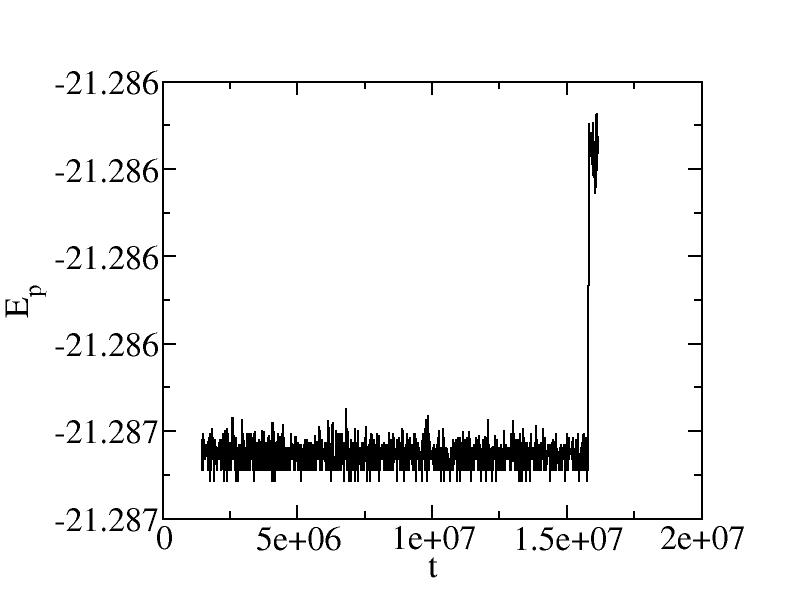

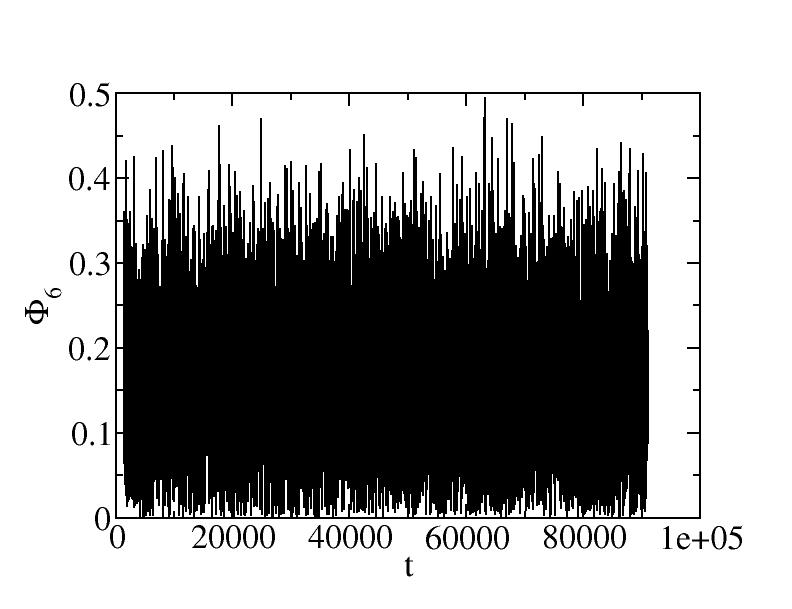

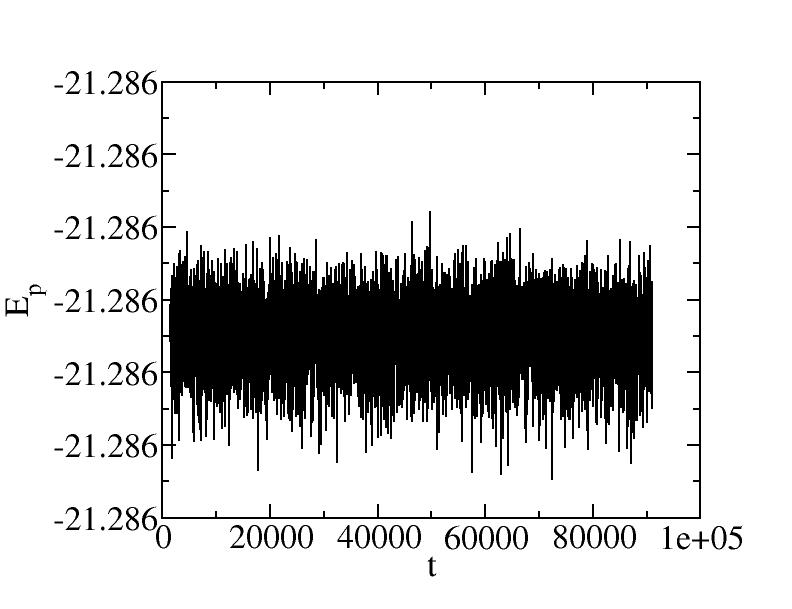

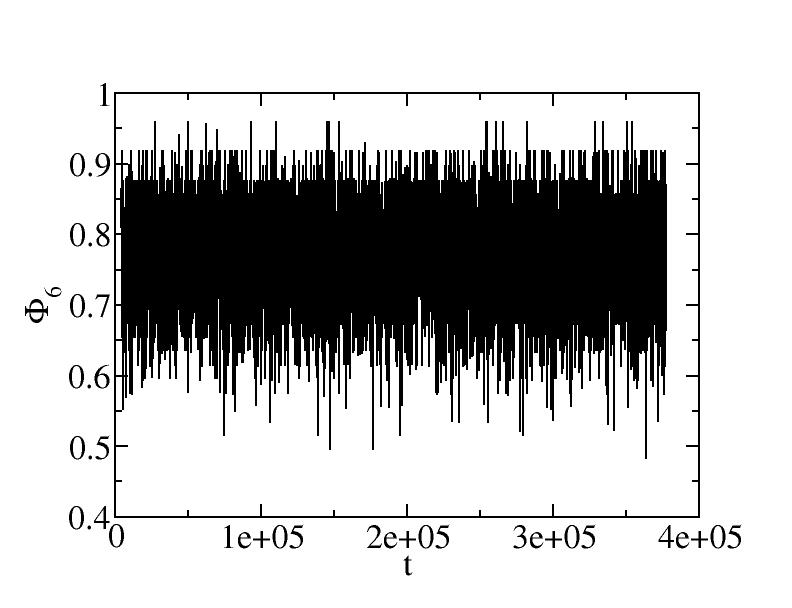

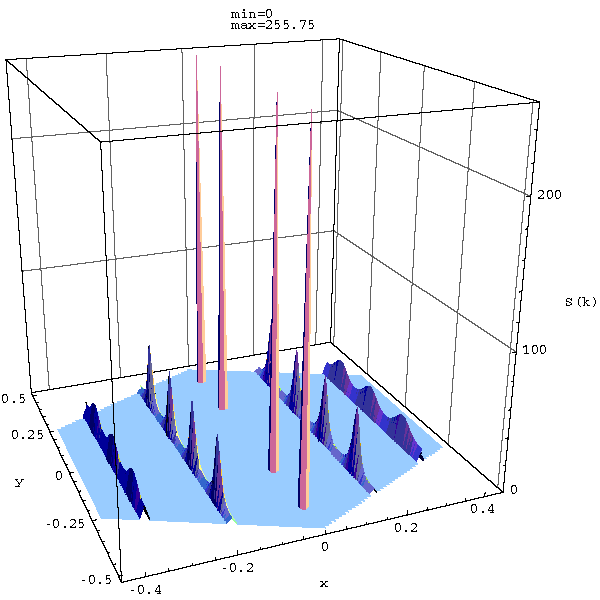

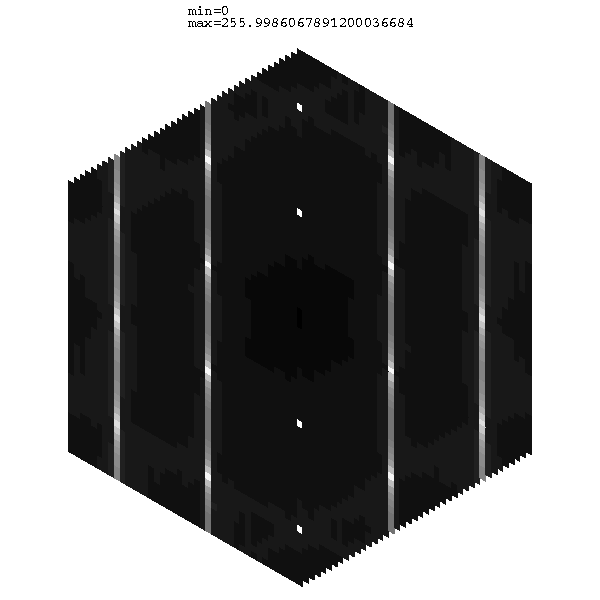

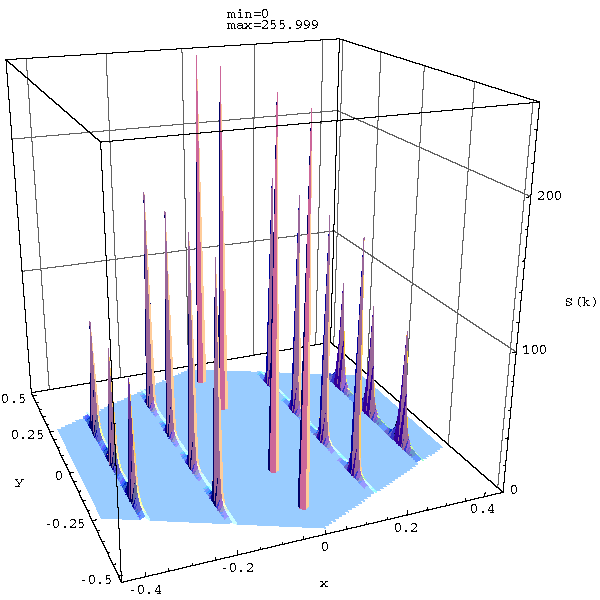

L=80
| E |
Max height |
Structure function |
Intensity plot |
Phi6 |
Potential energy |

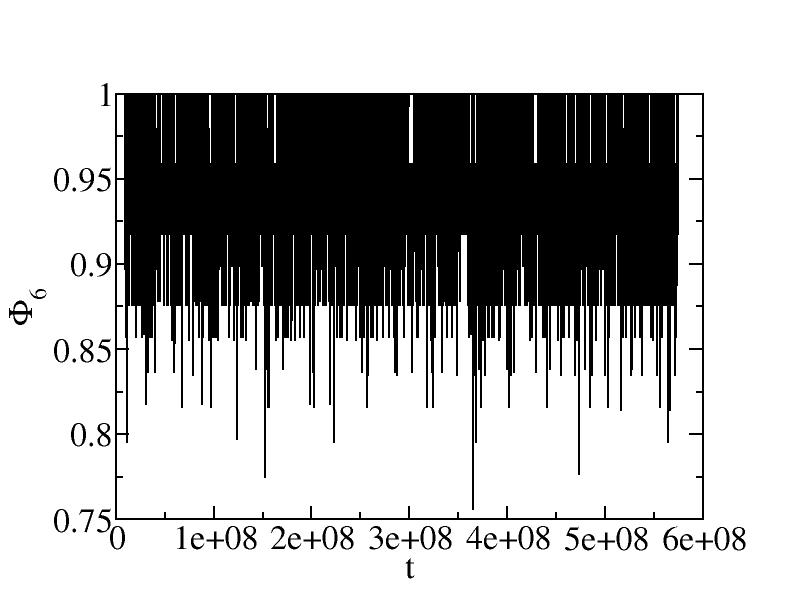

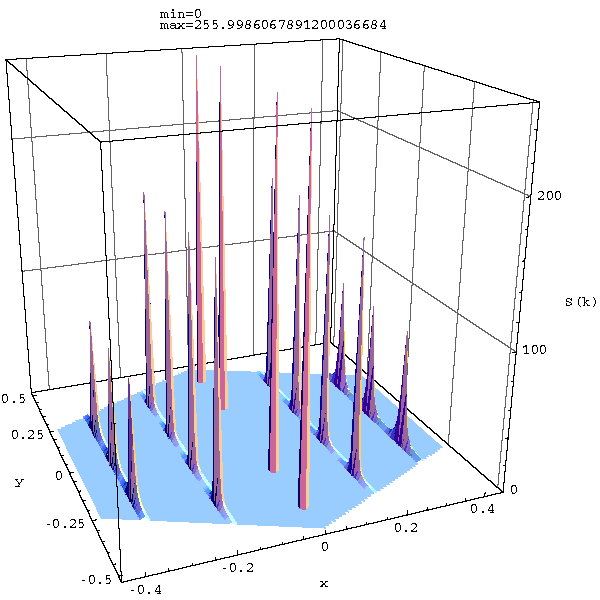

| 0.02 |
255.999 |
 |
 |
 |
 |
| 0.03 |
255.999 |
 |
 |
 |
 |

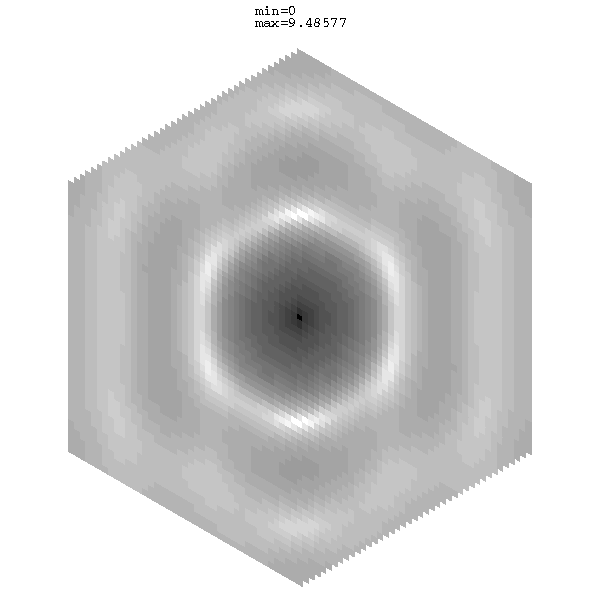

| 0.04 |
9.48577 |
 |
 |
 |
 |

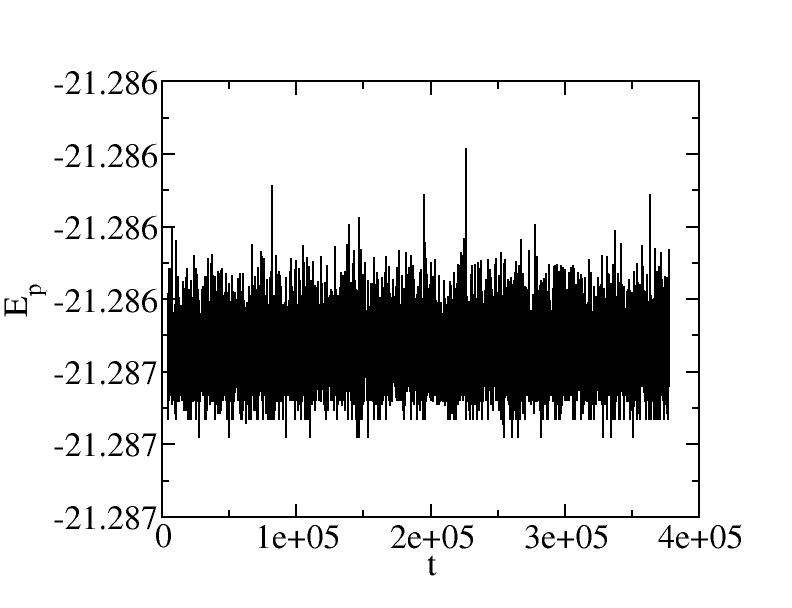

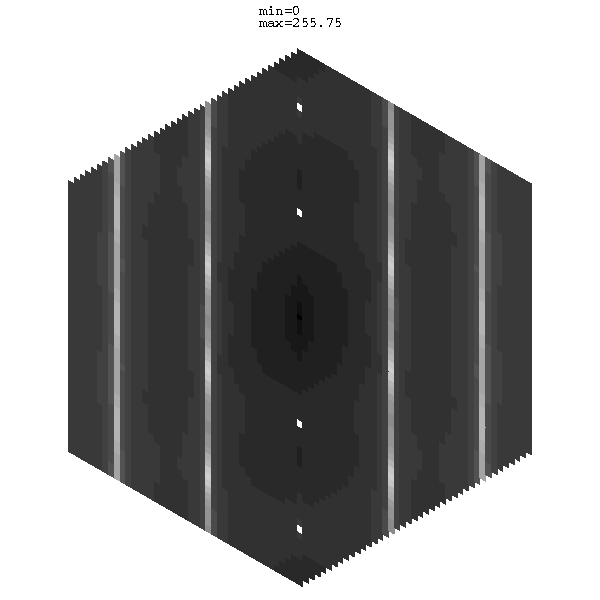

| 0.05 |
255.75 |
 |
 |
 |
 |

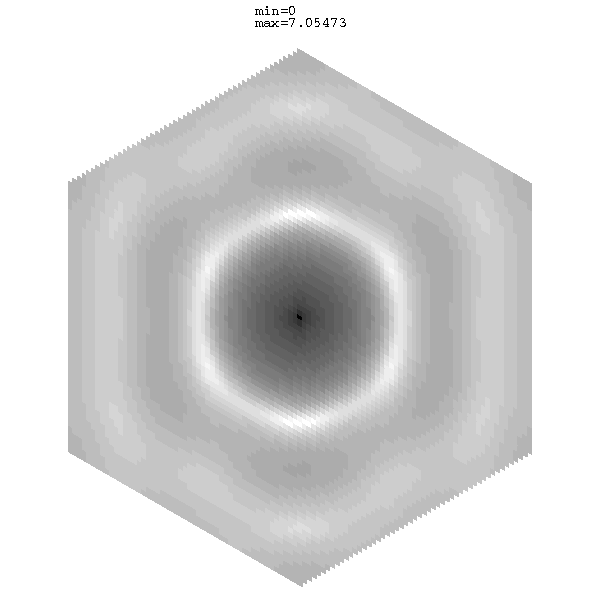

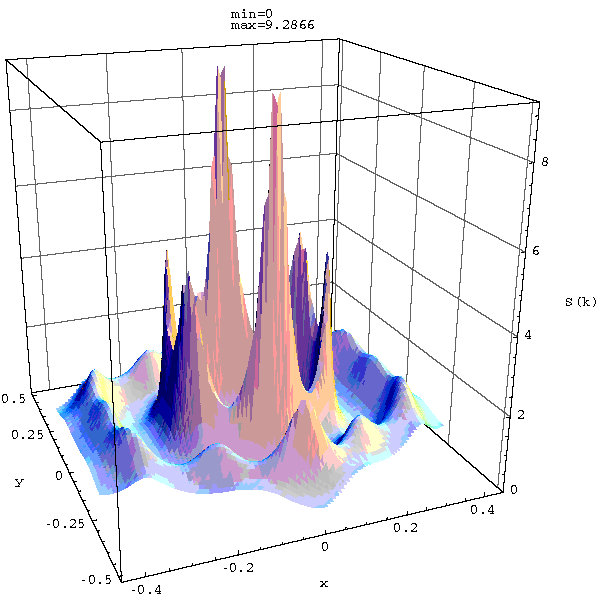

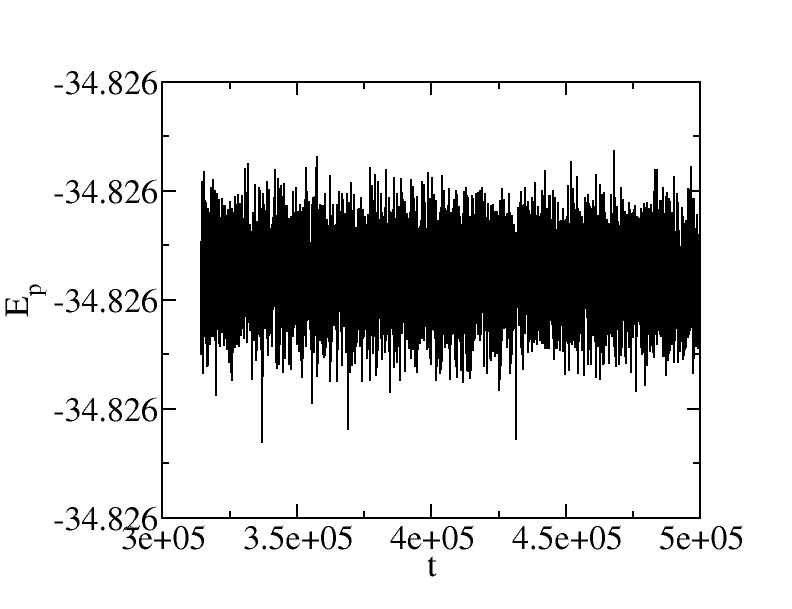

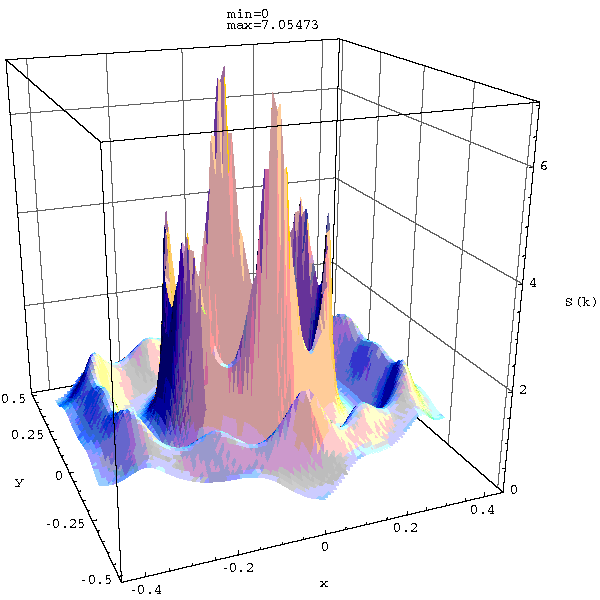

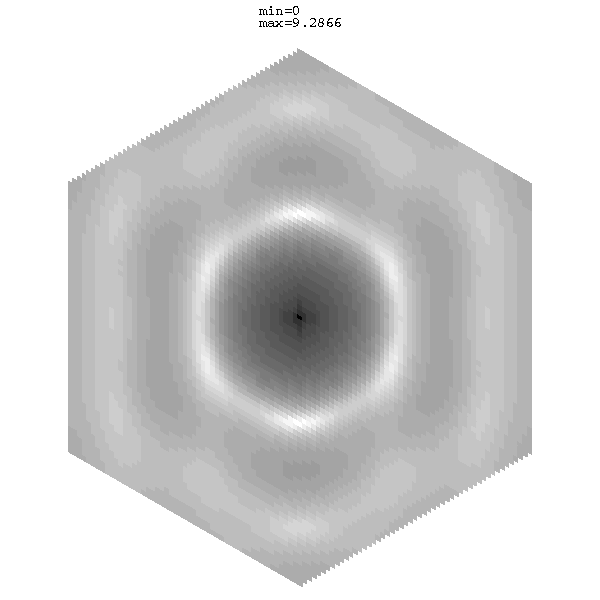

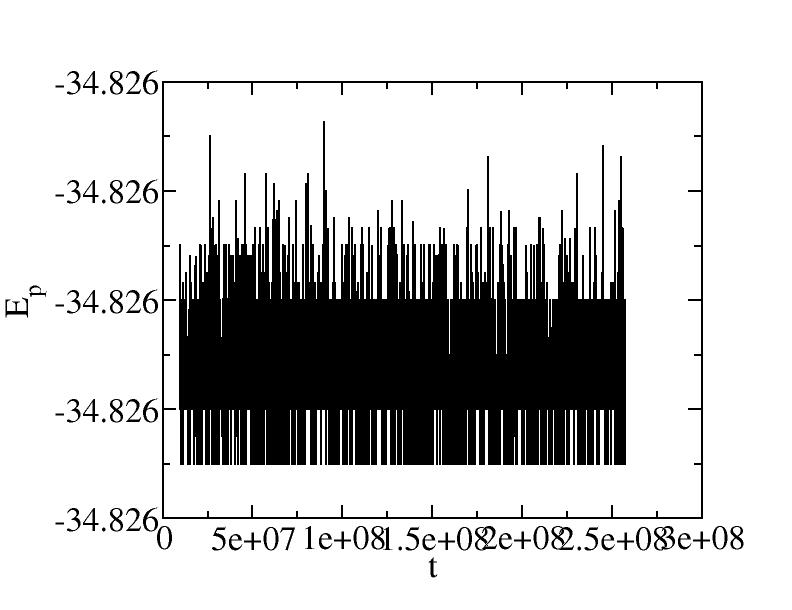

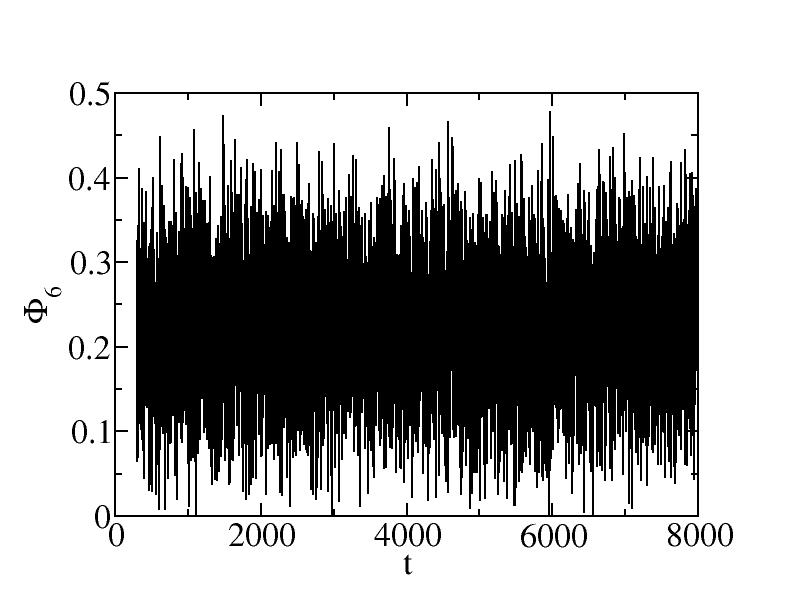

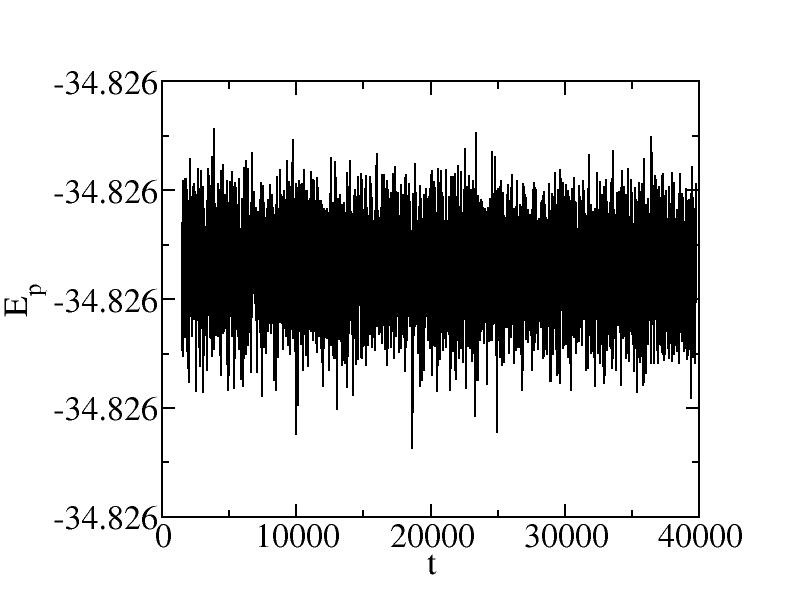

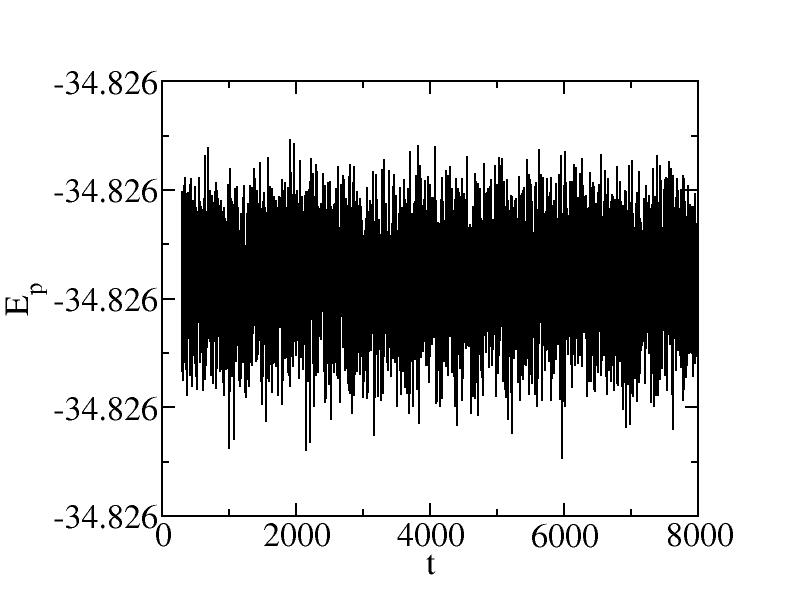

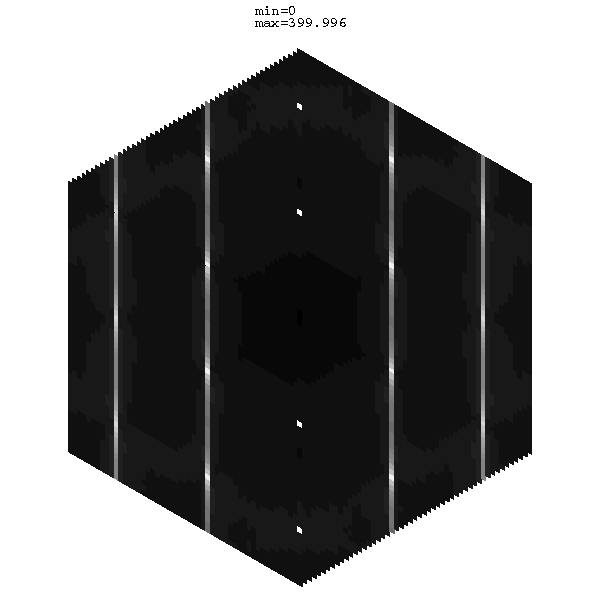

L=100
| E |
Max height |
Structure function |
Intensity plot |
Phi6 |
Potential energy |

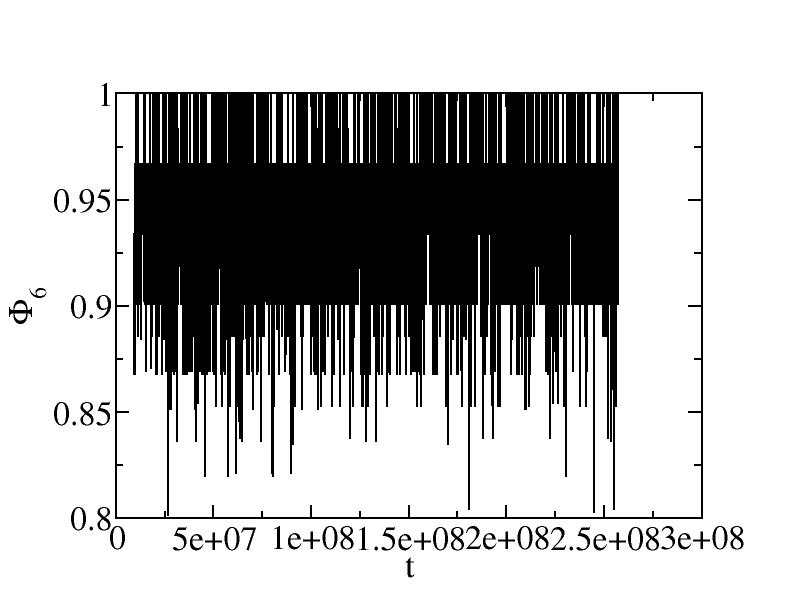

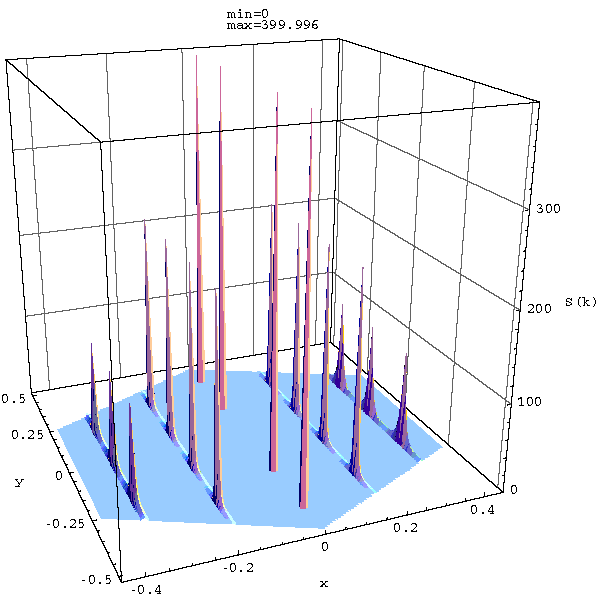

| 0.02 |
399.996 |
 |
 |
 |
 |

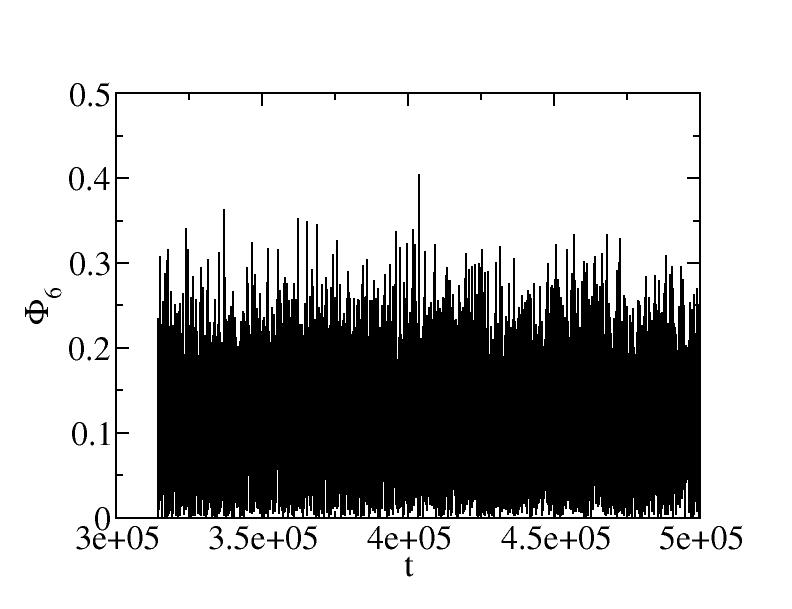

| 0.03 |
7.05473 |
 |
 |
 |
 |

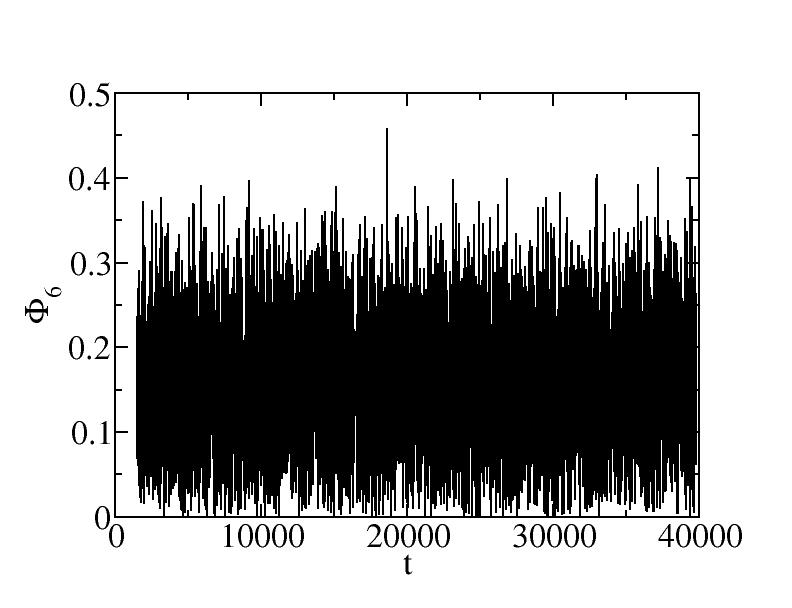

| 0.04 |
9.2866 |
 |
 |
 |
 |

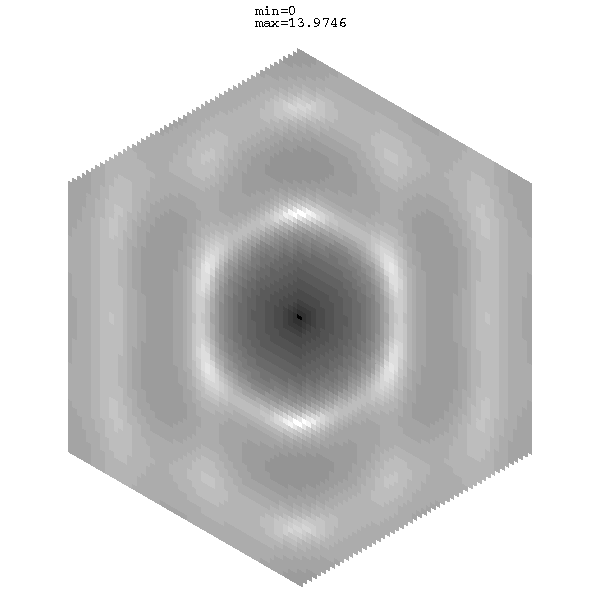

| 0.05 |
13.9746 |
 |
 |
 |
 |

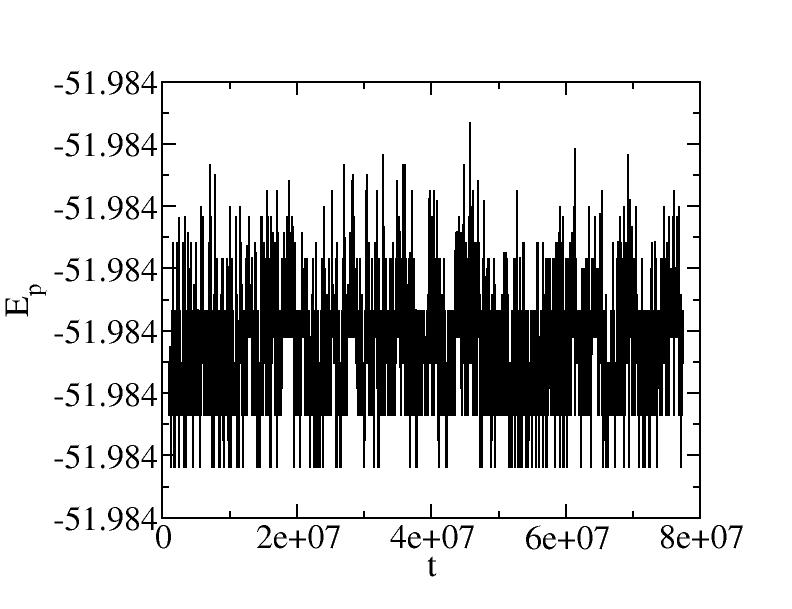

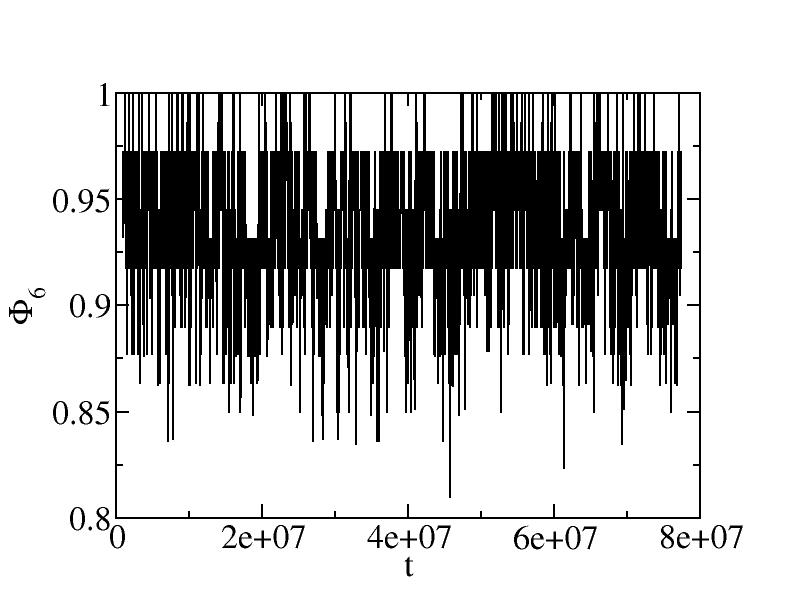

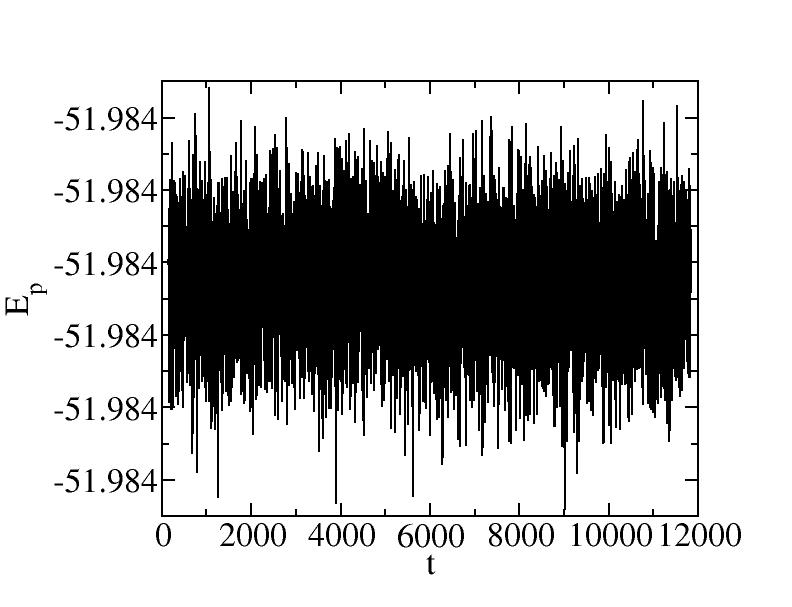

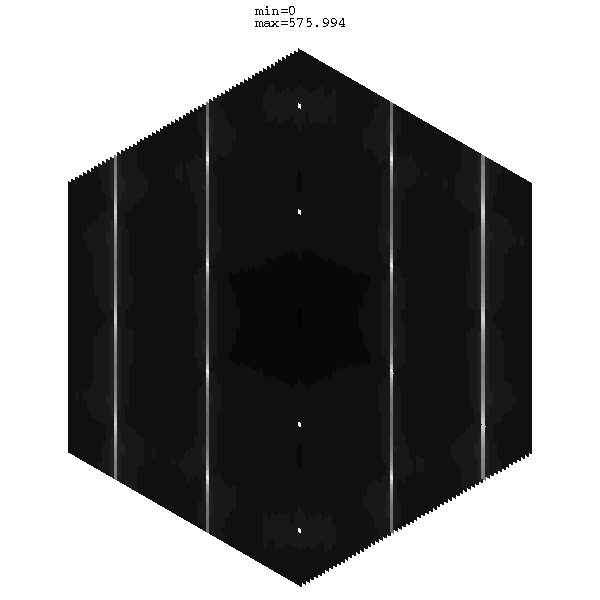

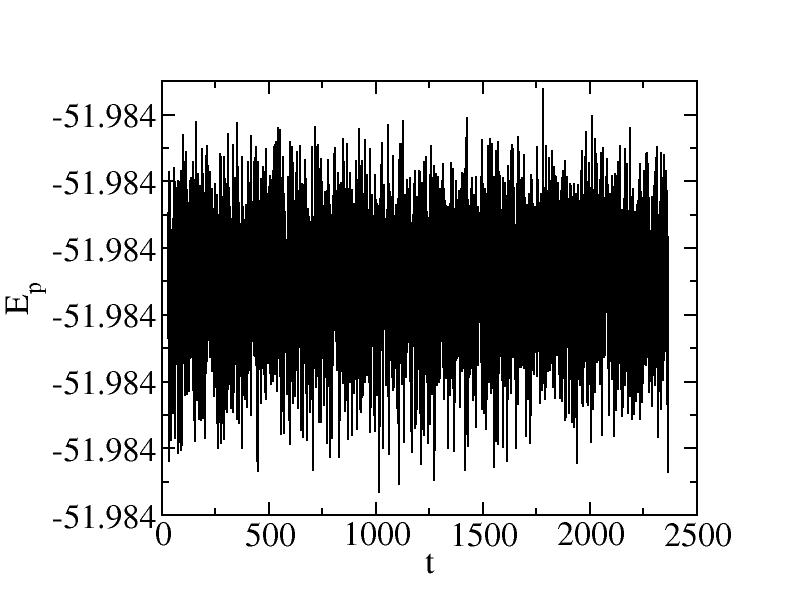

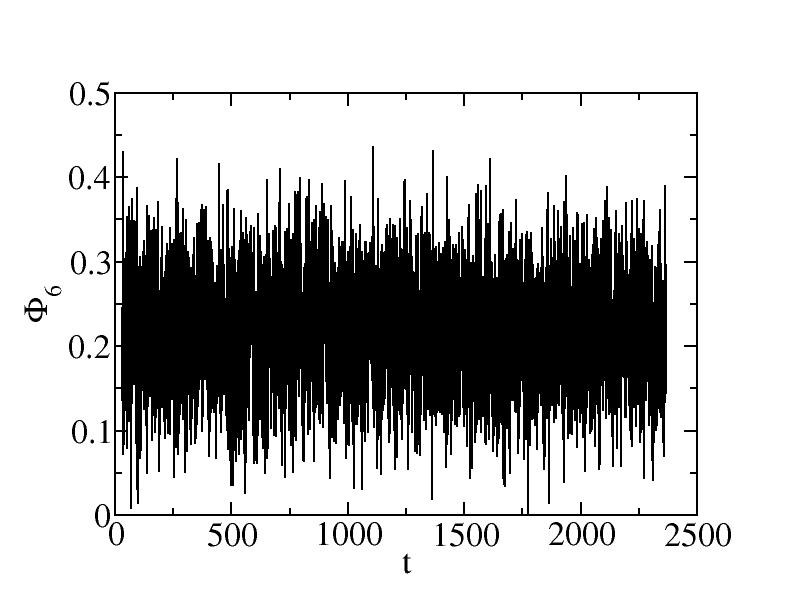

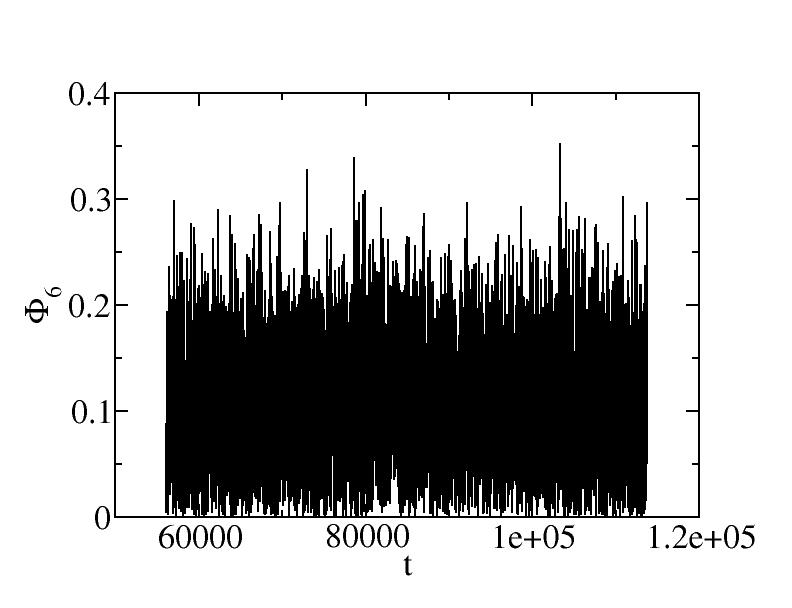

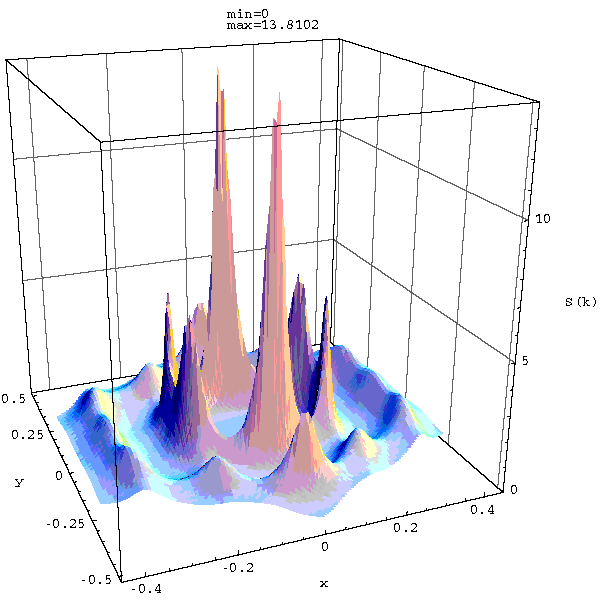

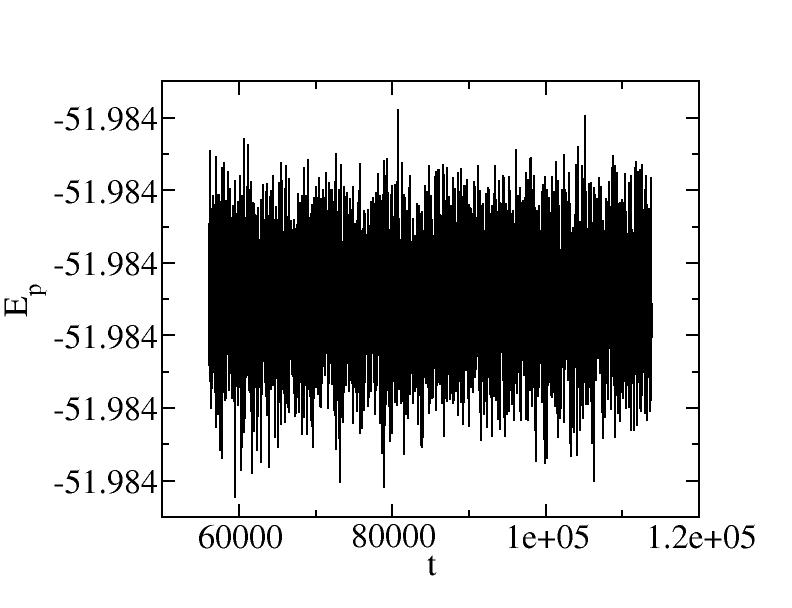

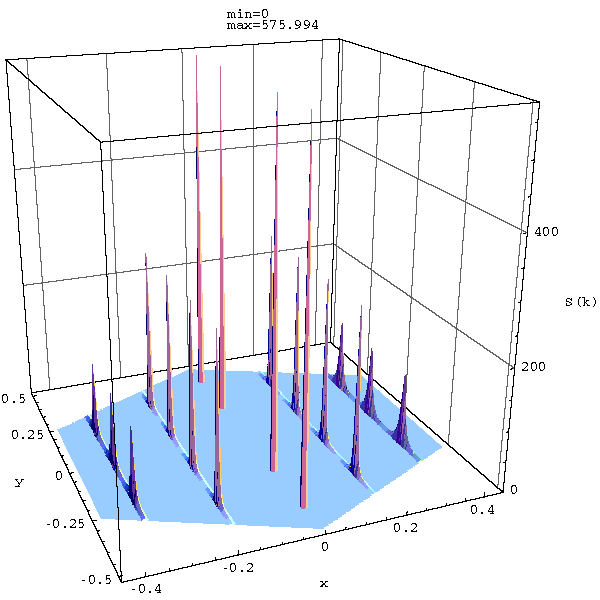

L=120
| E |
Max height |
Structure function |
Intensity plot |
Phi6 |
Potential energy |
| 0.02 |
575.994 |
 |
 |
 |
 |
| 0.03 |
6.97681 |
 |
 |
 |
 |

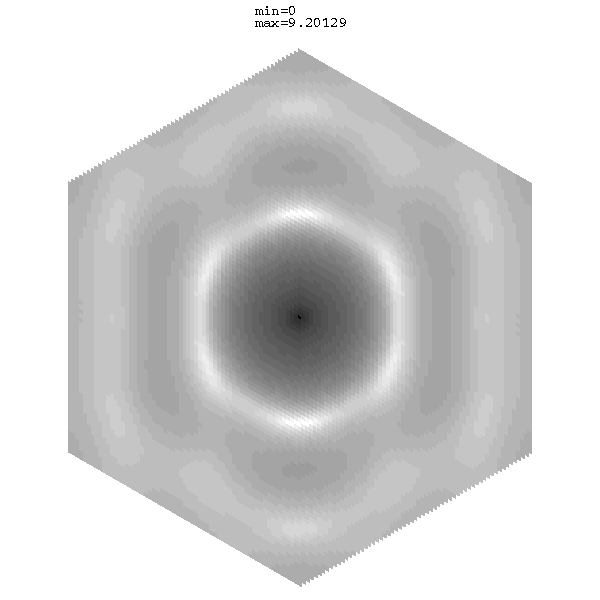

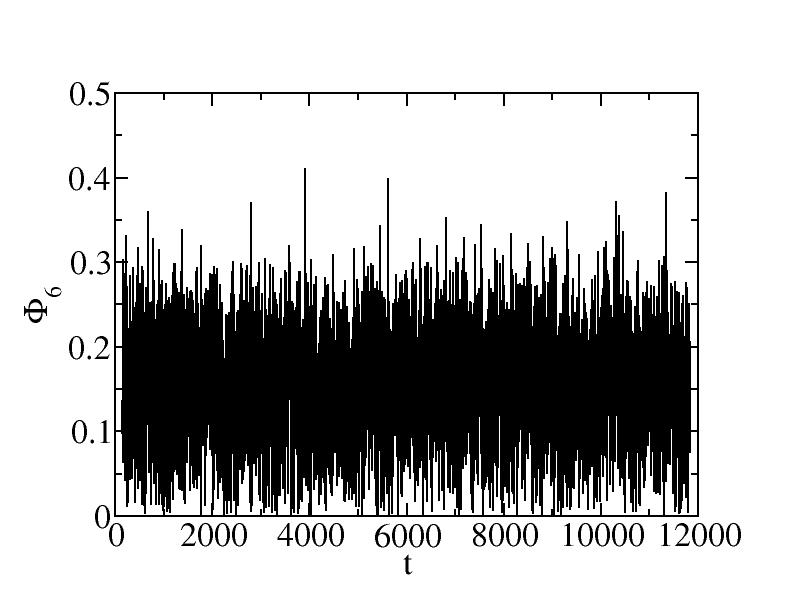

| 0.04 |
9.20129 |
 |
 |
 |
 |
| 0.05 |
13.8102 |
 |
 |
 |
 |

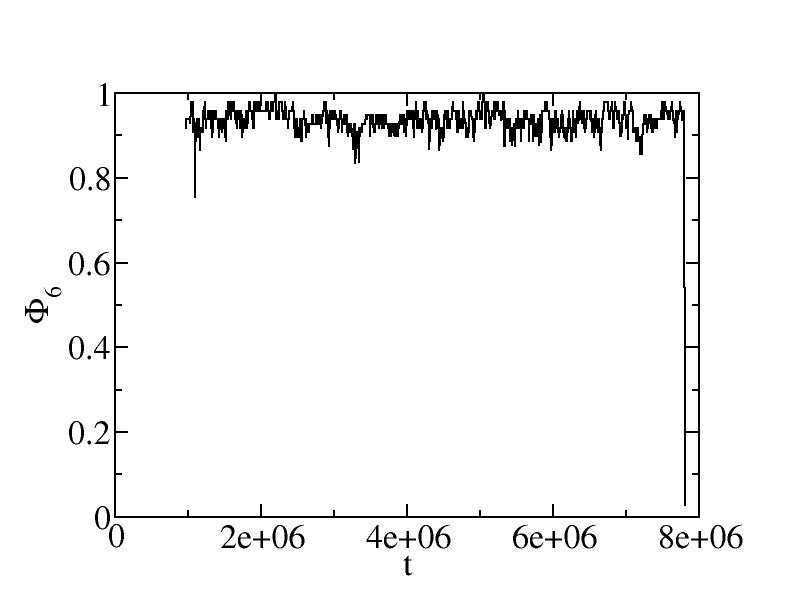

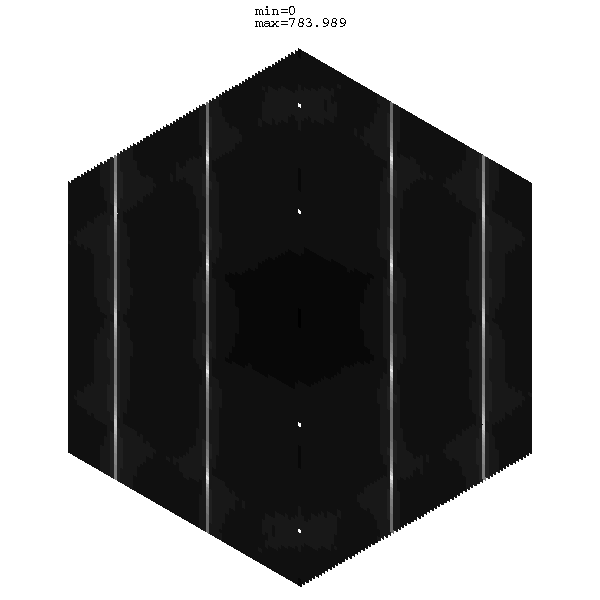

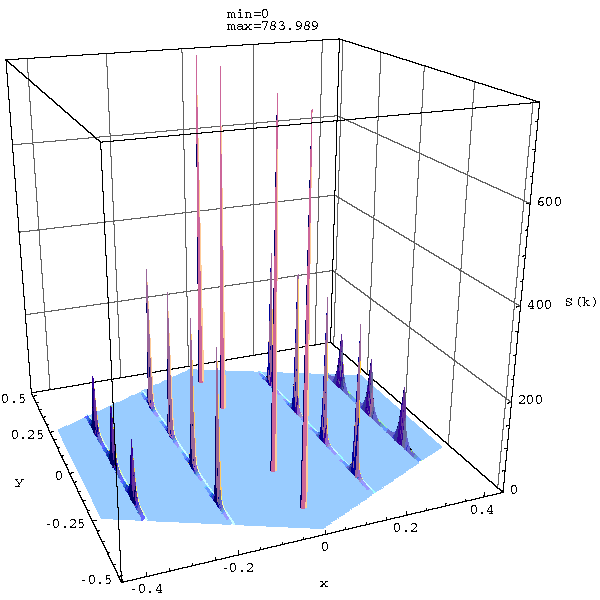

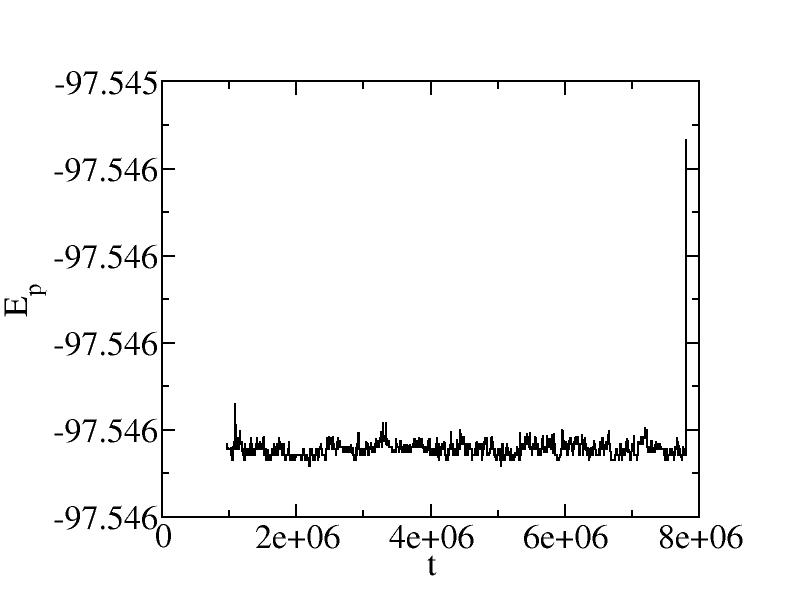

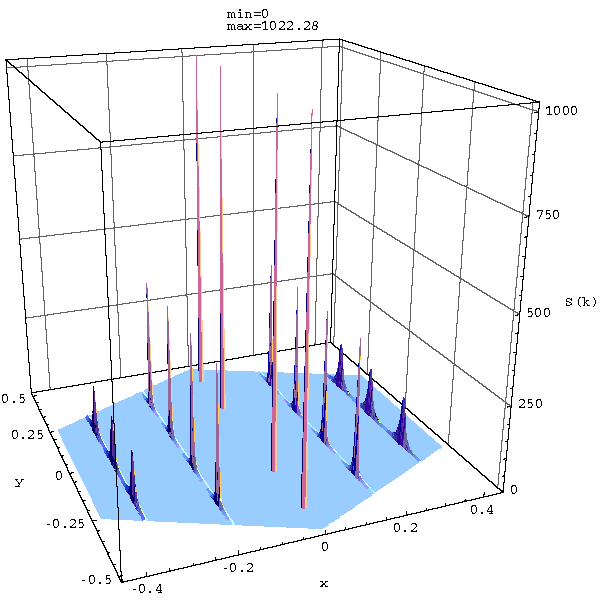

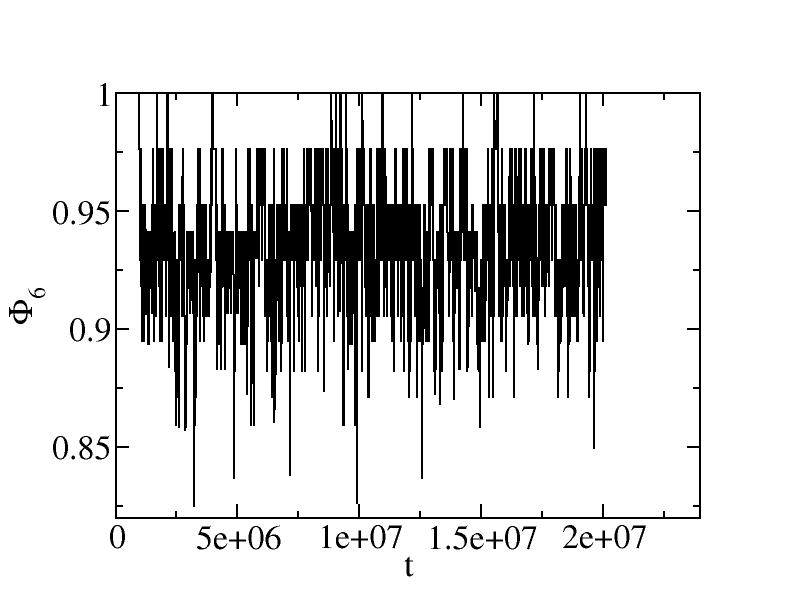

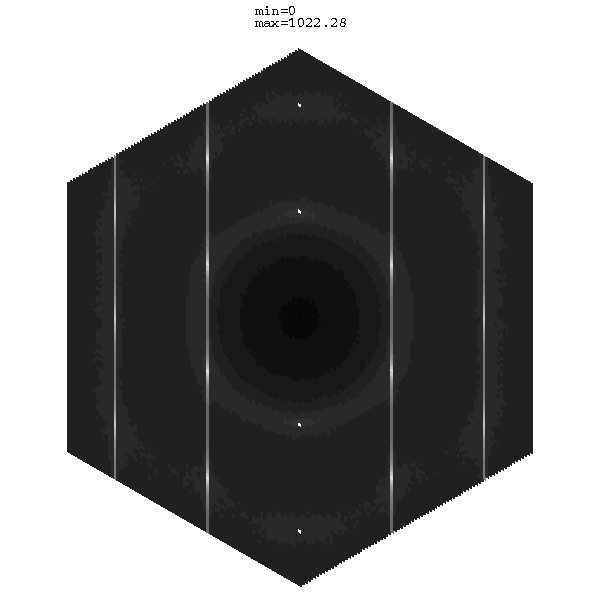

Bigger sizes with E=0.02
| L |
Passes |
Max height |
Structure function |
Intensity plot |
Phi6 |
Potential energy |

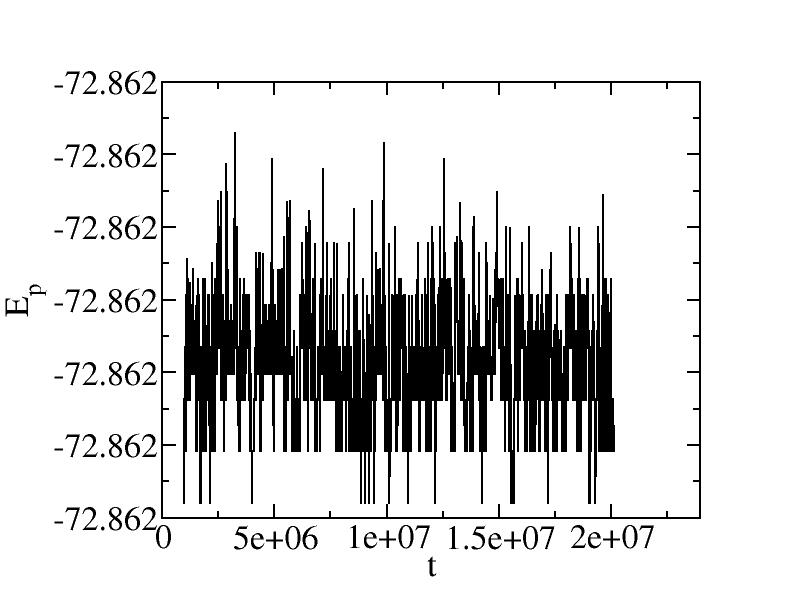

| 140 |
2000 |
783.989 |
 |
 |
 |
 |
| 160 |
1000 |
1022.28 |
 |
 |
 |
 |
