July 18 2004
DDMC for the dilute system T_56_56_64
The DDMC (driven diffusive Monte Carlo with the basic Metropolis algorithm)
has been applied to T_56_56_64 with different driving forces at T=0.005.
Each run has 10^5 passes (1 pass = Lx * Ly). The simulations start from
the ground state.
| Driving force E |
Structure function |
Intensity plot |

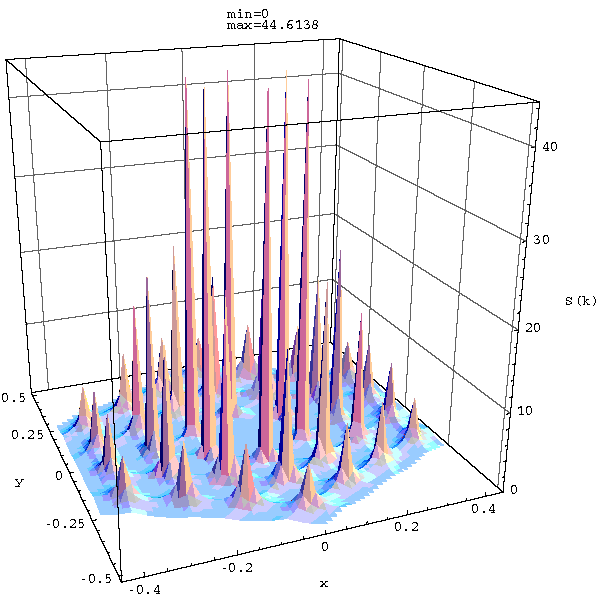

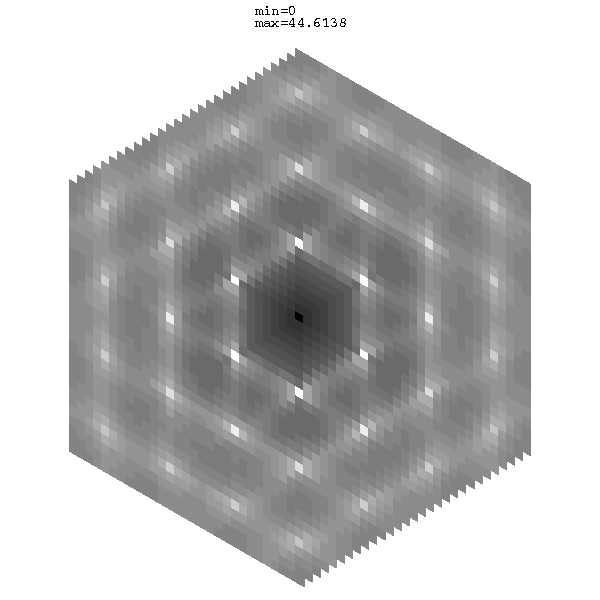

| 0.0 |
 |
 |

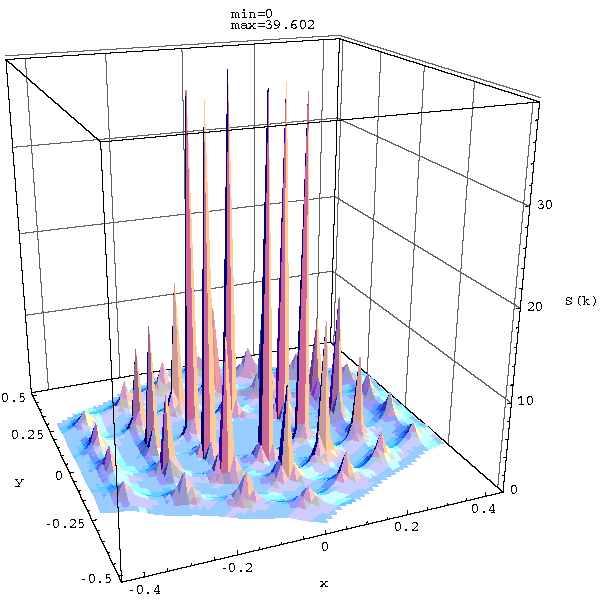

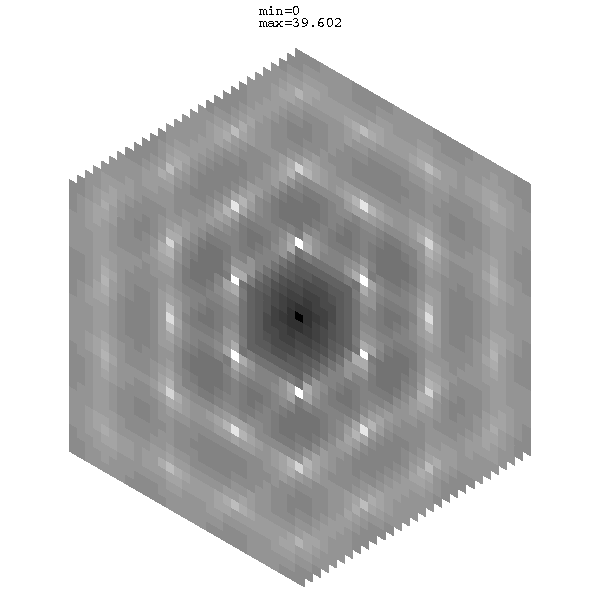

| 0.005 |
 |
 |

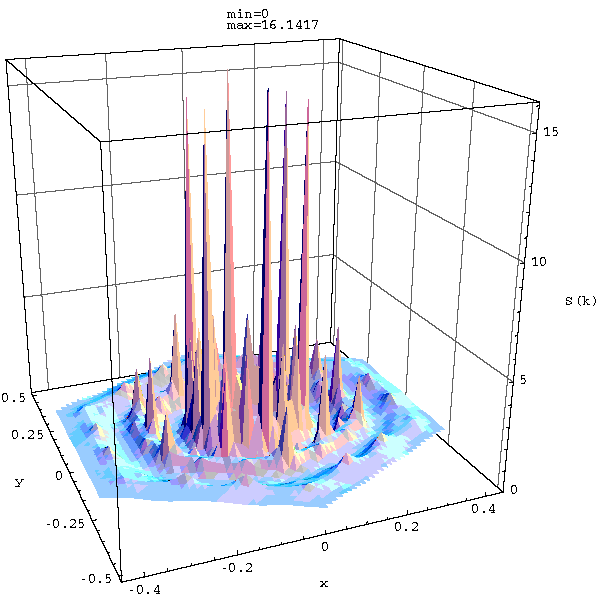

| 0.01 |
 |
 |

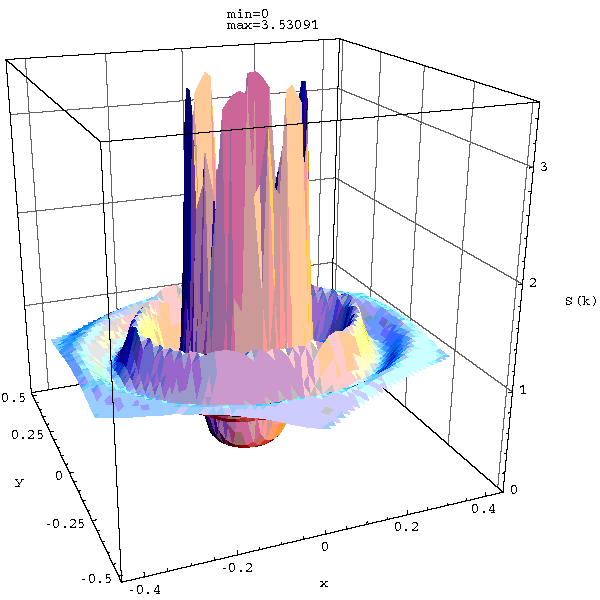

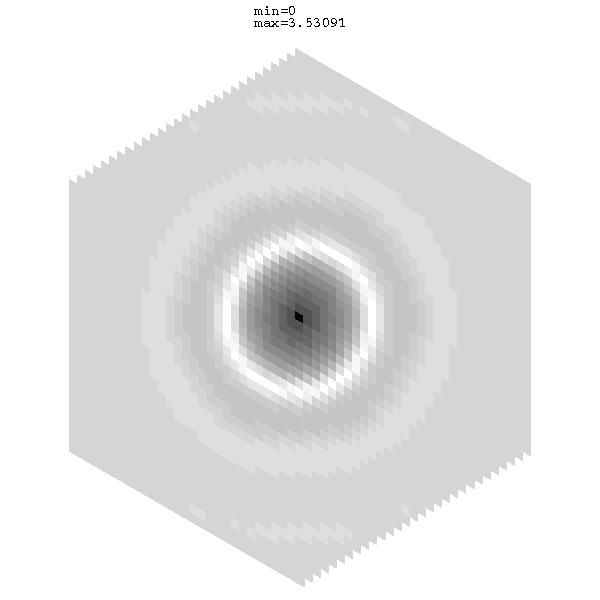

| 0.02 |
 |
 |

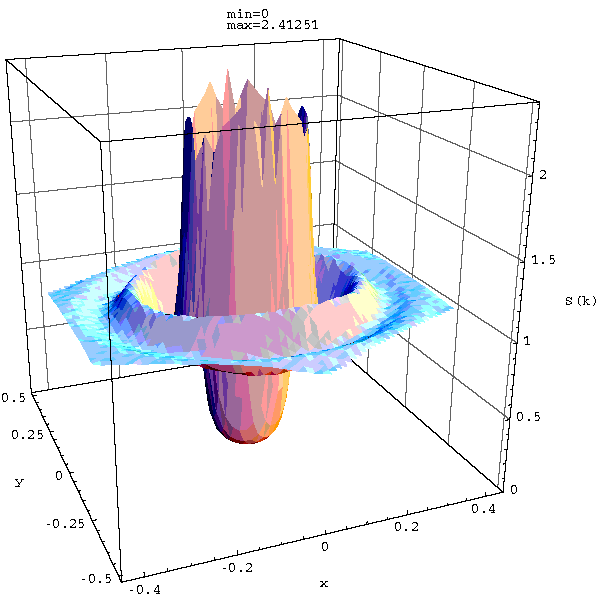

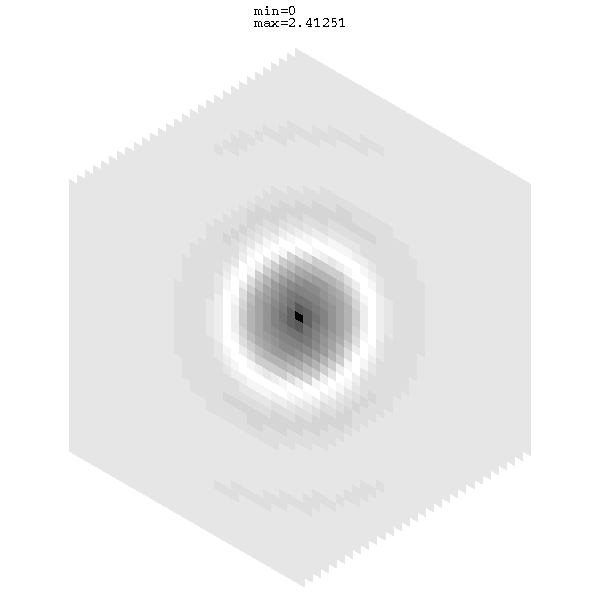

| 0.04 |
 |
 |

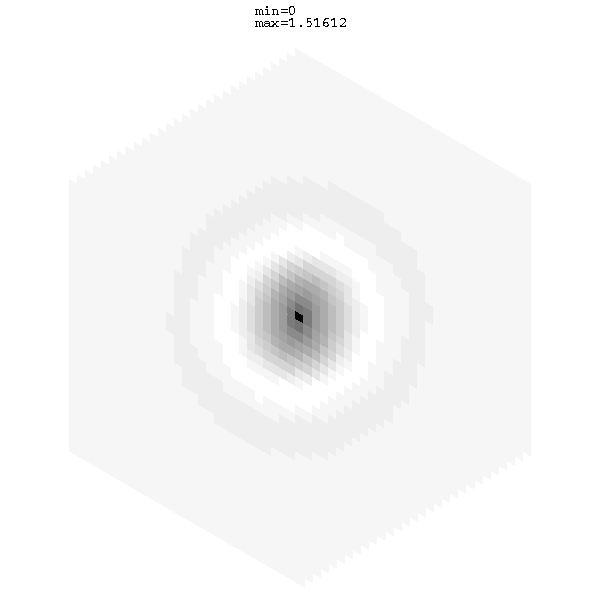

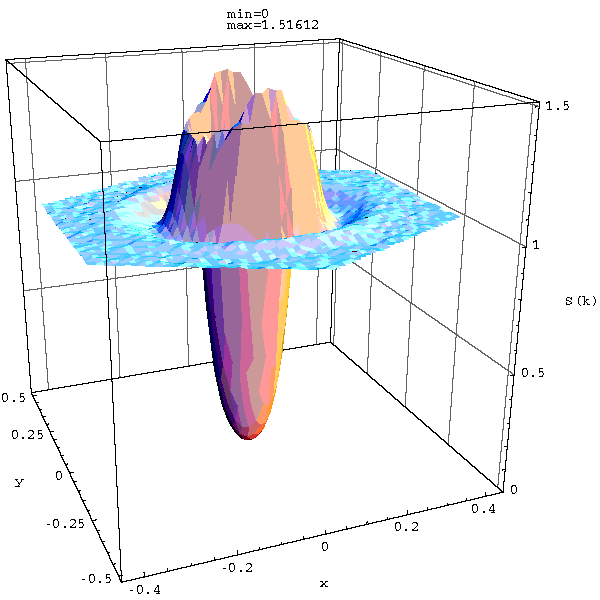

| 0.1 |
 |
 |

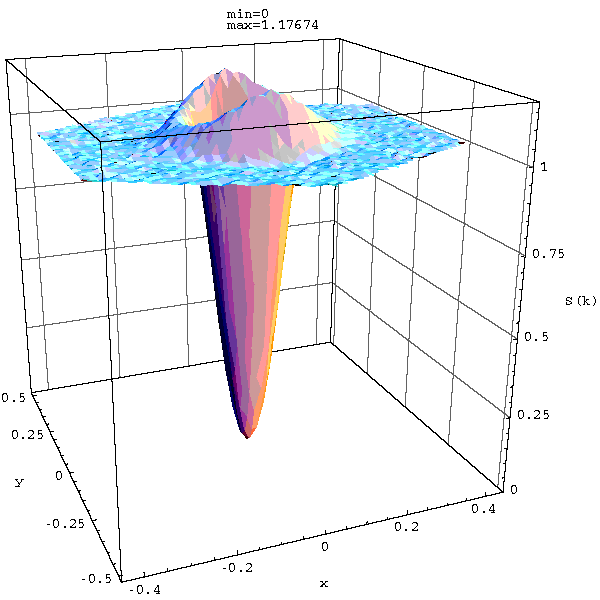

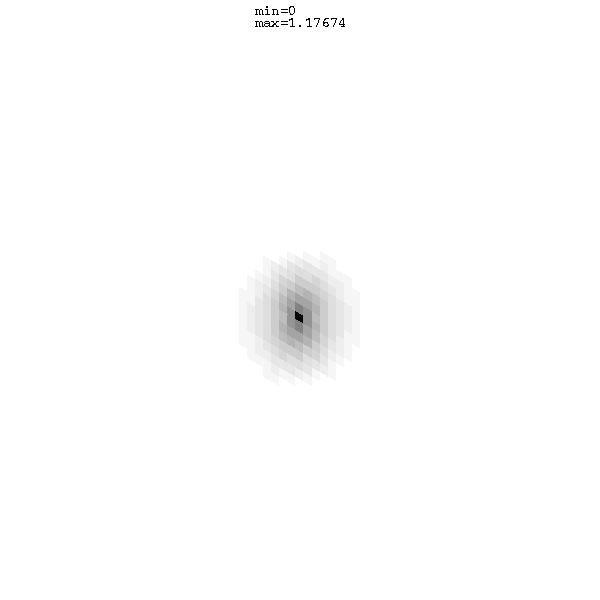

| 0.2 |
 |
 |

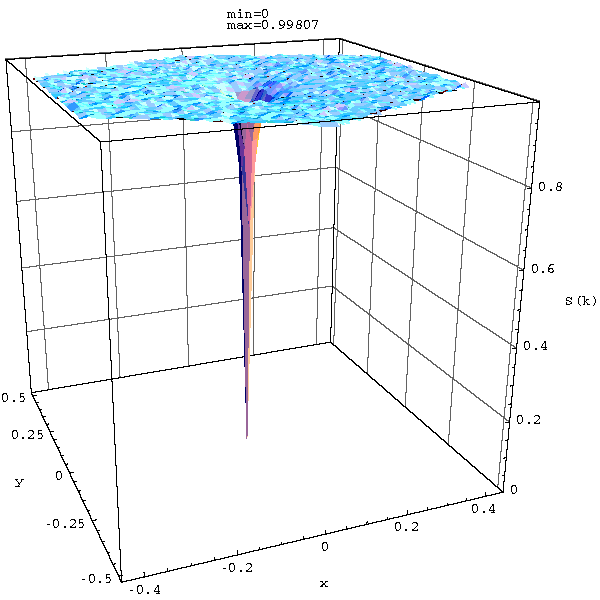

| 2.0 |
 |
 |

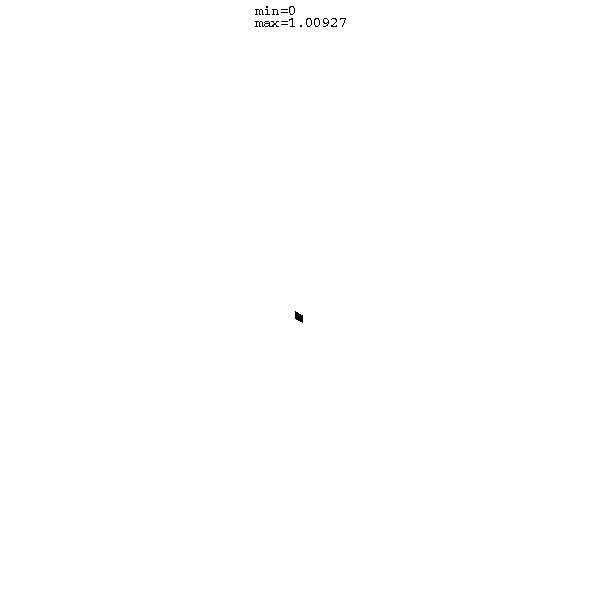

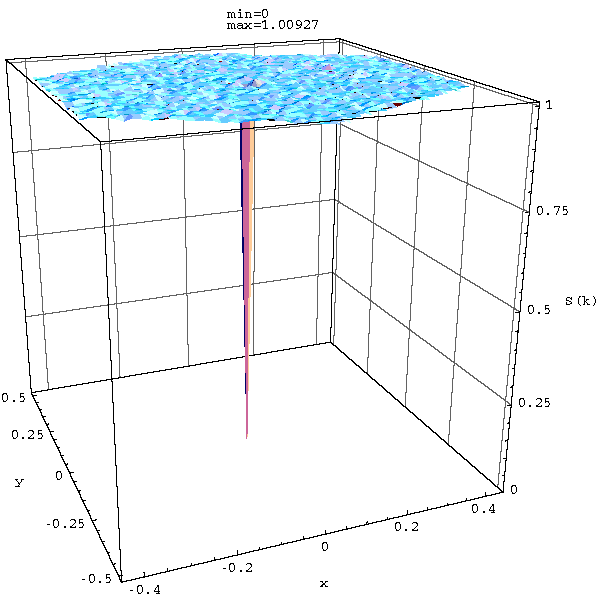

| 5.0 |
 |
 |
