November 04 2003
Test run for 50*50 square lattice with f=1/25
The program has been revised so that S(k) is got correctly.
A square lattice with size 50*50 and 100 particles have been cooled down
from T=0.0095 to T=0.0055 with the temperature step of 0.0001. At each
temperature level, the system went through 2*10^5 MC passes
( 1 pass = Lx*Ly steps ). The simulation time for each temperature ranges
from about 40 min to 90 min.

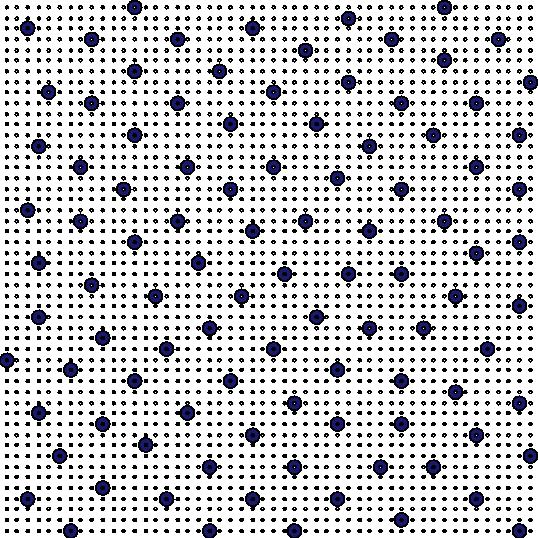

Last configuration at T=0.0094

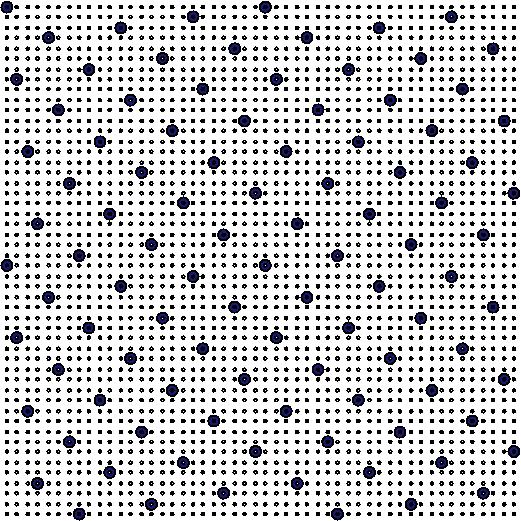

Last configuration at T=0.0055

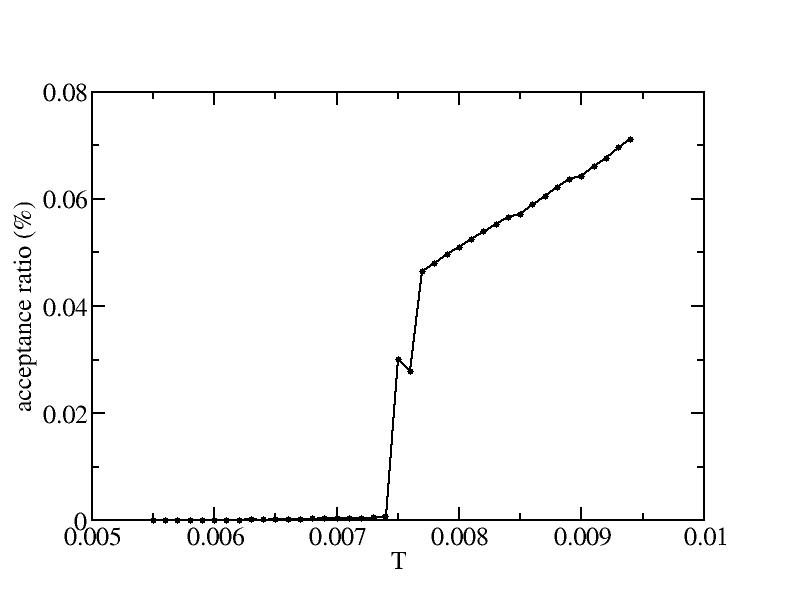

Average acceptance ratio

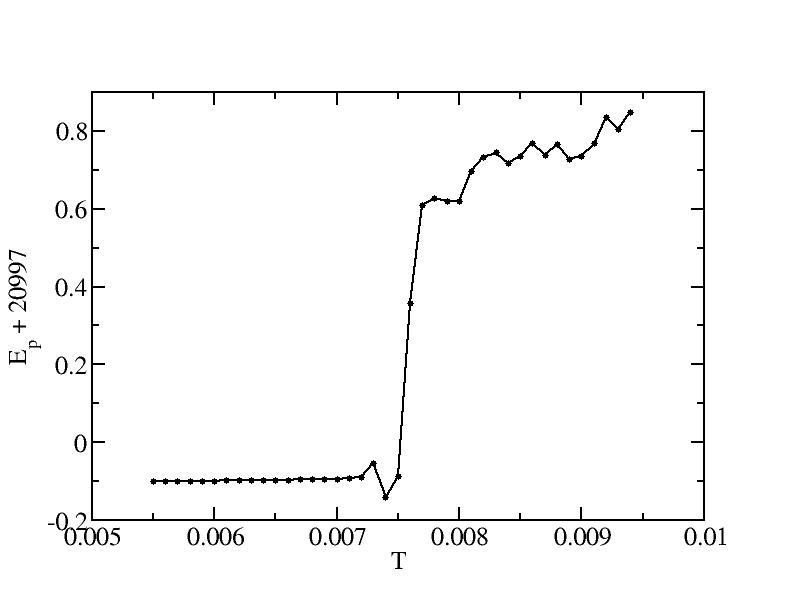

Avearge total potential energy
The potential energy was averaged from 1000 saved values.

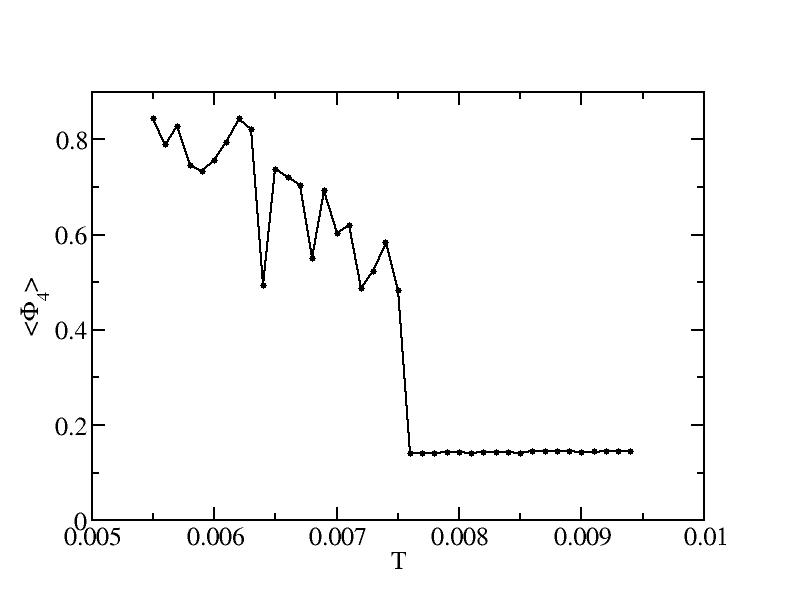

Order Parameter Phi4
Phi4 was averaged over 100 saved configurations.
Structure function
| T |

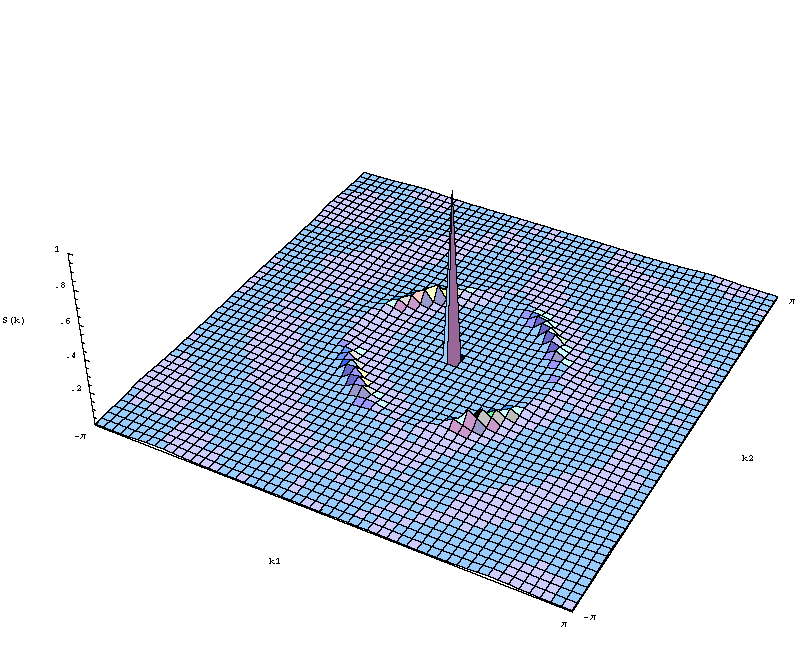

3D Plot |

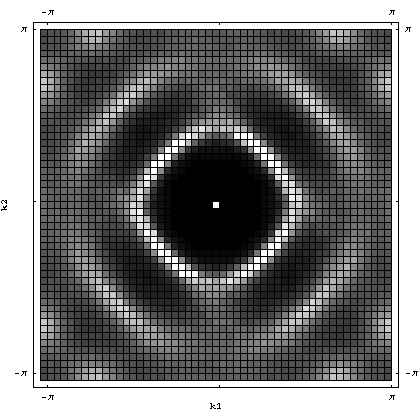

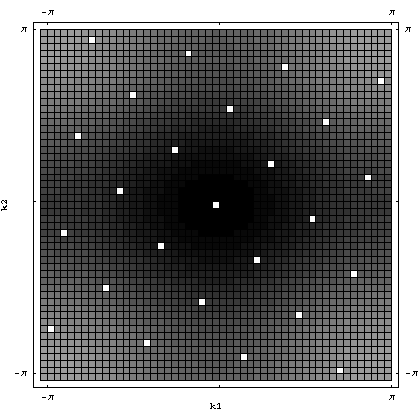

Intensity Plot |
| 0.0094 |
|
|
| 0.0055 |
|
|

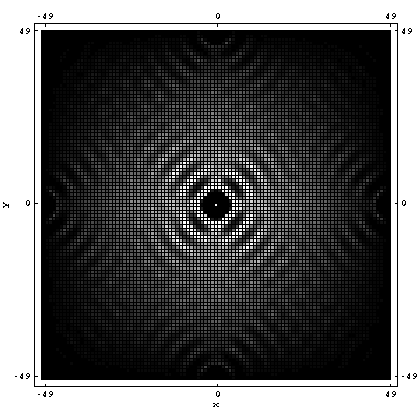

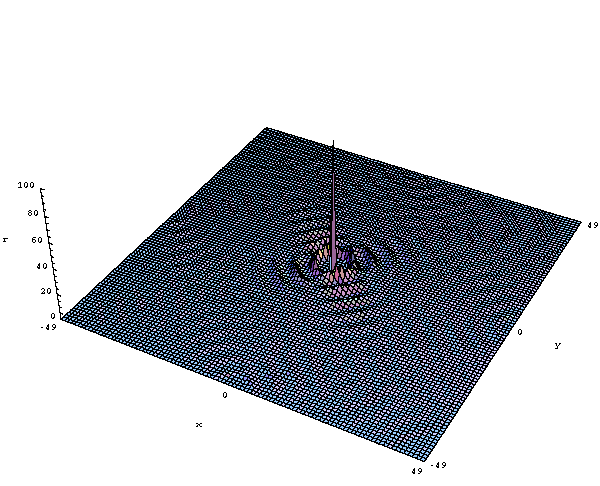

Pair correlation function in liquid (T=0.0095)
