November 17 2003
Test run for 50*50 square lattice with f=1/25 using
Albert's algorithm
A square lattice with size 50*50 and 100 particles have been cooled down
from T=0.0095 to T=0.0055 with the temperature step of 0.0001 by Albert's
algorithm. At each temperature level, the system went through 10^4 passes
( 1 pass = Lx*Ly steps ). The simulation time for each temperature is
about 90 min.

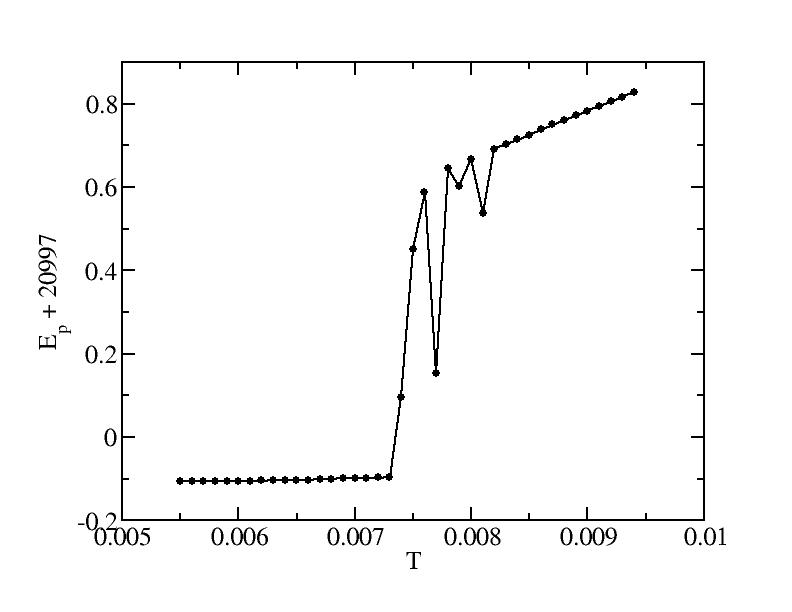

Avearge total potential energy
The potential energy accumulated at every steps.

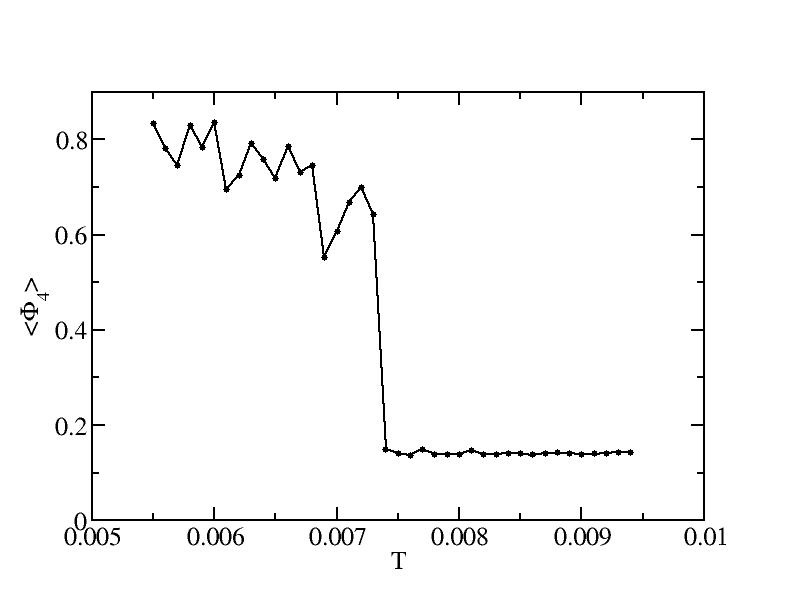

Order Parameter Phi4
Phi4 was averaged over 100 saved configurations.

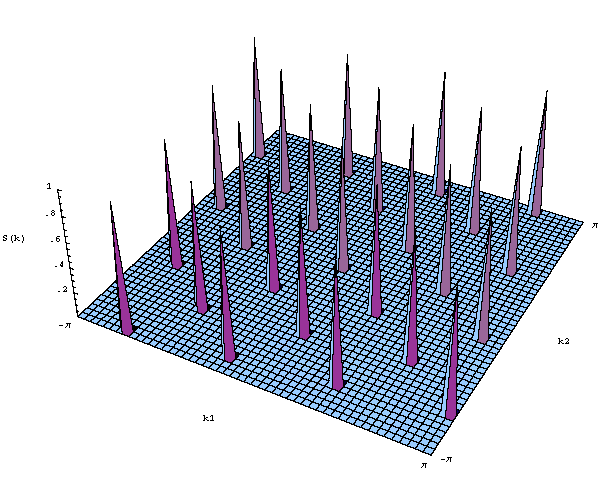

Structure function
| T |
3D Plot |
Intensity Plot |

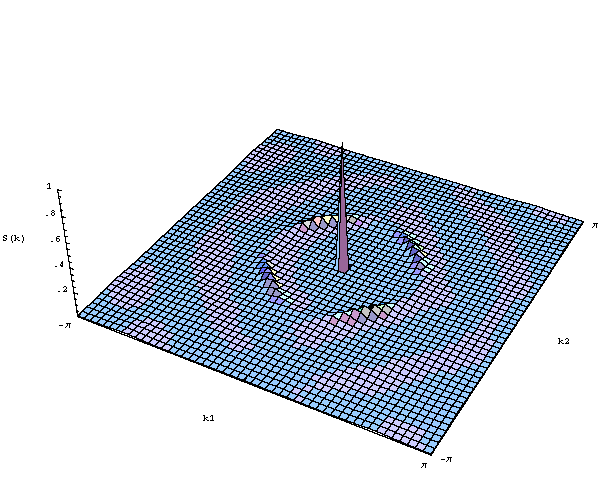

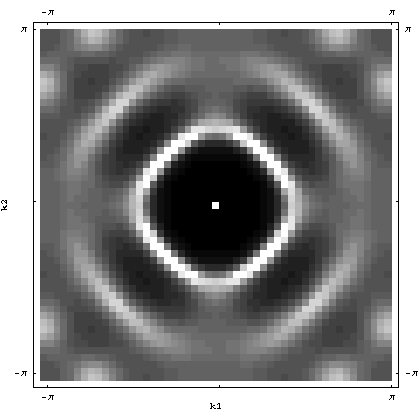

| 0.0094 |
|
|

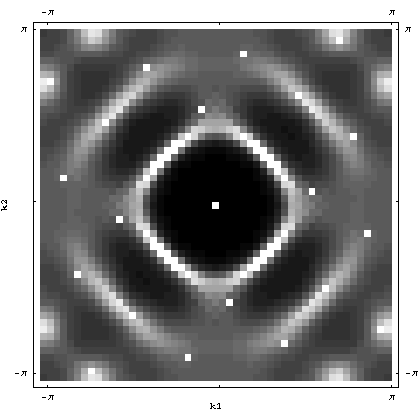

| 0.0081 |
|
|

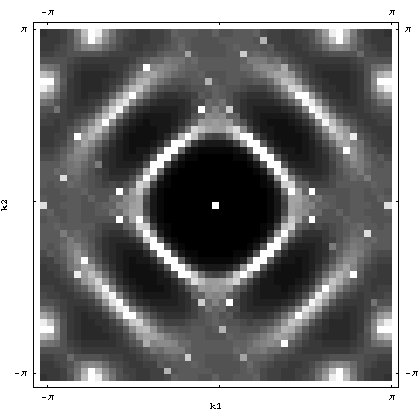

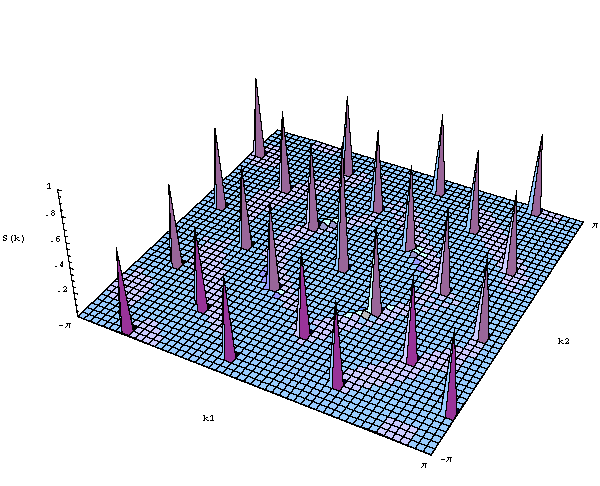

| 0.0077 |
|
|
| 0.0076 |
|
|

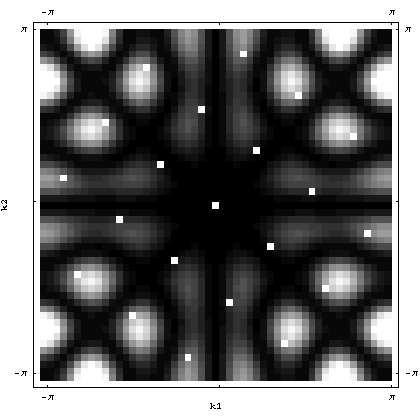

| 0.0055 |
|
|
