Novembe 28 2003

Line movement of 100*50 square lattice

The square lattices of 100*50 and 100*100 are both with the frustration of 1/25. They were equilibrated at T=0.04.

	100*50	100*100

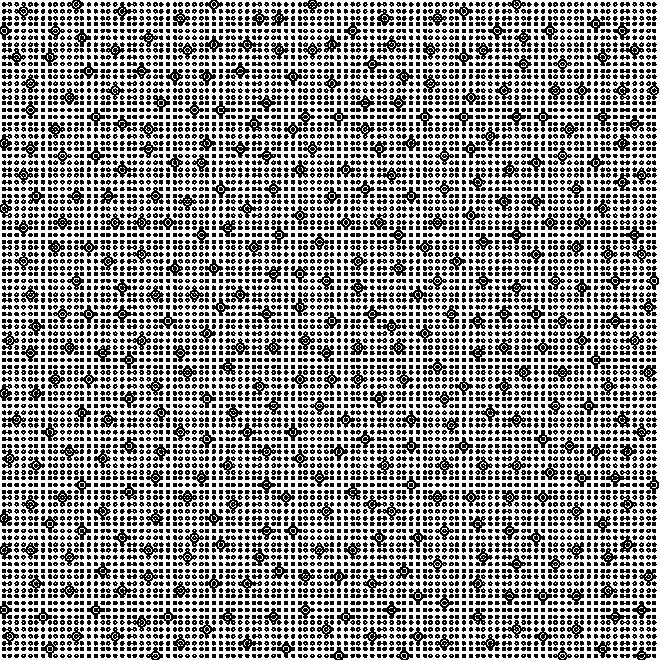

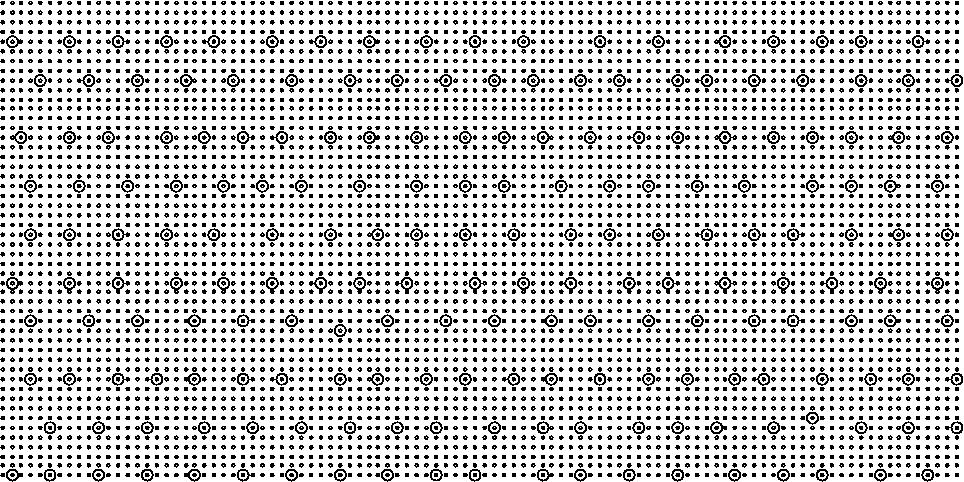

One configuration

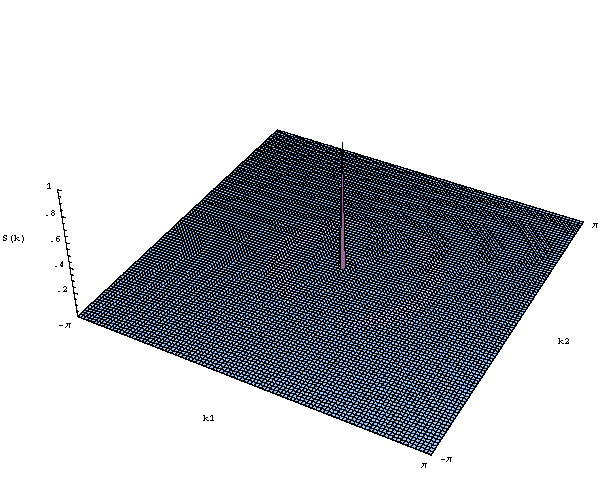

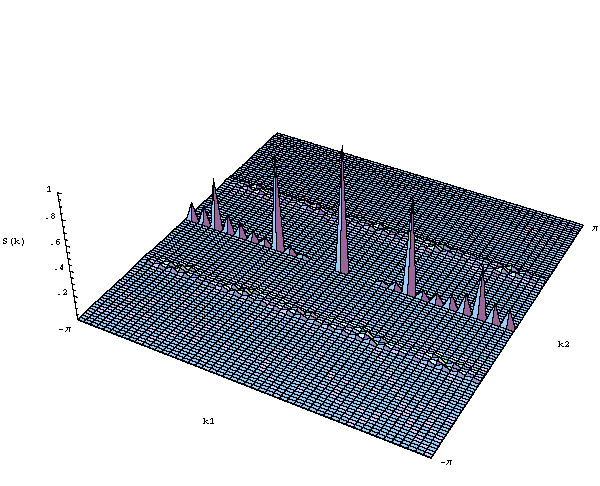

Structure function S(k)

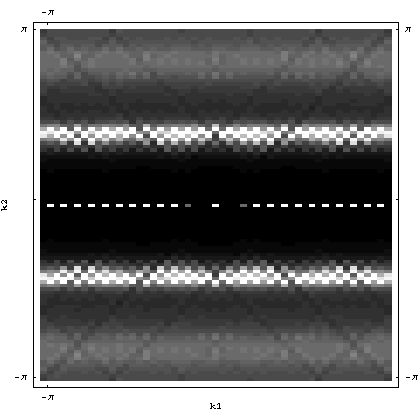

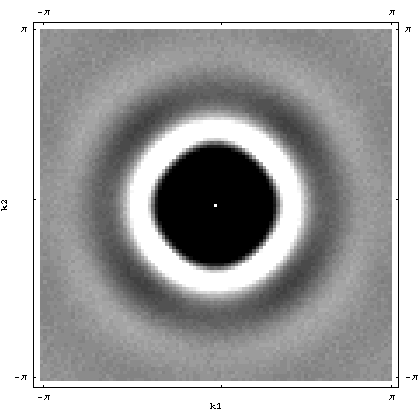

Density plot of S(k)

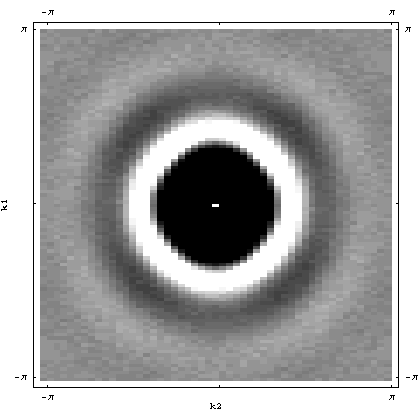

The codes creating the above results duplicate the green function values by the symmetry V(i,j) = V(j,i), which is not true when Lx is not equal to Ly. The following pictures are the structure function of 100*50 square lattice (f=1/25) from the same run (t=0.04) with the modified codes.
