December 03 2003

Square lattice with electric field

The ground state configuration of 50*50 square lattice with f=1/25 has gone through Albert's algorithm with external electric field turned on at T=0.0055. For each electric field, the system was equilibrated for 100 passes and data were collected in 1000 passes.

Electric field 3D plot of structure function Intensity plot of structure function

Ex=1.0, Ey=0.0

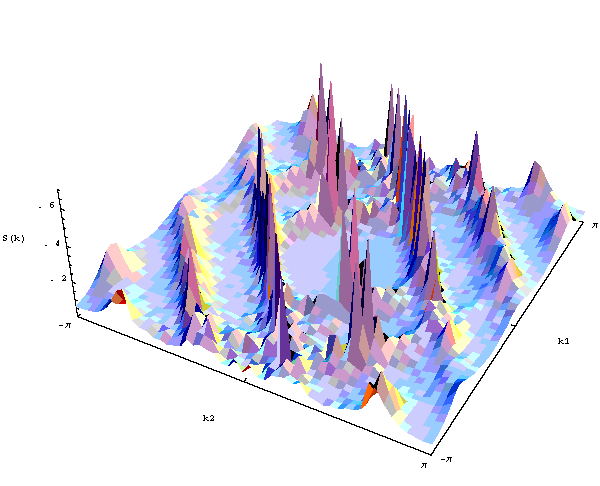

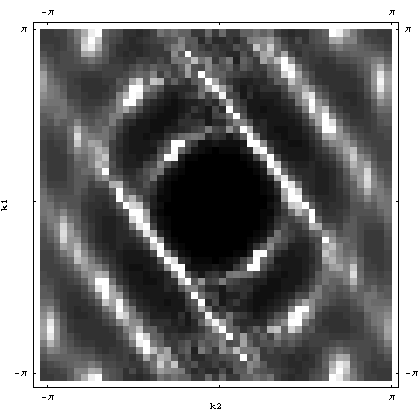

Ex=0.0, Ey=1.0

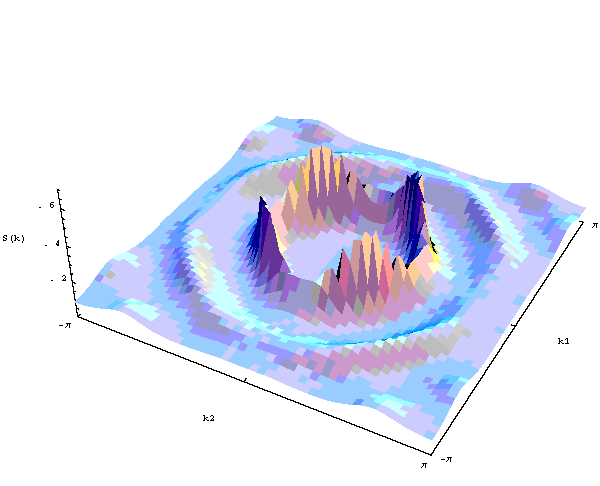

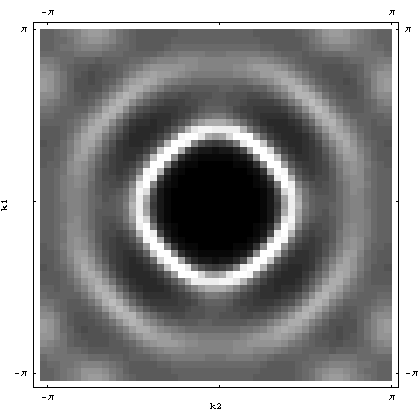

Ex=1.0, Ey=1.0

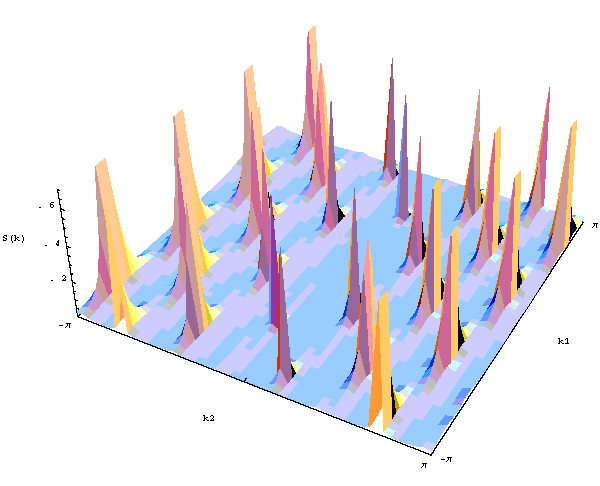

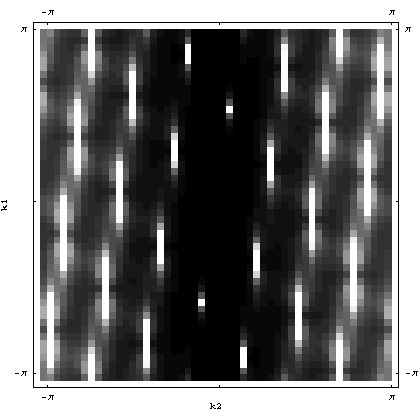

Ex=2.0, Ey=1.0

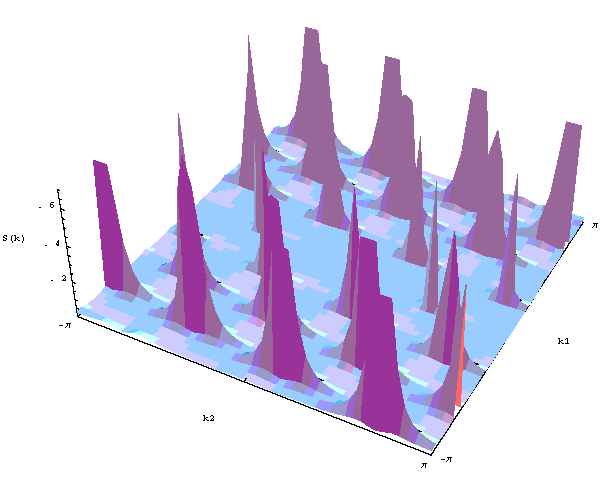

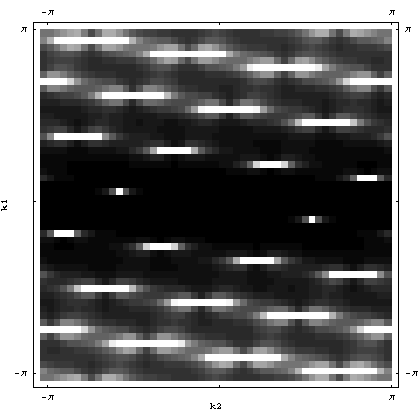

Ex=1.0, Ey=2.0

Electric field	3D plot of structure function	Intensity plot of structure function
Ex=1.0, Ey=0.0
Ex=0.0, Ey=1.0
Ex=1.0, Ey=1.0
Ex=2.0, Ey=1.0
Ex=1.0, Ey=2.0
