April 05 2003
Local bond order parameters of 2624 atoms at 5K (quenched)
The configuration is 2624 atoms at 5K minimized by conjugate gradient
method. The criterion of coloring atoms according to local bond order
parameters is (sequentially):
structure |
rule |
color |
symbol |
icosahedral |
Q6>0.3 && W6<-0.12 |
Dark Red |
Cu |
fcc |
Q4>0.16 && W4<-0.13 |
Golden |
Au |
hcp |
Q4<0.12 && W4>0.10 |
Green |
Cd |
other |
else |
Gray |
Ag |
Interestingly, there have no atoms with icosahedral local structure (except
several trivial surface atoms).
In order to see internal structures clearly, up to 3 surface layers have
been cut off.
Download configurations

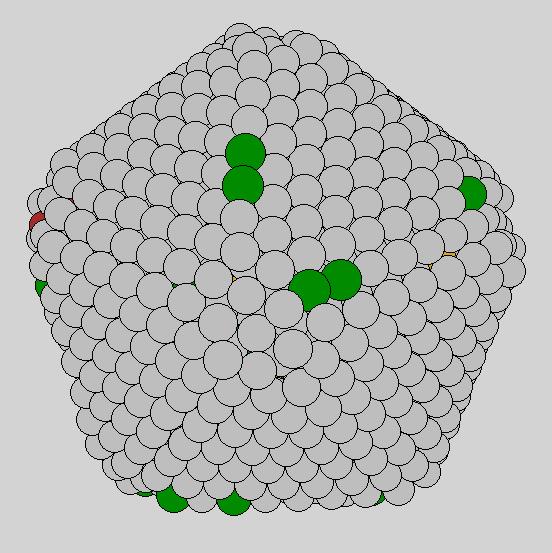

With all atoms

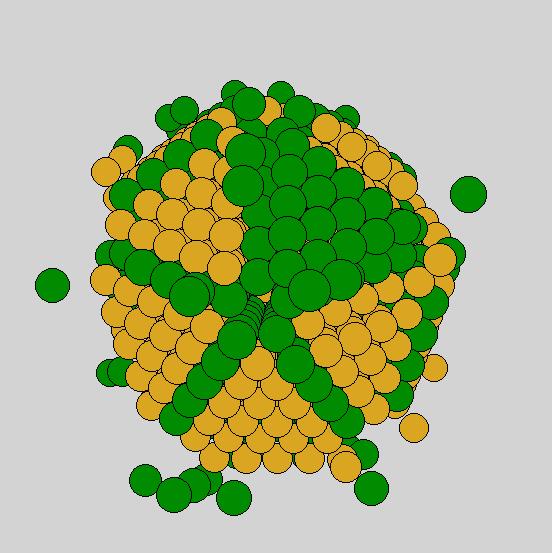

With fcc and hcp atoms
With fcc atoms only

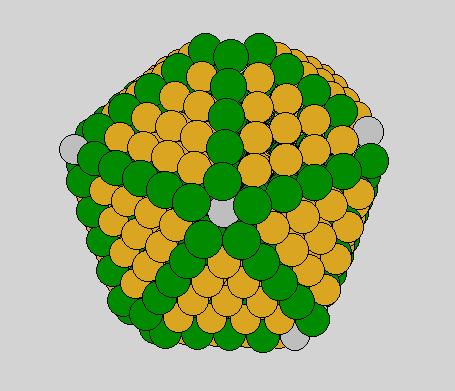

With 3 surface layers cut off -- all atoms

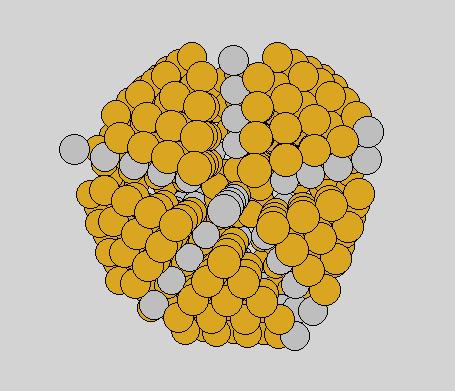

With 3 surface layers cut off -- fcc and other atoms

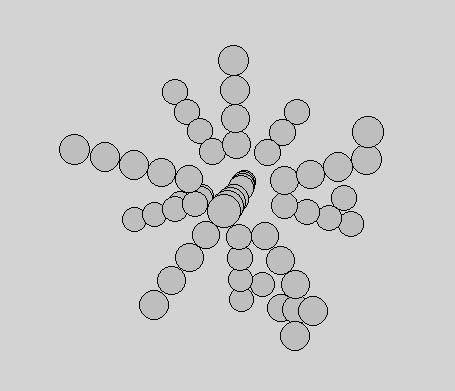

With 3 surface layers cut off -- other atoms only
