Making a Level3 Trigger

These instructions assume that you have a basic understanding of what a Level3 Trigger consists of. If you don't, please carefully read the introduction page. Here are the series of steps you must go through when making a new Level3 Trigger:

WARNING!!! If you are working and make a mistake and have to press "QUIT", make sure you exit ALL OF THE WAY OUT OF THE GUI, or the next time you happen to hit commit (maybe hours down the road) your initial attempt may be stored and you may wreak havoc in the database. So, if you Quit, be sure to quit all of the way, every time. If things seem to behave strangely in the Gui in general and it's been a while since you restarted the Gui, this is always the first thing to try since this will clear all of the fields for you. Good luck!

1. Begin with a list of which Modules your trigger requires (in the correct order!) and what the talk-tos are that you need set for each Module.



If you don't have this information, you won't even know how to begin. Please stay away from doing this all in your head as you go - it's very easy for mistakes to creep in!

2. For each Module that you will include in your trigger, look at the talk-tos that are required and make sure that you have a version of the class that includes all of the talk-tos that you need to set.

This step must be repeated for every instance that will be part of your trigger. If the Module Class doesn't have the talk-tos that your trigger requires then you will need to make a new version of the Class that includes your new talk-tos. If all of your talk- tos are in the database, skip to step 5. If you are entering a class for a module for the first time (version 1 of a class!) then go to step 3 where you'll learn how to enter a new class. If a version of your class already exists and you simply need to make a few talk-to changes, go to step 4 where you will learn to edit a class.

3. Making a new Class:

Follow step 4 'til you get to the "L3 Option Classes" page. At this point you'll click on "New" instead of "Edit". The "L3 Options Classes Editor Page" will pop up and allow you to enter a new class:



Let's look at an imaginary example of a class to enter, called L3ExampleFilterModule. The header, we'll pretend, is "Level3Filters/Level3Filters/L3ExampleFilterModule.hh". We'll pretend that it has one talk-to, called "PTCut" in a menu called the "Pt" menu, with a default value of "0.0", meaning the default behavior is no cut. Here is our list of everything we need to know before we begin:

header location:"Level3Filters/L3ExampleFilterModule.hh"
description: an imaginary example filter module
filter module (true/false): true
talkto / menu / defaultvalue: PTCut / Pt / 0.0

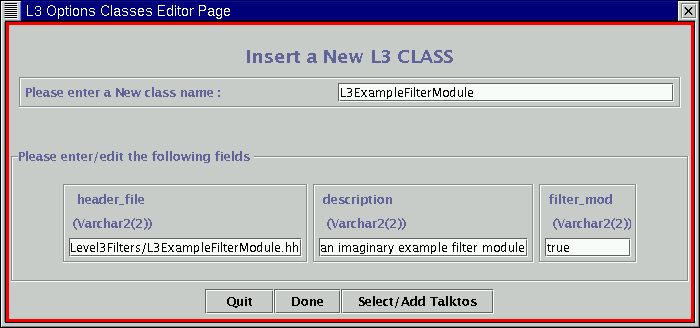

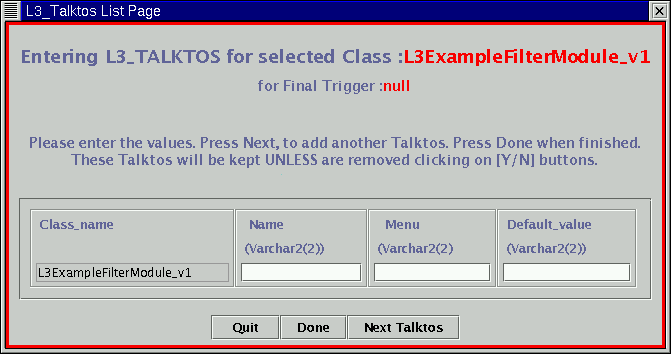

So, here is what our Inserting page would look like filled out correctly:



If we've changed our minds about creating this new class we can click on "Quit" right now. If there are no talk-tos in this class, we can click on "Done" and skip to the committing step. Since we have a talk-to to enter, however, we need to click on "Select/Add Talktos", which brings us to the "L3_Talktos List Page":



Note that the Module name has been assigned a version number, and is filled in in the left column. Here's what the page looks like after it is filled out correctly with our talk-to:



Note that there is a slash ("/") before the menu name. If the talk-to doesn't belong to a menu, you should still put the slash in that field, with no menu name following it. Since this is the only talk-to that is associated with our imaginary class we can click on Done - if we had more talk-tos to enter, we'd click on "Next Talktos". For the committing procedure, follow step 4 from this point on. The class won't be entered into the database until you commit it.

4. Editing a Class:

I'll begin with a real example. I need to add two new talk-tos to the CT_TrackingModule Class. From the original TriggerGui page I click first on the "Create/Edit L3 Triggers" which will pop up the Insert/Edit page:



Since I'm working on a class and not a full trigger right now, I click on "Proceed", which brings me to the "L3 Page", which should only have two options, the class option and the instance option:

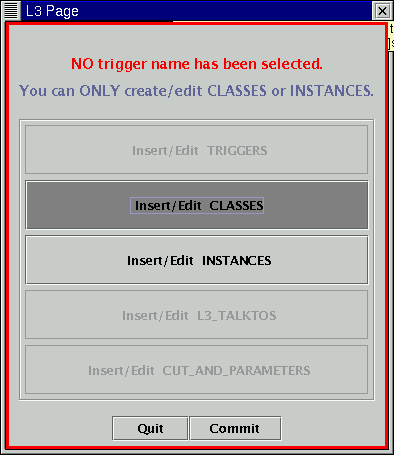

I'm working with a class, so I click on "CLASSES", which pops up the "L3 Option Classes page" where I could enter a brand new class or edit an existing class. I want to edit an existing Class, so I find the most recent version or CT_TrackingModule, which happens to be version 4, and I highlight it (by clicking on it) and click on the "Edit" button:

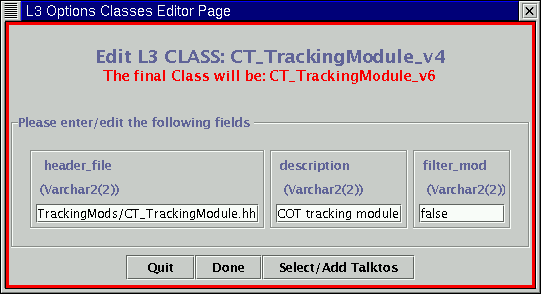

Now the "L3 Options Classes Editor Page" should pop up. This page allows me to change the header file location, change the description of a Module, change the type of the Module (filter or not a filter - note that since this is a reconstruction Module and not a filter Module, the value of "filter_mod" is false) or edit the talk-tos ("Select/Add Talktos") (NOTE THAT THE VERSION SHOWN HERE IS _v4 -> _v6 - PRETEND THAT THE _v6 is a _v5! I FORGOT TO TAKE A SNAPSHOT OF THIS STEP AT THE TIME!!!):



If I've made a mistake and chosen the wrong class version, or if I've changed my mind and decided not to edit the class I can escape now without doing any damage by clicking on "Quit". But let's continue and edit the talkto's, so I'll click on "Select/Add Talktos".

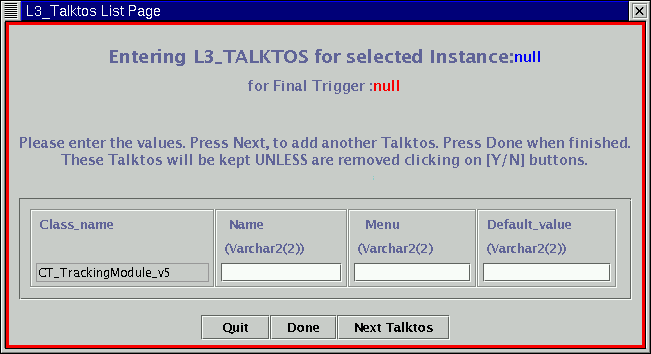

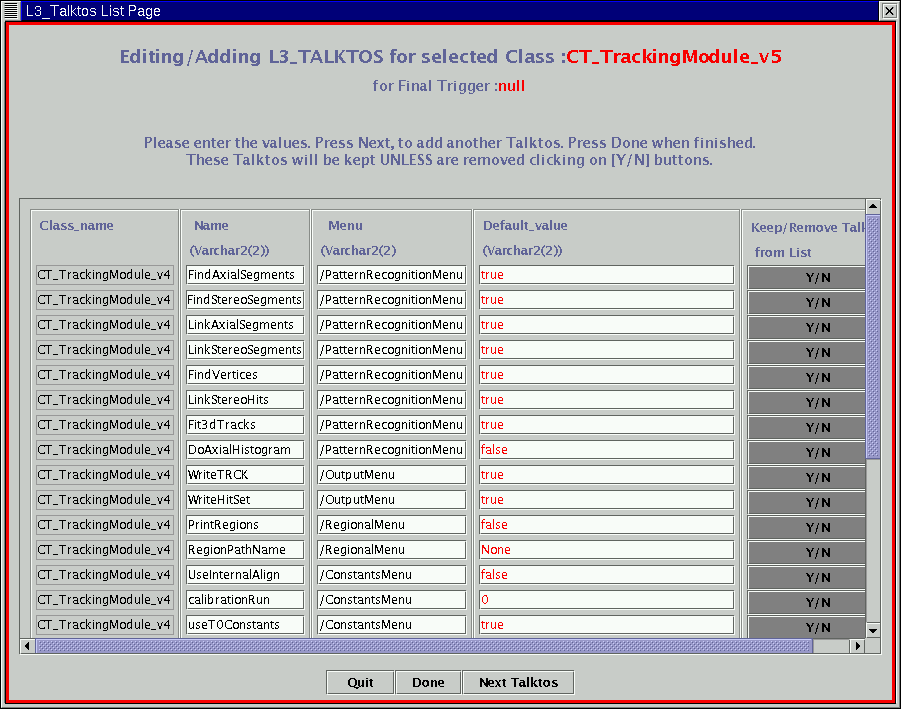

I now have the "L3 Talktos List Page". I could delete a talk-to by finding the talk-to in the list and clicking on the corresponding "Y/N" button in the Keep/Remove Talktos column. If you click once on that button, it will un- highlight and will be removed from the list of available talktos for the class when you commit your change. Right now I need to ADD talktos, not delete them, so we click on "Next Talktos" at the bottom of the window. Here is what we have to work with:



Now is the most important (and dangerous ;) ) step. If we introduce a typo here and we later use this class to make an instance that goes into a trigger we will crash the Level3 executable. Extreme caution is needed, or you're going to create lots of extra work for a lot of people. You need to know a few things about the talk-tos - first, what menu does it belong to, and second, what should its default value be. The second question, the default value, is less important than the first - the defaults aren't automatically included in any tcl files, so when you make a trigger you'll always have the chance to change the value that you assign to the talk-to. Here's the list that I'm going to enter right now:

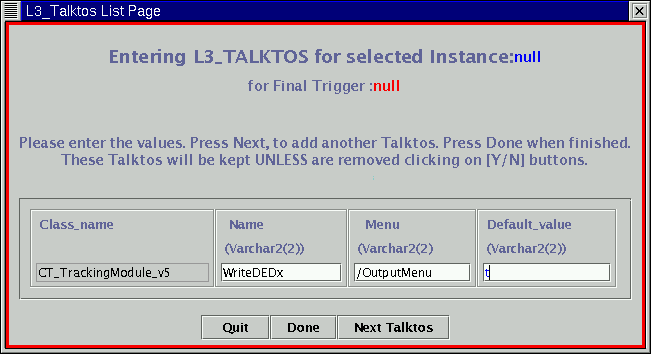

WriteDEDx - in the OutputMenu menu, with a default value of t (for true)
CleanTracks - in the PatternRecognitionMenu menu, with a default value of 1

Note the syntax - a "/" goes before the menu name. If the talk-to doesn't belong in a menu, the menu field should have a "/" entered into it. Here's what the page looks like after the first talk-to has been entered in correctly:



If this was the only talk-to I needed to change, I would click on "Done". If I change my mind about editing this class, I have another chance to back-out, by clicking on "Quit". Since I'm making another change, I click on "Next Talktos". After making my next change, I do click on "Done", and I am brought back to the "L3 Option Classes Page", but this time I can see my CT_TrackingModule_v5 (note that the Gui has incremented the version number for me) in the box on the left:



If I'm happy with my changes, I can click on "Done", if not, I click on "Quit". After clicking on "Done", I am brought back to the L3 Page where the button "Classes" should be highlighted, signifying that I have made an uncommitted change. If it isn't highlighted, don't be alarmed. Sometimes the Gui is slow for this step:



In order for my changes to make it into the database, I now need to click on "Commit". The "ORACLE Message Window" will now pop up. After each line you should see an ***Oracle Commit SUCCEEDED***:



Click on "Close". Trouble shooting for mistakes is beyond the scope of this web page - there are too many potential problems that could have popped up... A database expert could help you interpret the error messages.

5. Check - Do any of the instances you need already exist?



If all of the instances you need already exist, you are very lucky! You're ready to move on to step 8. If you need to make a slight change to an existing instance THAT IS BASED ON THE SAME CLASS VERSION YOU NEED then you only need to edit an instance and you can skip to step 7. If you need to create a new instance (if your talk-tos are very different from the older instances, or if you're basing your instance on a new class) then go to step 6.

6. Making a new instance:

Be aware, as you make instances, that many instances in the current trigger tables are used in more than one trigger!!! The many inter-dependencies make life difficult and mean that you have to be extremely careful. From the original TriggerGui page click on the "Create/Edit L3 Triggers" which will pop up the Insert/Edit page:

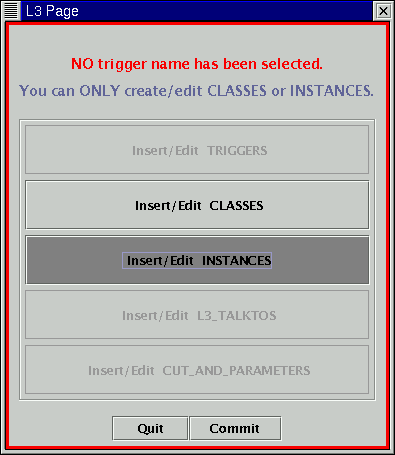

Since this is for an instance and not a full trigger right now, click on "Proceed", which brings you to the "L3 Page", which should only have two options available, the class option and the instance option:

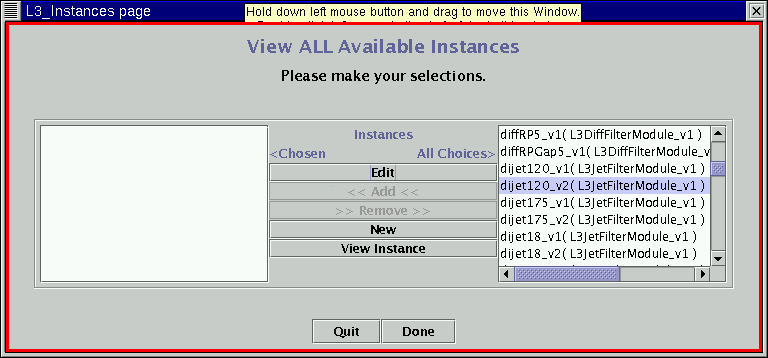

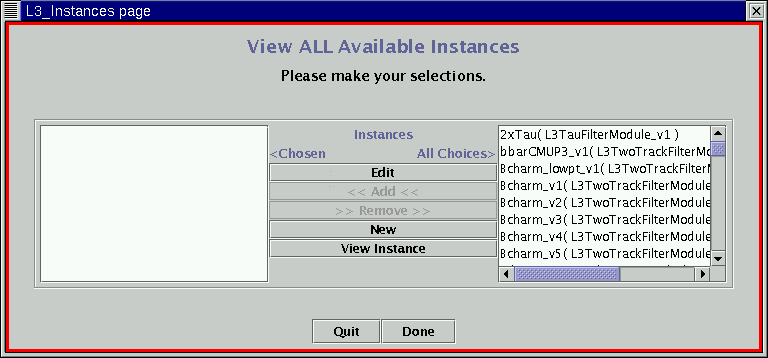

Since we want to make a new instance, we click on the "Insert/Edit INSTANCES" button, and the "L3_Instances page" pops up.

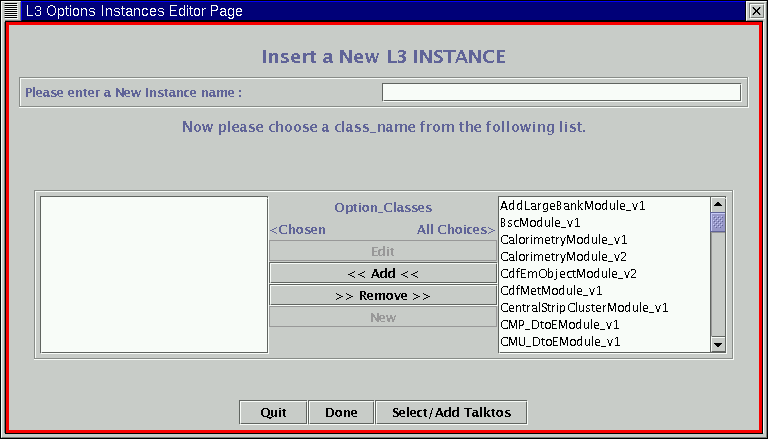

We're going to make a new instance, so we click on "NEW", and the "L3 Options Instances Editor Page" pops up:

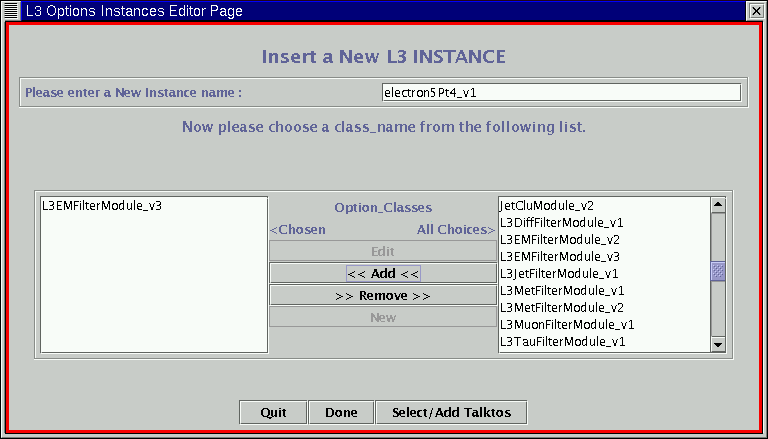

We need to know two things in order to proceed - first, what name we'd like to use for the instance and second, what class (and VERSION of the class) the instances is going to be built from. Let's make a simple electron filter. Here are the answers to the above questions:

instance name:electron5Pt4_v1
class name (including version): L3EMFilterModule_v3

Note that instances are different from classes - when we name the instance we write in the _v# - there isn't a separate field for this in the database. So if we're editing an instance, we would rename it the same thing, but type in the next number up for the version. This is an important point. In order to select the Class (and correct version of the class) you click on it in the right window and then click on "Add" and it should appear in the left window. Here's what the "L3Options Instances Editor Page" will look like after everything has been entered correctly:



I'm assuming that you KNOW the talk-tos associated with the instance you're creating. If you don't, we're all in big trouble. Of course, the instance wouldn't be going into the database unless it was for a well tested (and therefore well defined) trigger. You get the point. :) So, here is our well defined tcl fragment that is associated with our instance:

commonMenu
nEmObj set 1
CalorRegion set 0
exit
centralMenu
cenEt set 5.0
cenTrackPt set 4.0
exit

If we didn't have any talktos associated with the instance (which would be the case if we're simply running with all of the defaults in the code) then we can click on "Done". As always, if we've made a mistake we have the option of clicking on "Quit". Since we have talk-tos, we need to click on "Select/Add Talktos". This will pop up the "L3_Talktos List Page", which displays all of the talktos (and their defaults) that are associated with the class we have chosen:

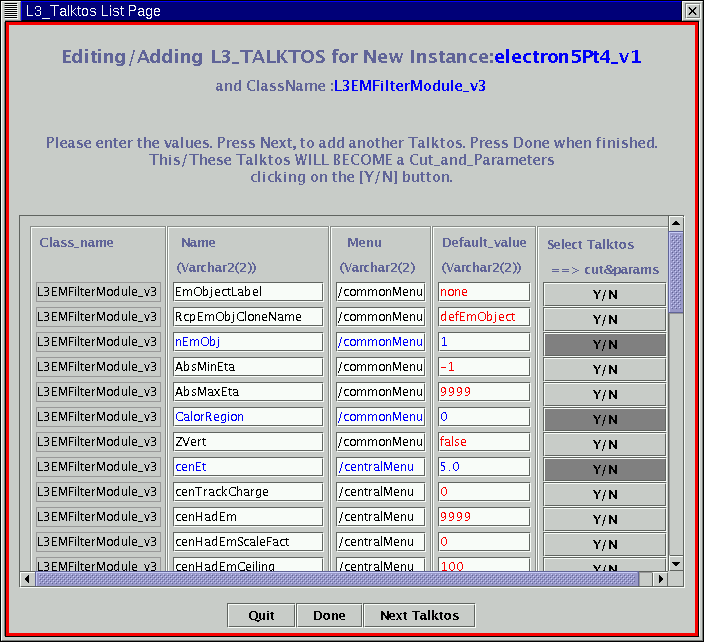

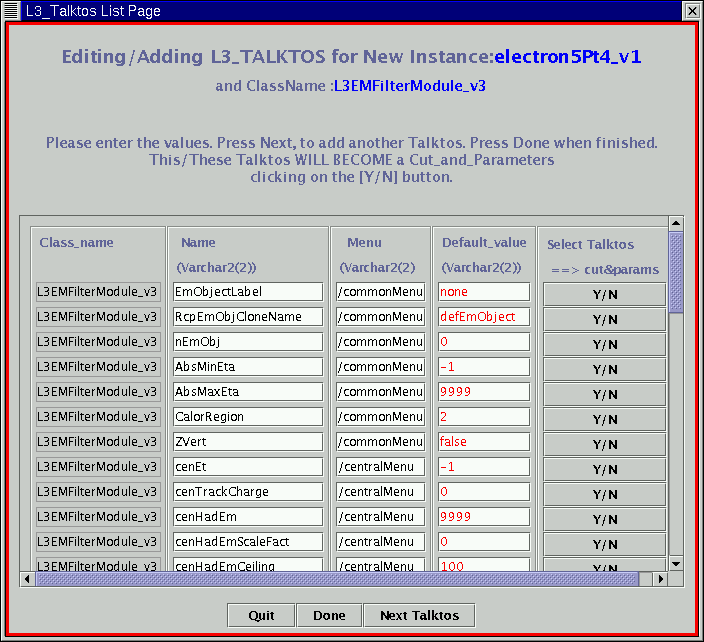

You have two things to do for each talkto that you want to include. First you need to edit the value in "Default_value" column. Second, you need to click ONCE on the far right column associated with each talkto, so that the button is highlighted. In order for the talkto to be included the button must be highlighted. There is NEVER a reason (or never a reasonable reason) to edit the "Name" or "Menu" columns. If there is a typo there, the base class needs to be fixed - you can't fix it at this stage. (This option should be removed from the Gui...) You can't see all of the talk-tos in this screen shot without making things very large, but here is what the talktos you can see will look like after they are entered correctly:



after double checking that everything has been entered correctly, since we have done all of the talktos we click on "Done". If we need to start over, we can click on "Quit". There would NEVER be a reason to click on "Next Talktos" at this point. We can't add talktos to the base class at this stage of the game. Again, this should be a change made to the Gui, to forbid this option... After clicking on "Done" the "L3_cut_and_parameters List Page" will pop up. This is the Gui at its most forgiving. If you've introduced a typo you have the chance to fix it here. This is what our instance looks like at this point:



If we've forgotten a talkto we need to hit "Quit" and start over. Once again, the only column we should edit here is the "value" column. Since everything is correct, we now can hit "Done", and that page will disappear and we can go back to the "L3_Instances Page" where we should see our instance in the box on the left. Once again, if your instance name isn't written there, don't be alarmed. The gui is slow on this step, and there's no need to wait for it to catch up before continuing on and clicking on "Done". You now go back to the "L3 Page", where the "Insert/Edit INSTANCES" should be highlighted. If you want to commit your changes (inserting them into the database) you click on "Commit" in the lower right. If not, this is your last chance to hit "Quit".



After clicking on Commit, you should see the "ORACLE Message Window". After each line you should see an ***Oracle Commit SUCCEEDED***. I don't want to commit this example, but you can see what this looks like if you look at the Making a New Class example above.

7. Editing an instance:

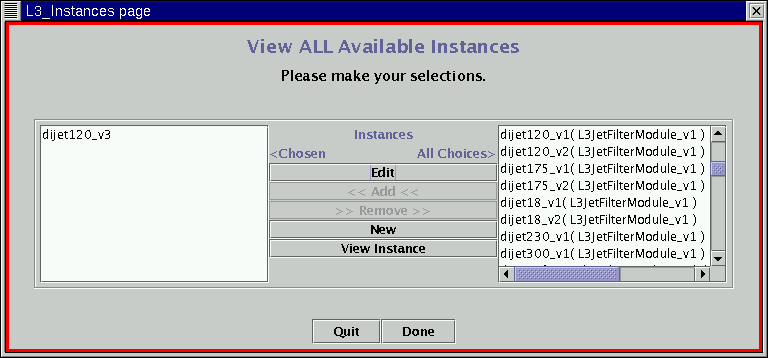

Editing an instance is similar to making a new one. Follow the Steps from #6 'til you are at the "L3_Instances Page" - at this point you are going to be editing as opposed to creating a new instance. You need to find the instance you're going to edit, and highlight it in the box on the right. We'll edit the dijet120_v2 instance for our example, changing the dijetMassEta cut from 2.2 to 2.0, so we scroll down to it and highlight it. The dijet120_v2 instance is based on the class L3JetFilterModule_v1. Note that the class the instance is based on follows the instance name in parenthesis:

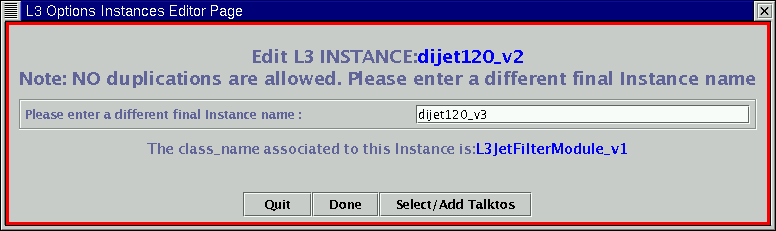

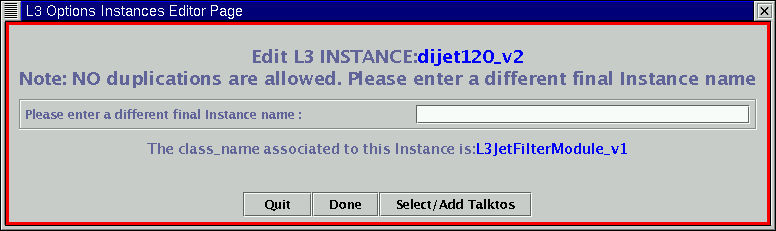

We now click on "Edit" and the "L3 Options Instances Editor Page" will pop up:



Note that we cannot edit an instance of one class version to make an instance of a new class version. This means that if the underlying class version has changed, you need to make a NEW instance, and not edit an old one. But we're happy keeping the same version of the class, so we simple increase the version number by one (unlike with classes, the database and gui don't keep track of instances of versions for us since there isn't a separate field, so if we want the convenience of version numbers, which have proven to be very helpful, we need to type them in ourselves.) so our new name is dijet120_v3 and this is what it looks like typed in:

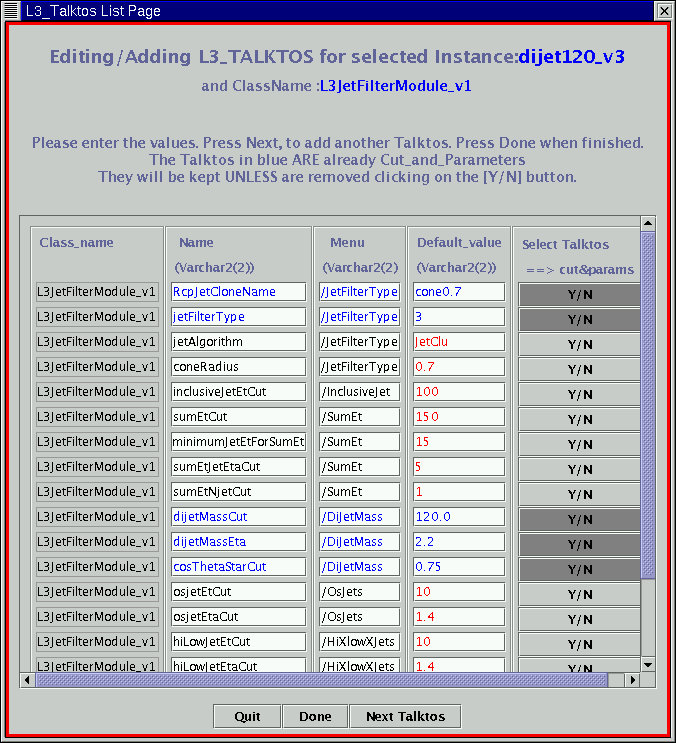

Since we need to change one of the talktos, we'll click on "Select/Add Talktos", and the "L3_Talktos List Page" will pop up, with the old instance talktos and values in blue and highlighted:



We now need to make the changes/additions/removals necessary. We have the easy job of just changing a cut value. If we were going to include a talkto that wasn't part of the original instance we'd need to click on the "Y/N" button (it must be highlighted in order for the talkto to be included as part of the instance) and edit the "Default_value" column to the appropriate cut value. If we were removing a talkto that was originally part of the instance we'd simply need to click on the "Y/N" button once to un-highlight it. But let's make the change to the dijetMassEta, making the 2.2 a 2.0 and then click on "Done". Note that the "Name" and "Menu" columns should never be edited, and that the "Next Talkto" option at the bottom right should never be chosen since we can't add a talkto to a class at the level of editing an instance.

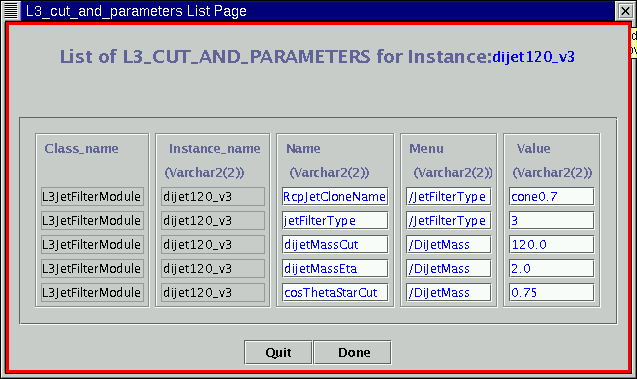

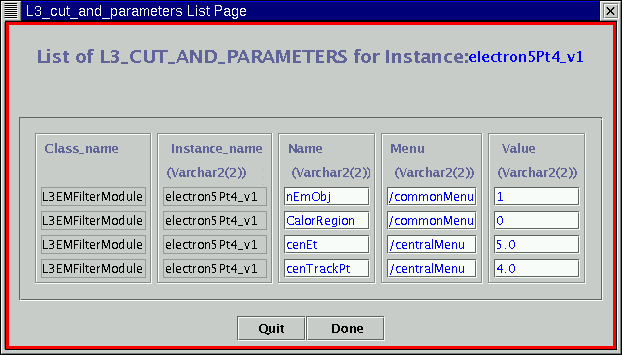

After we click on "Done" the "L3_cut_and_parameters List Page" will appear listing all of our talktos with their values:



The dijetMassEta cut has been correctly changed. This is an opportunity for us to fix any typos that we may have introduced, though (as always) the "Name" and "Menu" columns should not be edited, only the cut value. We can quit if we're unhappy with what we've done, or we can click on "Done", to go forward with it. We are brought back to the "L3_Instances page" except now our new instance name is in the box on the right side:



We have another chance to quit, or we can click on "Done" and will be back to the L3 Page, where the "Insert/Edit INSTANCES" button will be highlighted. This is our last chance to back out - we can click on "Quit". If we like our new instance, we can insert it into the database by clicking on "Done". After clicking on Commit, you should see the "ORACLE Message Window". After each line you should see an ***Oracle Commit SUCCEEDED***. I don't want to commit this example, but you can see what this looks like if you look at the Making a New Class example above.

8. Putting the trigger together:



You should now have all of the instances you will need for your trigger. This is the step where you actually can put your trigger together. Have in front of you the Classes (and versions of the Classes) that you're using in the CORRECT ORDER. Here's an example we'll use:

Instance :: Class
----------------------
globalCT_HL2 :: CT_TrackingModule_v3
twoDisp120Track2_v3 :: L3TrackFilterModule_v4
Bcharm_v4 :: L3TwoTrackFilterModule_v1

This is actually the L3_TWO_TRACK_B_CHARM_v5, but we'll pretend that it doesn't exist so I can show you how to make it from scratch since all of the instances exist. We begin from the Main Gui page by clicking on the "Create/Edit L3 Triggers" button. This will pop up the "Select Starting Point Page":

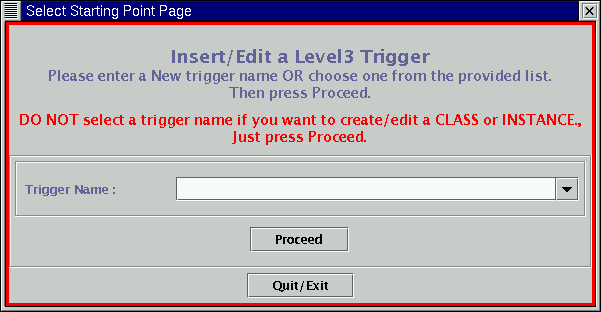

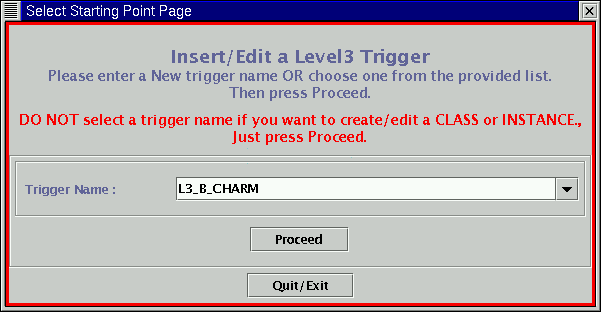

If we were editing an existing trigger we could click on the arrow down and select the trigger we want to edit from the list of all of the non-retired triggers. Since we're creating a new trigger, however, we need to type in the name. We'll call this trigger the L3_B_CHARM. Here's what the page looks like when the name has been typed in correctly. Note that I didn't have to type the version number - that's only for instances. The trigger has a separate field that the Gui fills for us automatically:

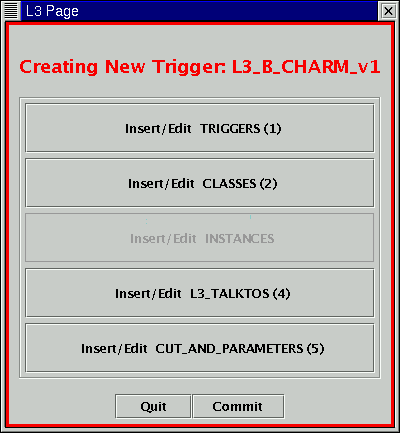

To continue we click on the "Proceed" button. The "L3 Page" will pop up and you'll notice that there are more options available than there were when we left the trigger name blank:

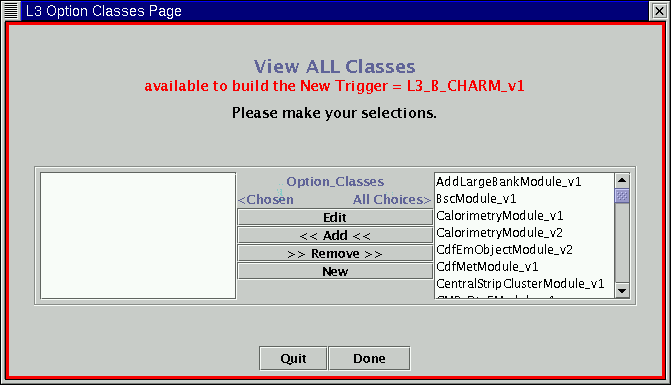

The first step for us, creating a new trigger (and it would be the same to edit) is to figure out the classes, so we click on "Classes" and the "L3 Option Classes Page" pops up:



We now need to select each class (in order) by clicking on it in the window on the right and then clicking on "Add" to bring it to the window on the left. Here's what the window should look like after we've added all three classes:



In order to continue we need to click on "Done". The Gui knows which instances are available for each version of each class so the next thing that will happen is a "L3_Instances page" will pop up for each class that we've selected and we'll be able to select the instances that we'd like. The first class that we put is CT_TrackingModule_v3, so this is the first window that pops up:

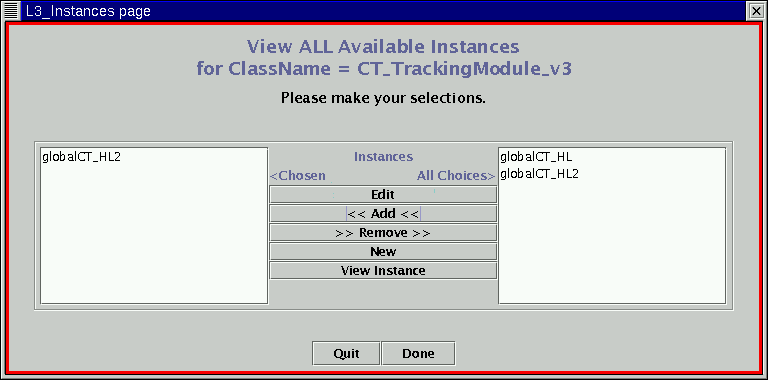

We want to select the "globalCT_HL2" instance. (note that when i made these instances I was sloppy with the version number - it makes things a pain later on!) To select it we highlight it, and click on "Add", so that it appears in the box on the left:

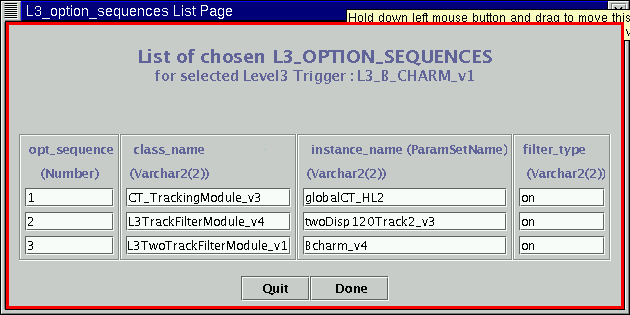

We click on "Done" and we are given the option for the next instance, and so on, 'til we have selected an instance for every Module, at which point the "L3_option_sequences List Page" will pop up and show us what we have chosen:



There may be problems with this page. We've worked to iron out the bugs in the Gui, but Donatella is consistently impressed by the creative ways we discover new problems. Sometimes if we use more than one instance for a class in a trigger (for example, in the reco trigger when we use two different clusterings for the jet cone) there will be a mistake here. Be sure to edit the "instance_name" field 'til everything is correct. It looks like what we have is correct, so we click on "Done". We go back to the "L3 Page" and we see that the classes are highlighted. We've done everything we need to do to make a trigger but click "Commit". When you commit a trigger you don't jump instantly to the Oracle Message window - there's some info that you're allowed to enter now, so the "Insert Table Data dialog" page will pop up:

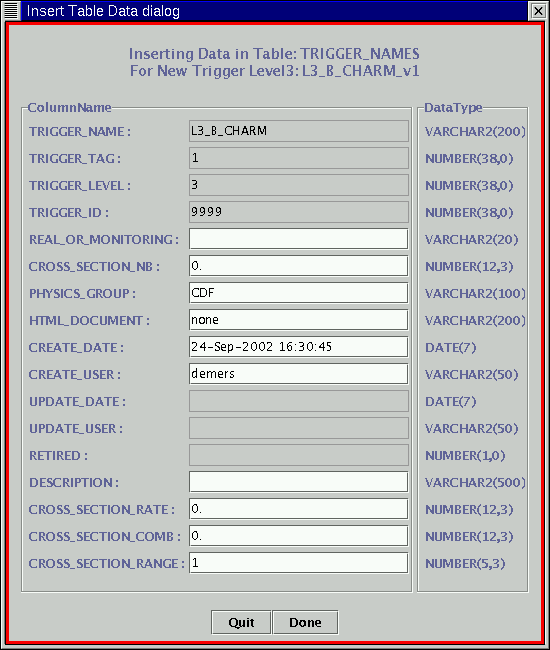

I try to always enter something in the description field. If someone has given you information for the other fields then you can enter it in. When you are finished, click on "Done", and the Oracle Message window will pop up, hopefully with lots of successes!
