August 25 2006
Qausi-equilbiurm heating of {110} rod with a fixed core (3 layers)
The core of the {110} rod has been fixed so that only the three outmost layers
can move. It was heated up step by step with the temperature interval of 100K.
At each temperature 10^6 MD steps have been performed.

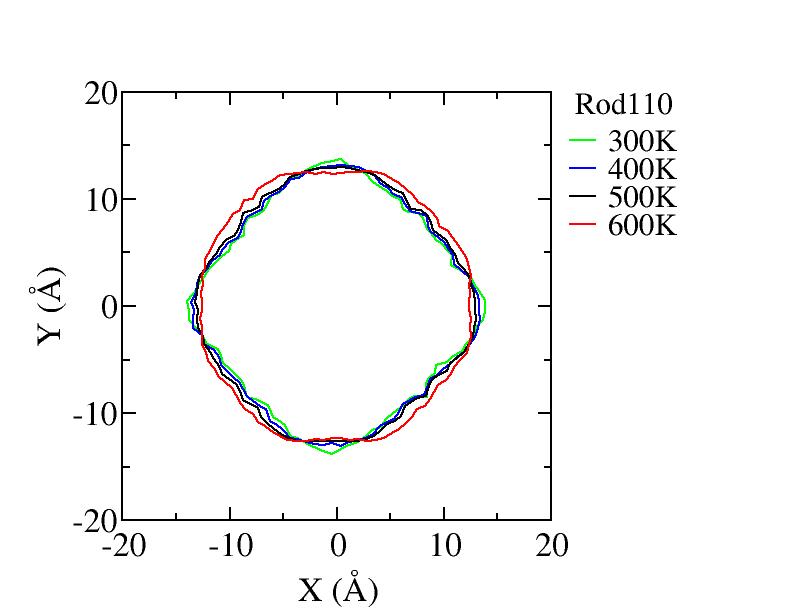

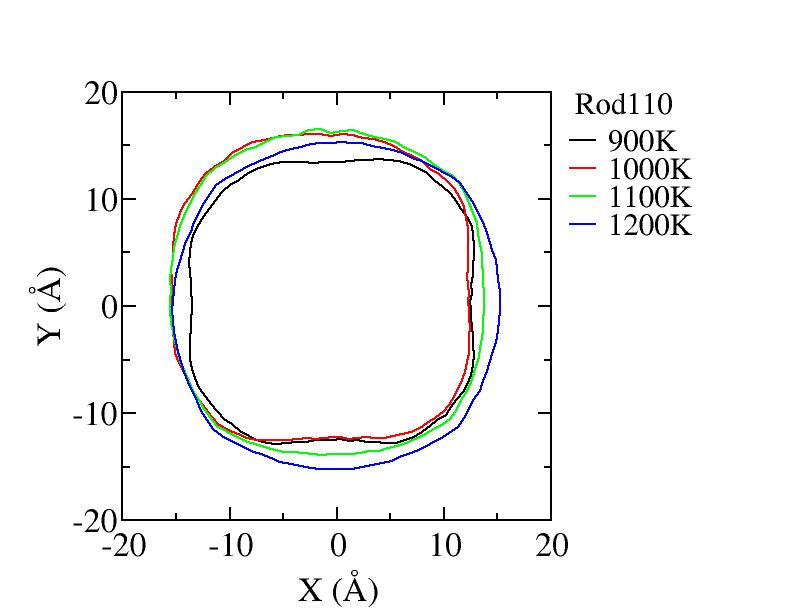

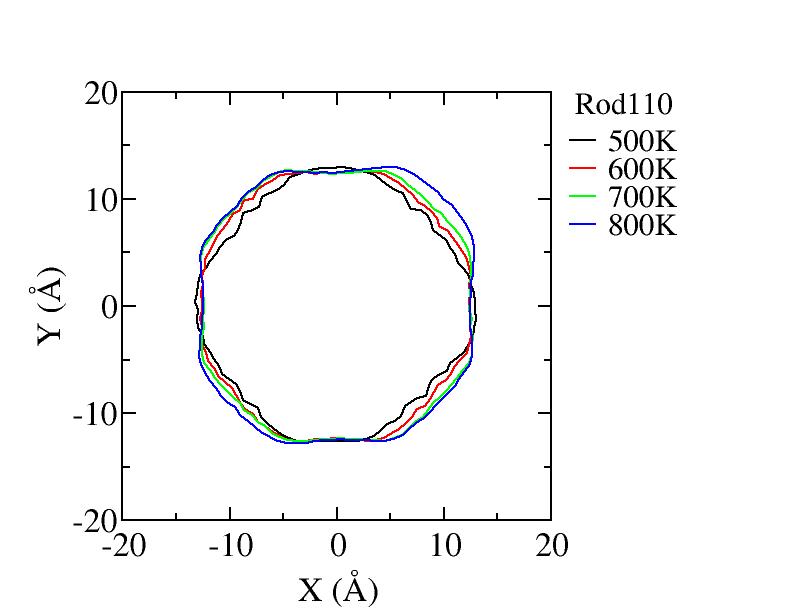

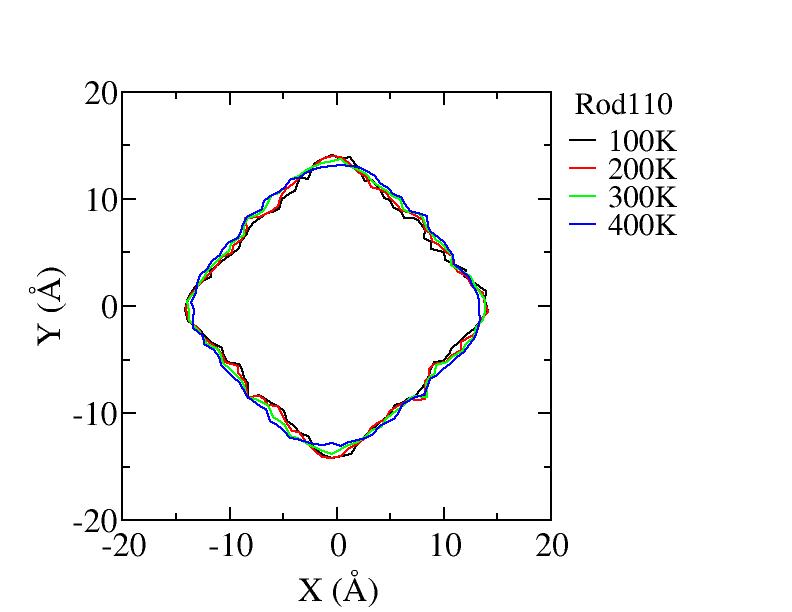

Average shapes
Surface and Cross-section pictures

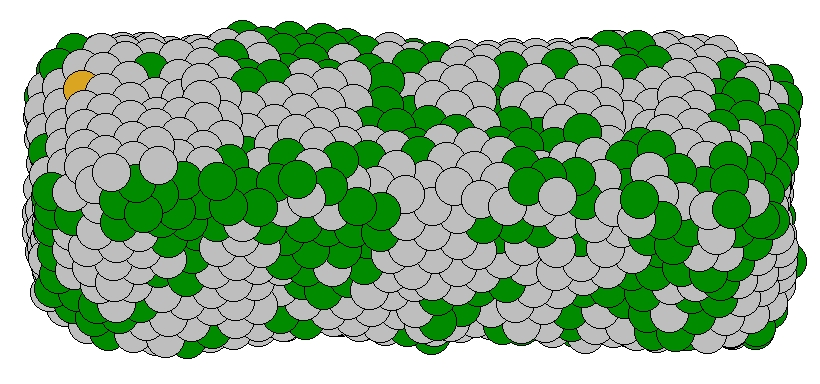

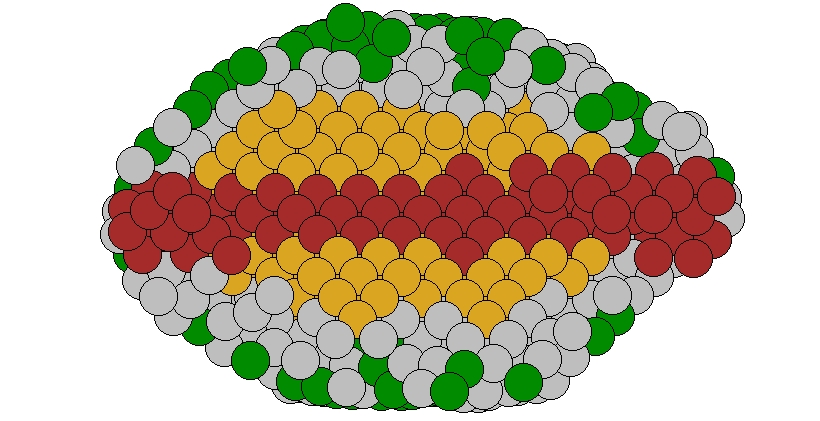

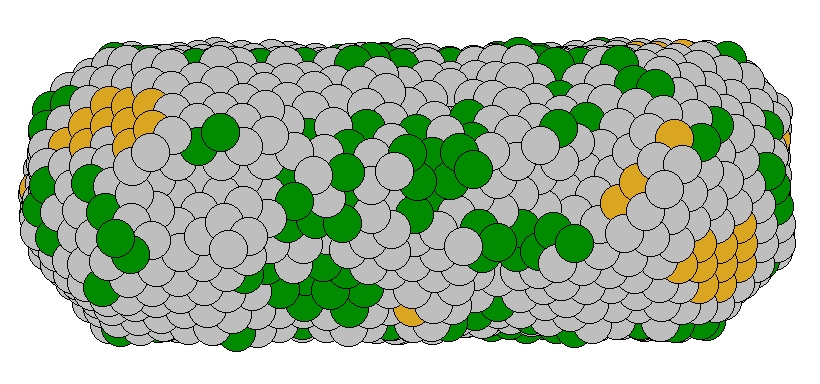

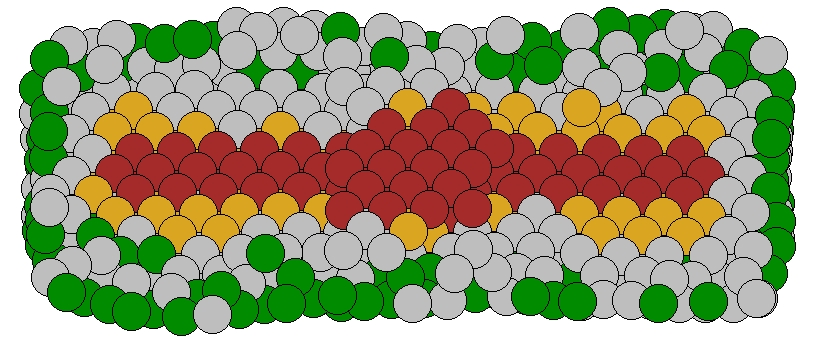

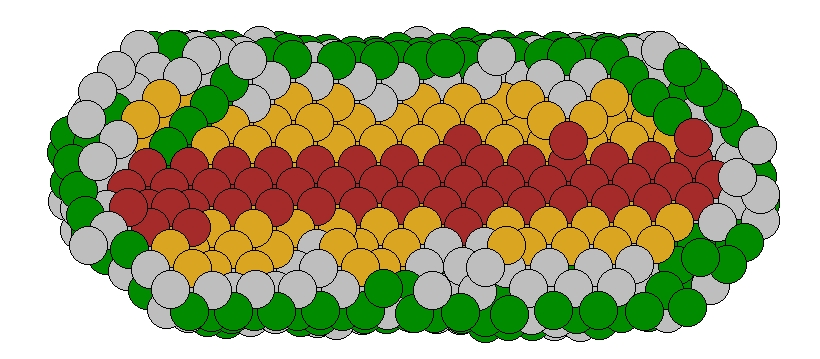

They are the last configurations at each temperature. Brown spheres represent
fixed core atoms. For surface, golden atoms represent {111} facets, green
atoms represent {100} atoms, and gray atoms are others. For interior,
golden atoms have a local fcc structure, green atoms have a local hcp
structure, and gray atoms have neither.
| T |
Surface |
Cross-section |

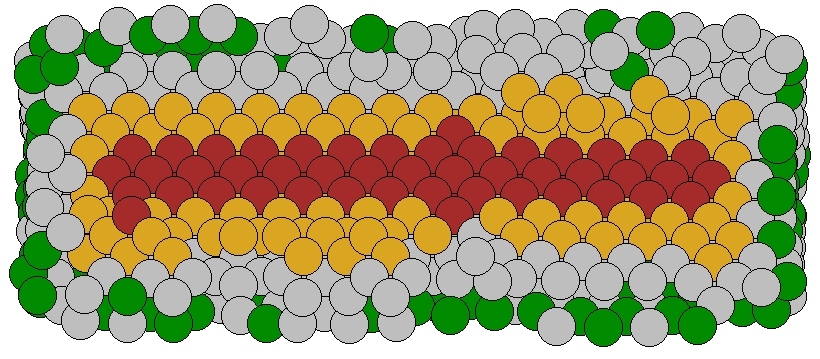

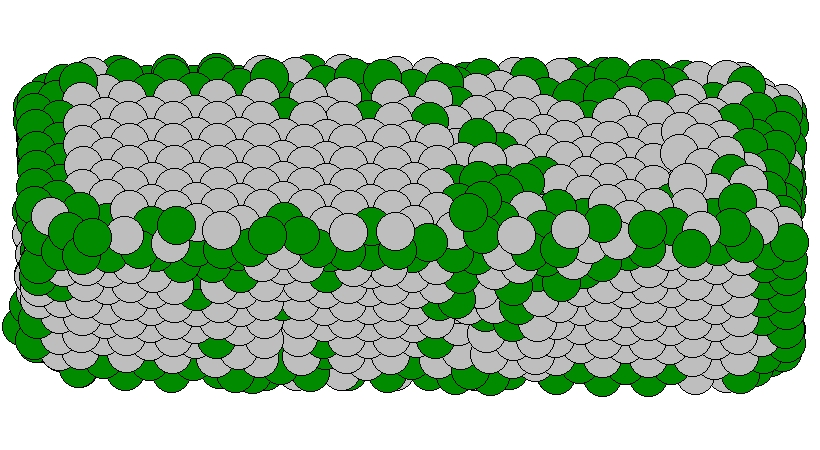

| 100K |
 |
 |

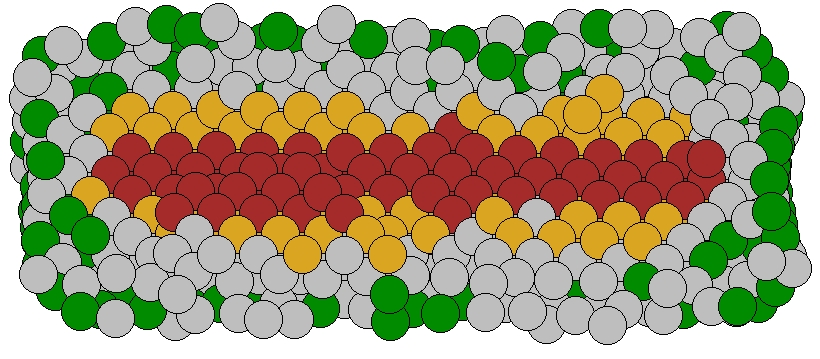

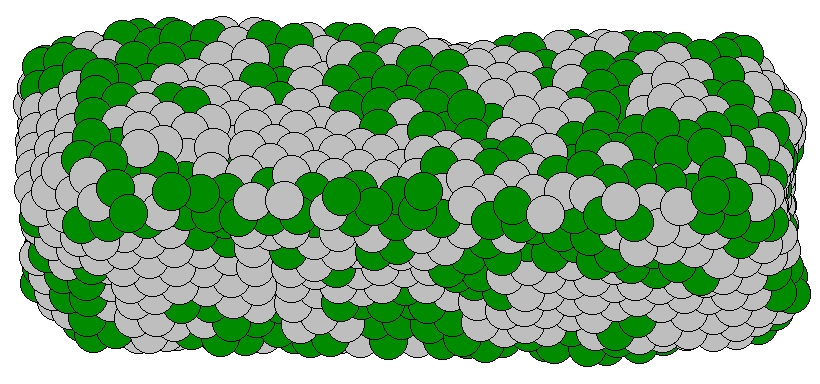

| 200K |
 |
 |
| 300K |
 |
 |

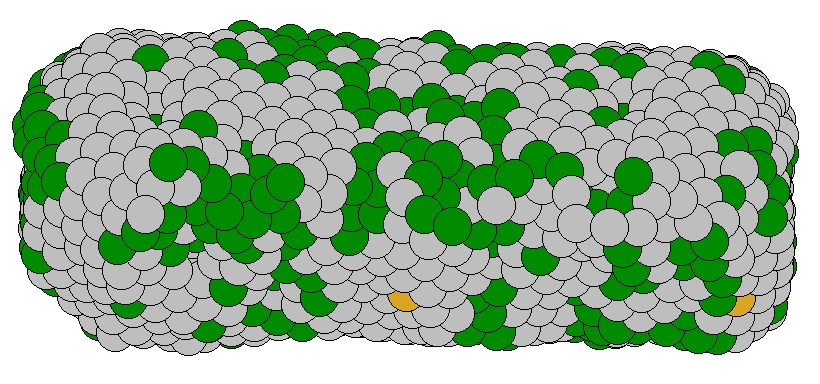

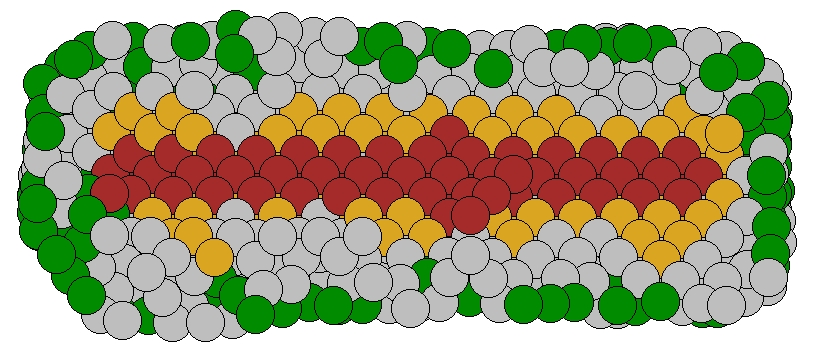

| 400K |
 |
 |
tr>

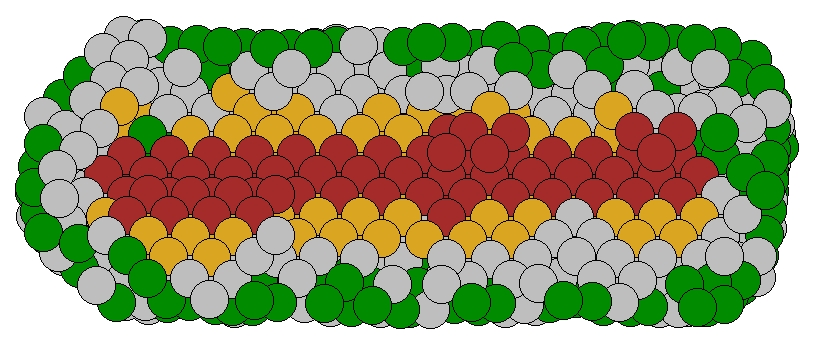

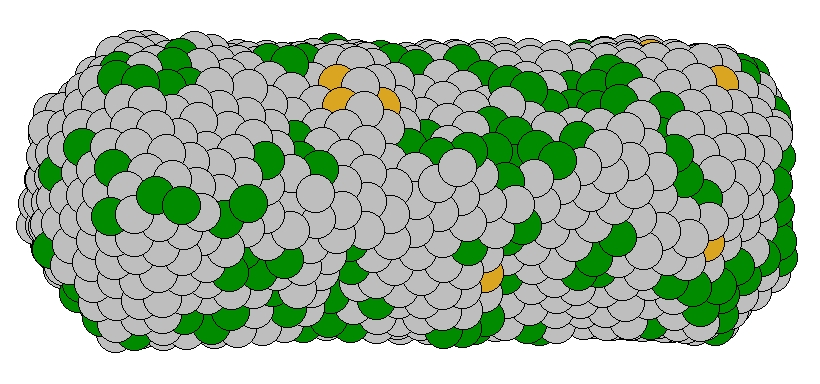

500K |
 |
 |

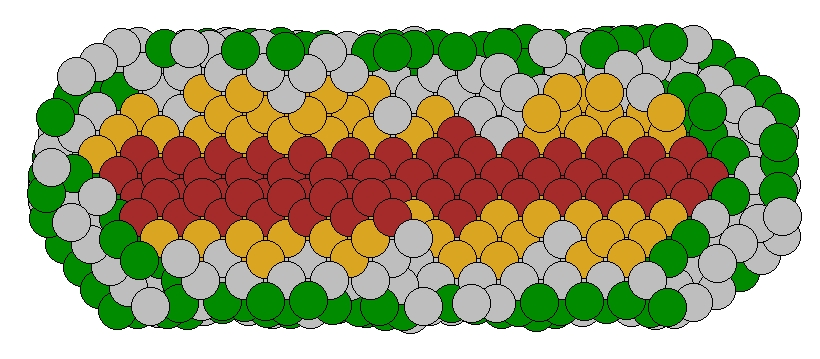

| 600K |
 |
 |

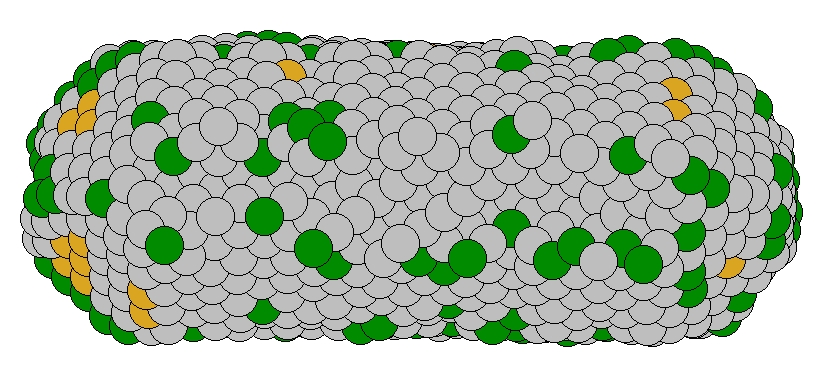

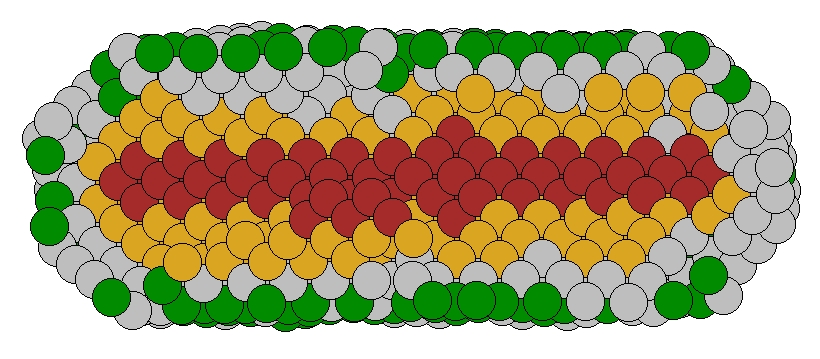

| 700K |
 |
 |

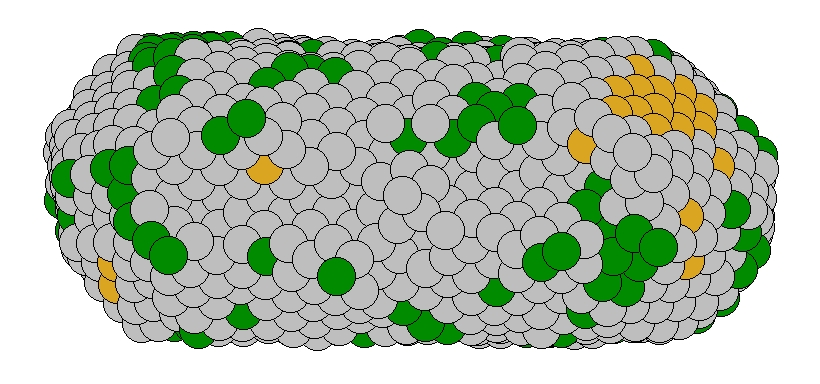

| 800K |
 |
 |

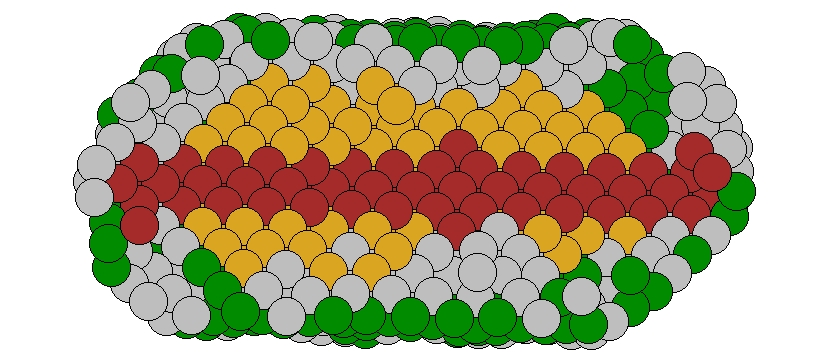

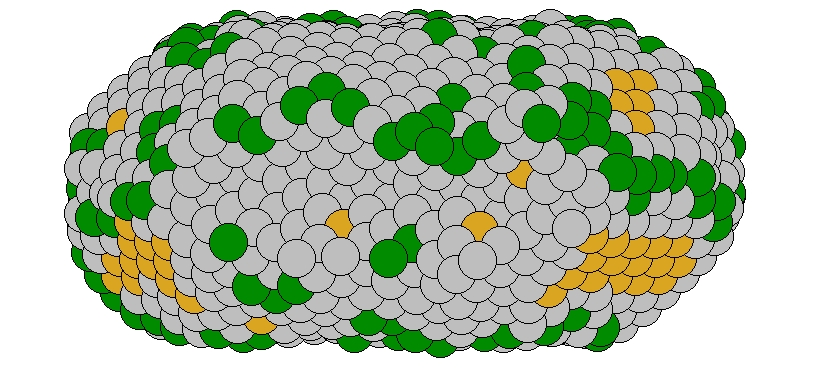

| 900K |
 |
 |

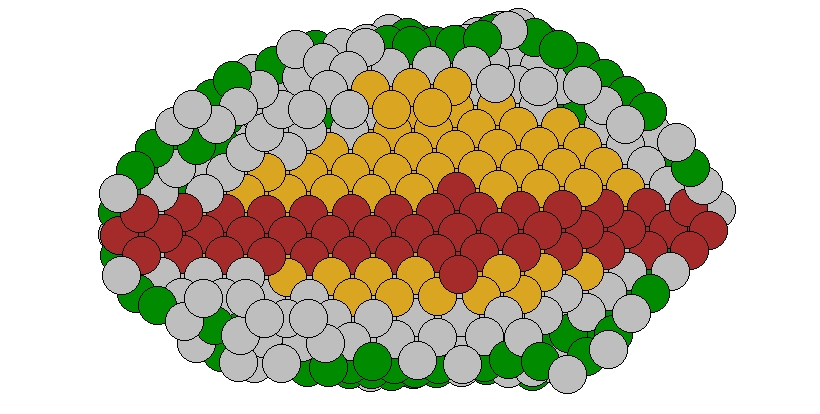

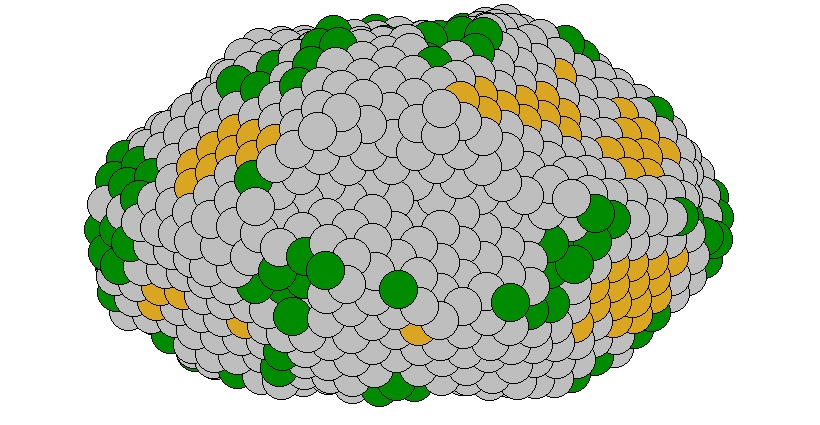

| 1000K |
 |
 |
| 1100K |
 |
 |

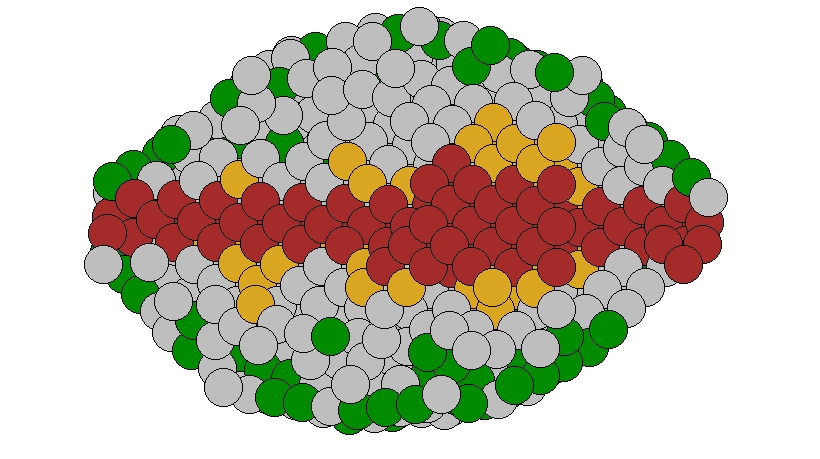

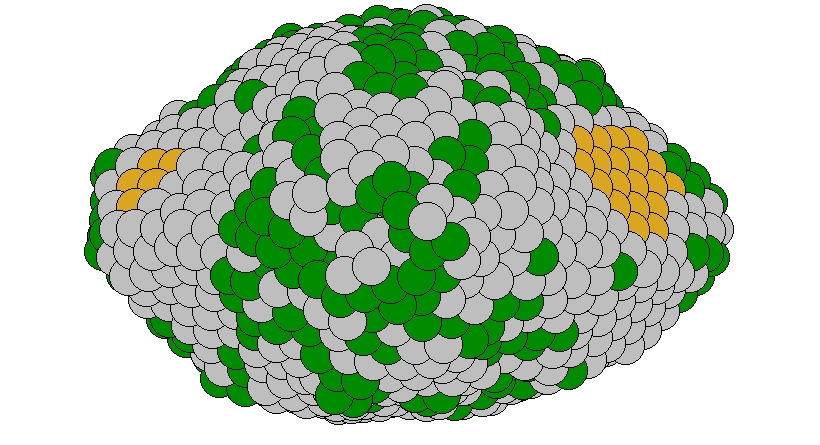

| 1200K |
 |
 |
