I have performed a simple scaling test on BlueGene/P:

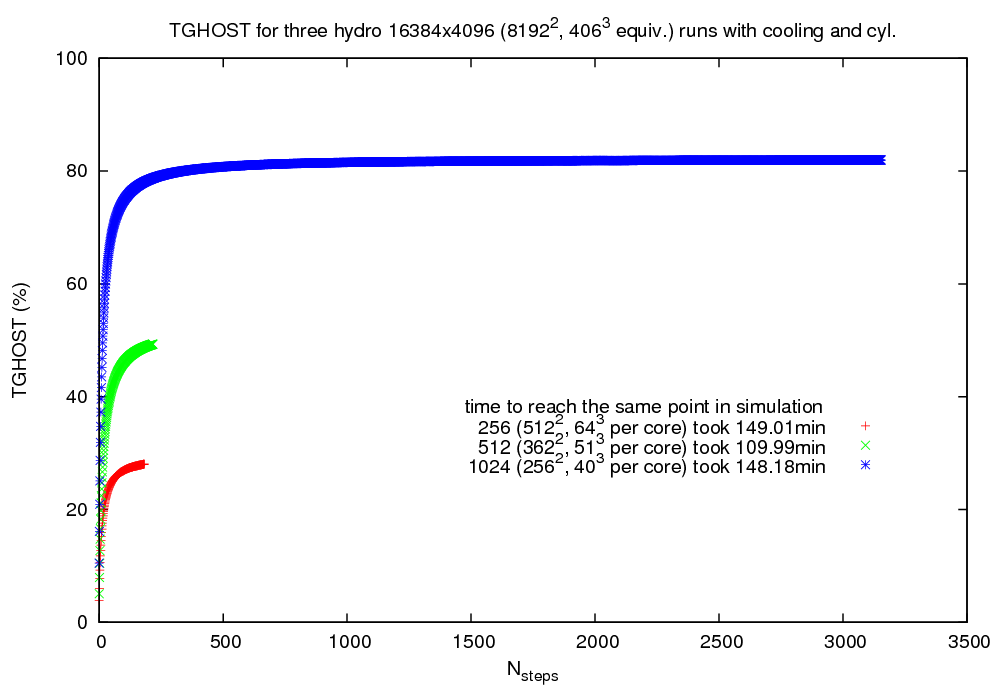

Below is a plot of TGHOST, the time spent populating ghost cells.

We see several things:

1. The 512 run was faster than the 256 run, though not twice as fast (~0.74 time instead of 0.5).
2. The 1024 run was about the same speed as the 256 run.
3. The time spent on ghost increased from 28% for 256, to 50% for 512, to 82% for 1024

I was unable to launch the problem using 32 nodes/128 cores (724²/81³ per core). The master process runs out of memory when allocating q arrays. However, I was able to run it using 64 nodes/128 cores by specifying mpirun -mode DUAL instead of mpirun -mode VN. This makes the nodes act like there are 2 cores per node instead of 4, allowing more memory per core. (Update: If we comment out where, in the initial testing, the master allocates 3 Info structures, then it runs on 128.) This job took longer and had reduced TGHOST (~18%), implying that computation was the bottleneck, not communication. In table form:

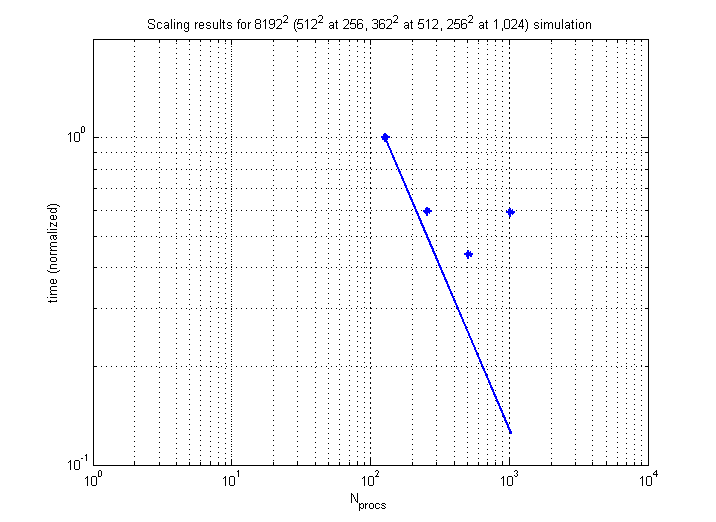

In graphical form:

For comparison, here's the results from the meeting where I talked about fixed grid scaling before, at 1, 4, 16, and 64 processors on the Rice cluster (myrinet):

The problem I ran on BG/P was a larger problem (it would be 4096² at 4, 2048² at 16, and 1024² at 64). We appear to see similar behavior, however: there is an ideal balance between number of processors and communication time, based on the problem size.

Conclusion: I anticipate we can expect to see an improvement on BG/P over bluehive on large problems if we run at ~50³ cells per core. The main benefit of BG/P in my mind right now is that no one is using it. There are 4,096 cores total, allocatable in blocks of 256. This means that getting the best anticipated performance, the maximum concurrent number of jobs (using all 4 cores per node) is

Finally, this problem size is ~1.78x larger than my R_1536 run, which was 12,288 x 3,072 (6144² / 335³, vs. 8192² / 406³). That simulation took roughly 2 months to run with base+2 levels of AMR. The 512 run was on track to finish the present simulation in perhaps the same time (less than 60 days). Note that BG/P's cores are 1/3rd slower than bluehive's, so we would expect the 256 run to be somewhat on par with a 64 core job on bluehive considering the increased amount of communication on 256 vs. 64 cores.

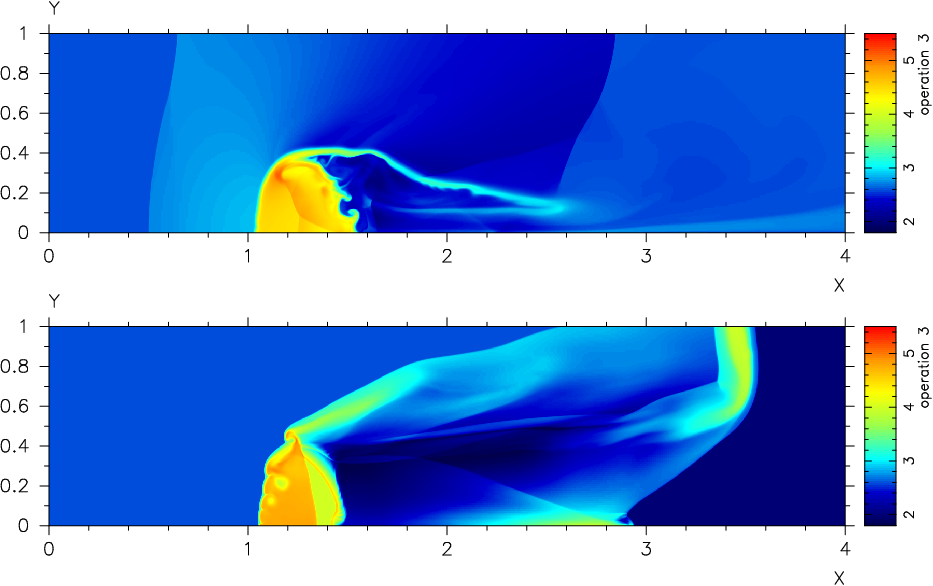

Why do these look different?

We know that the short answer is, because of the location of the bow shock, the bow shock stand-off distance. Why should that matter?

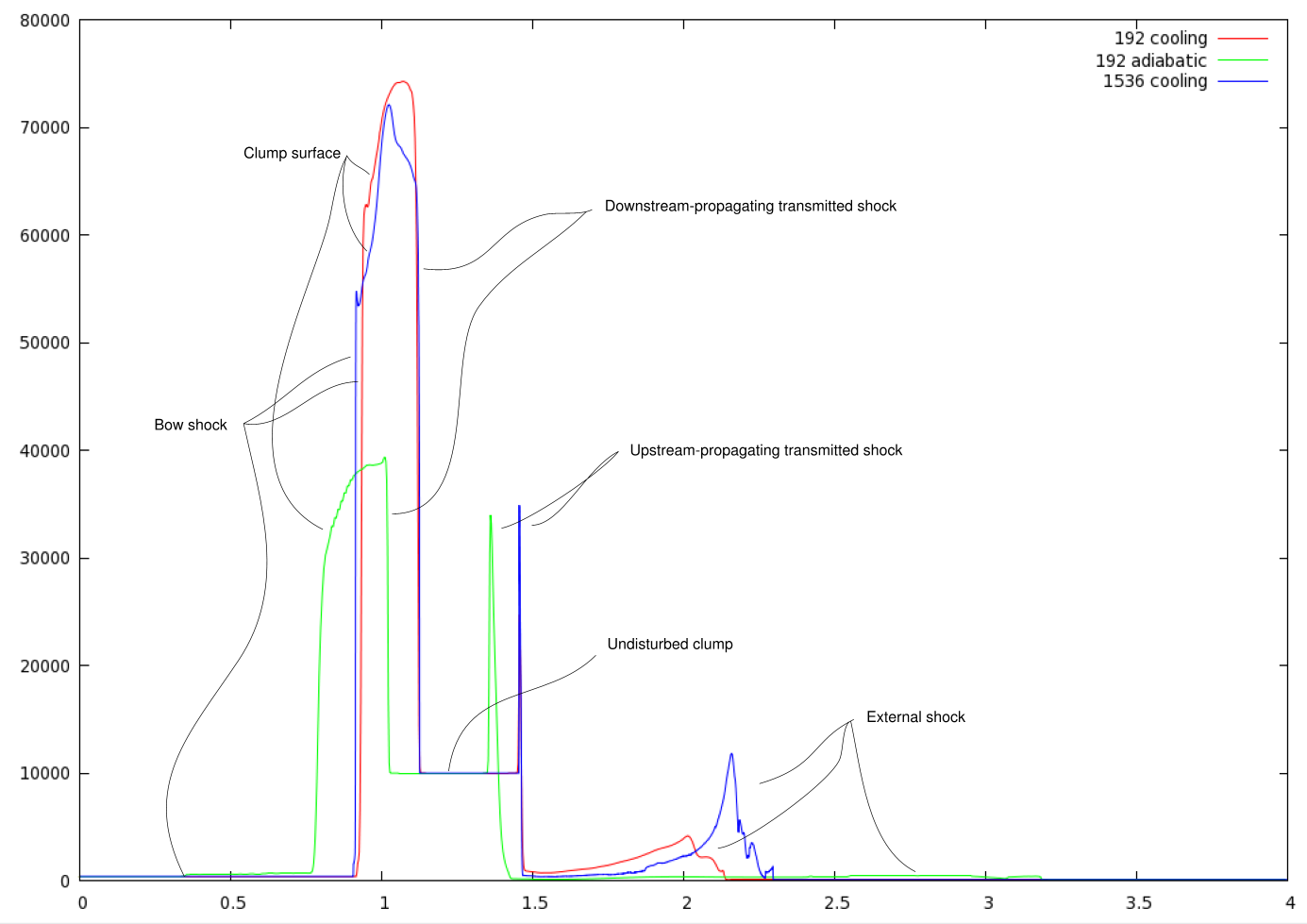

It matters because of the velocity gradient between the bow shock and the clump. Here is a plot on-axis of density:

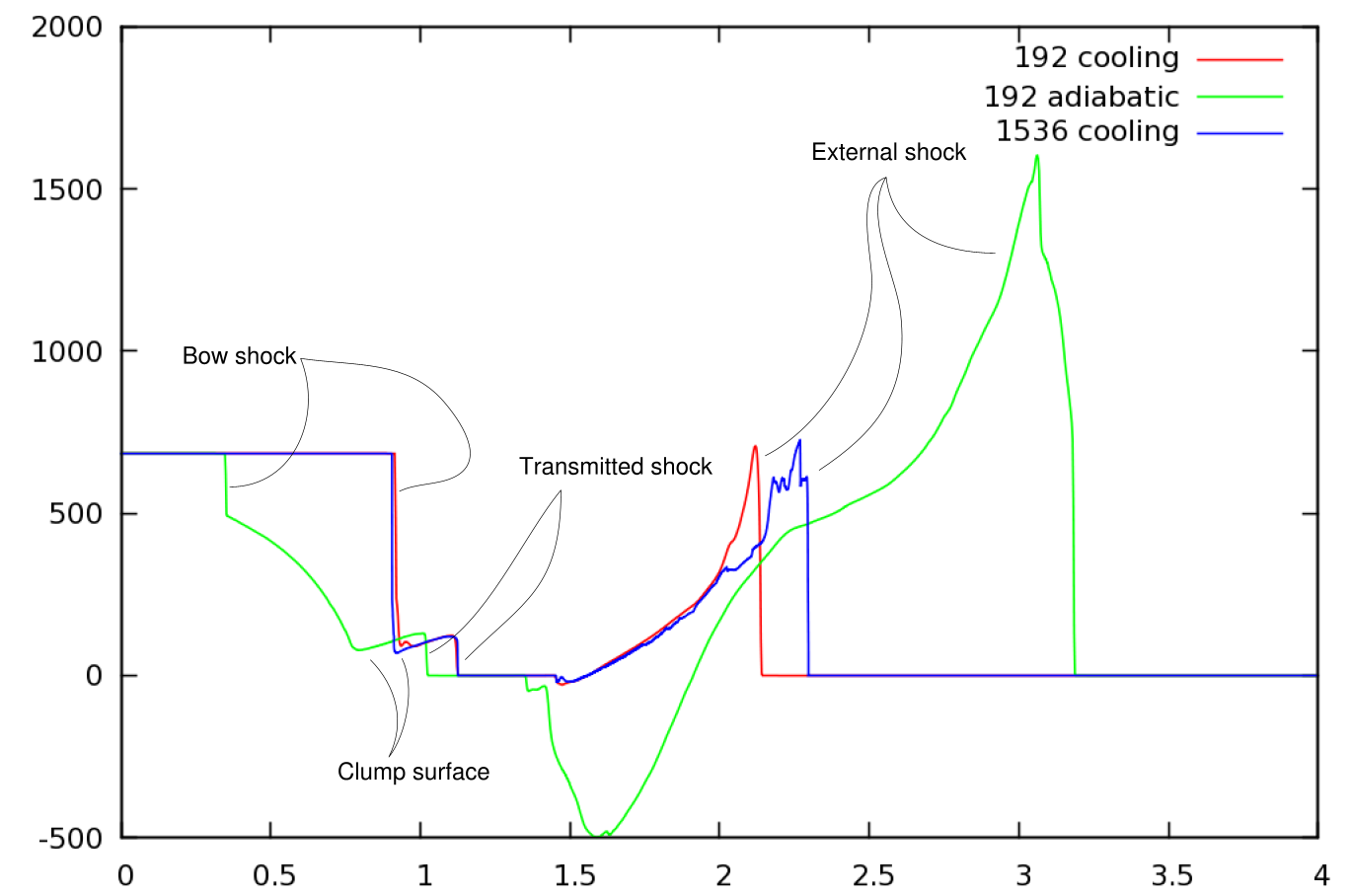

And here is a plot of velocity on-axis, where it's easier to see the adiabatic bow shock:

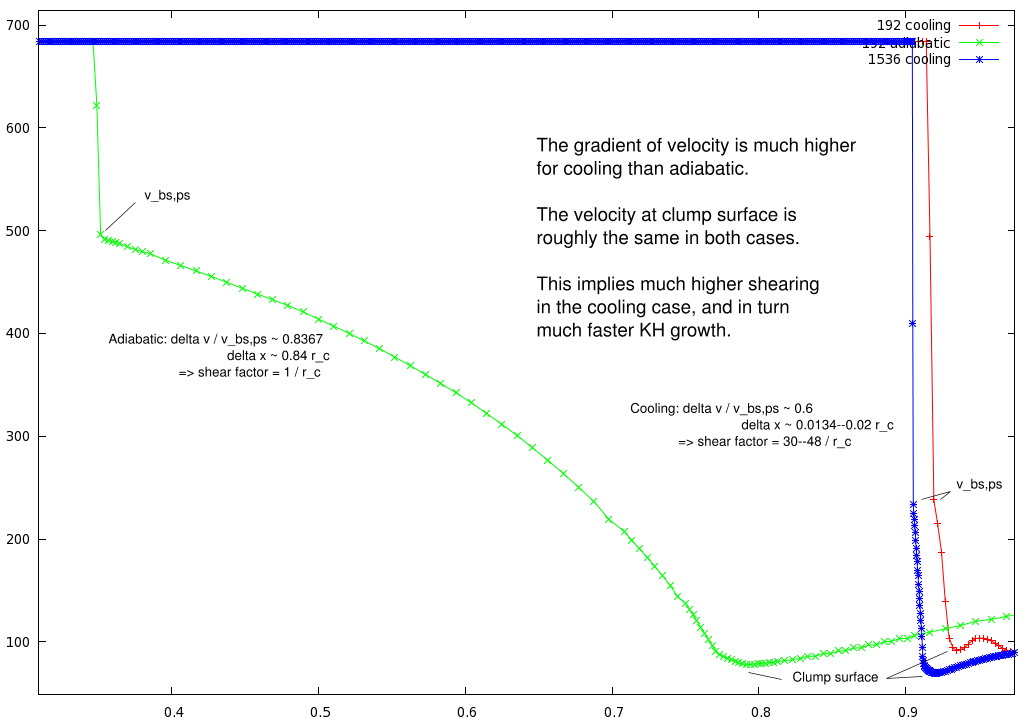

We can examine the velocity shear if we zoom into the bow shock/clump surface region:

I haven't looked enough to find an analytic expression involving the shear magnitude relating to KH growth, though I'm sure one exists. Regardless, this answers the question: the greatly increased shearing at the clump surface drives much faster-growing KH modes.

Something else to note is that when considering the growth of KH at the clump surface, people use

where Χ is the density contrast between clump and ambient preshock material, k is the wavenumber and v_relative the relative velocity bewteen the postshock material and the clump. This velocity is typically assumed to be the postshock velocity. But as we can see from the above images, the velocity is reduced by a factor of 0.6--0.8 by the time it reaches the clump surface. This therefore implies a longer KH growth time by a factor of 1.25--1.67, whereas typically it's assumed that t_KH ~ t_cc, the cloud-crushing time. Considering that we see KH growth in a time much less than t__cc, this means that the shearing strength plays a large part in the growth times of the KH instabilities.

A similar argument applies, involving density shear (stratification), for the greatly reduced RT growth times that we observe.

In general, the prescription for using HYPRE to solve a problem will be the same. HYPRE will solve a problem of the form

where A is a matrix, b the solution vector, and u the source vector. To get your physical equation (Poisson's equation for self-gravity; the diffusion equation for radiative transfer in the diffusive limit; etc.) into this matrix form, you discretize it and shuffle the components around a bit. Then, in order to use HYPRE to solve a problem, you do the following:

1. Specify the matrix elements of A for each point in the grid.
2. Specify the vector elements of u for each point in the grid.
3. Specify the locations of the matrix elements via a "stencil" for each point in the grid. This is how different subdomains (or AMR levels) communicate information. Stencils indicate what cells border each other physically, and what the weighting should be (the weighting will be different across AMR levels).
4. Specify boundary conditions as additional elements in the matrix A and vector u.

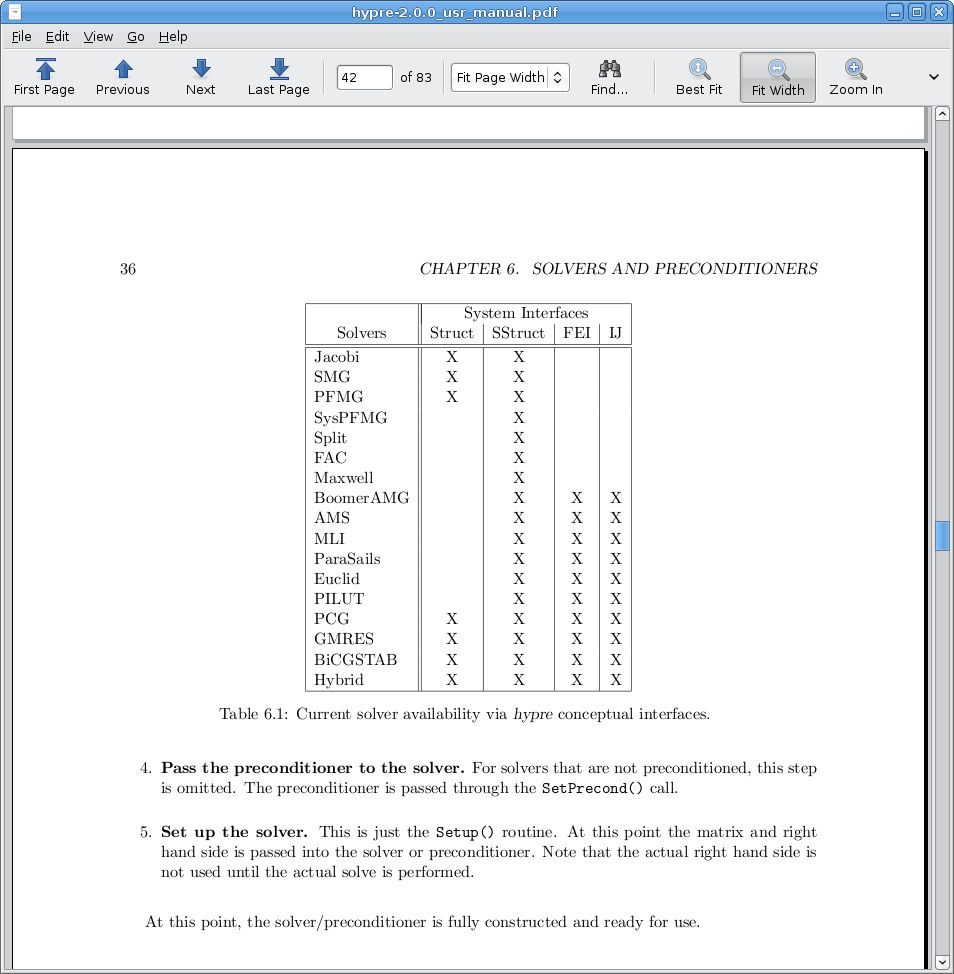

This information needs to be specified by every processor for every grid it possesses. Once this is done, a particular solver is chosen from the list,

Then the black box thinks about it for awhile and returns something in the solution vector b. The user then must extract the data from this vector and put it back into the state variable q in one of the components labeled as being for Elliptic Variables. The variable update (e.g., updating the velocity and energy based on the gravitational potential φ for self-gravity) is done elsewhere.

At present, the effects of self-gravity are applied at the same time as the other source terms. I'm hoping this will be sufficient and that we won't need to do a separate update just for self-gravity.
