November 11 2002
Curvature of 603 atoms with quenched configurations at different
temperature levels
The configurations used on November 07
2002 have been quenched by conjugate gradient minimization method to
eliminate the thermal noise. The curvatures of these configurations have
been calculated exactly as those of November
07 2002.
Averages of curvature

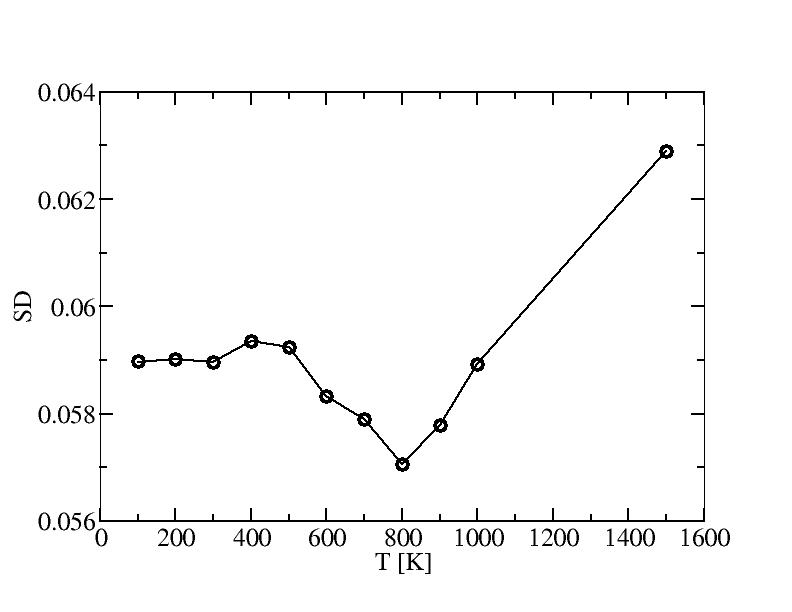

Standard deviation of curvature

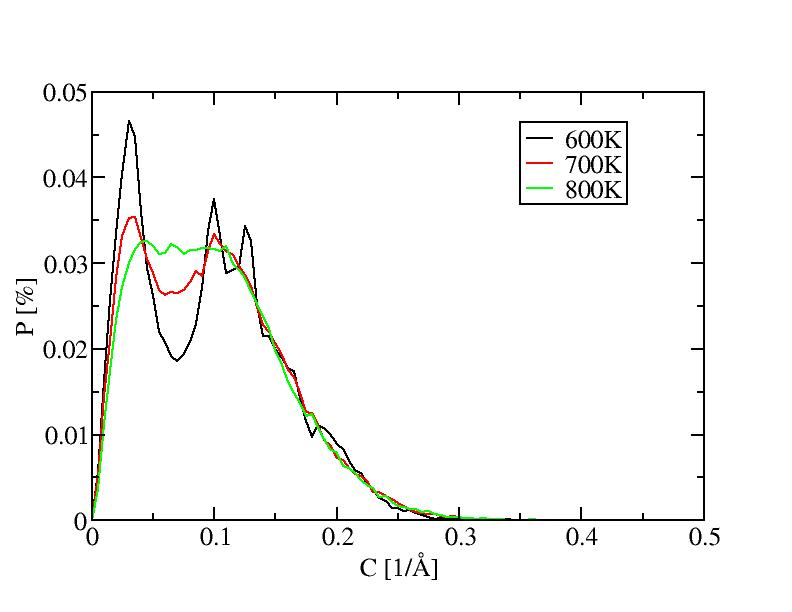

Comparison of curvature distributions at 600K, 700K, 800K
Curvature distributions at different temperatures
The data files of all temperature levels can be downloaded here
to achieve more comparisons on the same plot.
1) 100K
2) 200K
3) 300K
4) 400K
5) 500K
6) 600K
7) 700K
8) 800K
9) 900K
10) 1000K
11) 1500K
